Each 40HQ container could load 18 sets of container houses, optimized for logistic efficiency.
High installation efficiency: Each container house could be easily installed by two people within just one day.
Providing a low price, reliable overall quality, and extremely high cost performance.
The size of the unit could be fully customized according to your specific project requirements.
Equipped with both free drainage and external drainage systems to efficiently prevent water accumulation.
| PRODUCT SPECIFICATION SHEET | ||
|---|---|---|
| Size | 10FT / 20FT / 40FT (Customized Available) | |
| Parameter Indicators | Fire Resistance | Class A |
| Wind Resistance | 0.50 kN/m² | |
| Seismic / Service Life | Level 8 Performance / Over 35 years | |

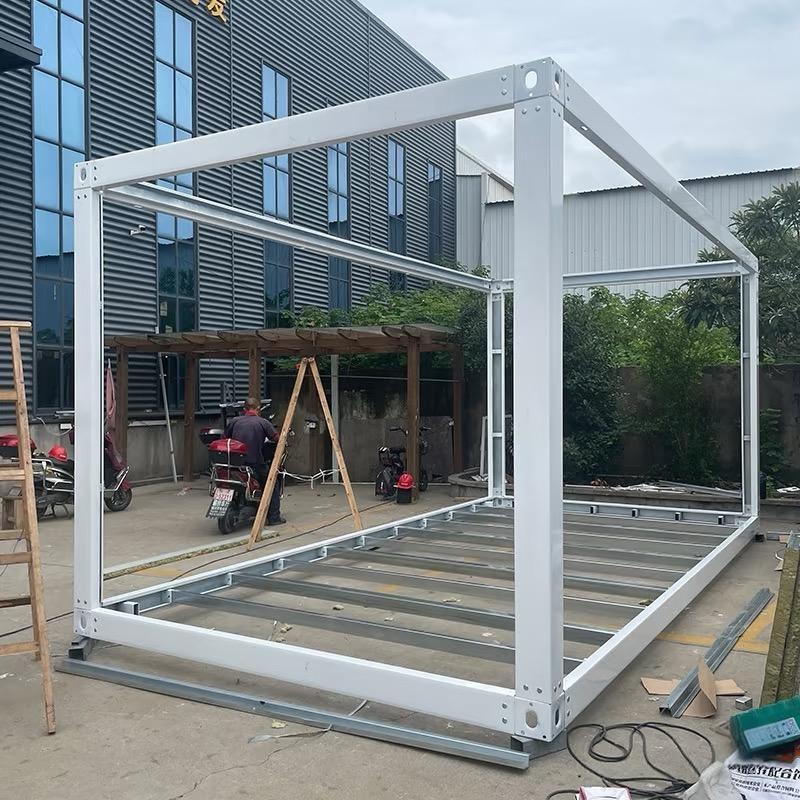

| Main Frame Structure | Material Treatment | Galvanized formed beam, Electrostatic spray paint treatment (Traffic White, thickness ≥ 80 μm) |
| Bare Steel Thickness | 2.5mm / 2.25mm / 1.95mm / 1.75mm (±0.01) | |
| Top & Bottom Beams | Long & Short Beams: Galvanized beam (width 160mm) | |
| Steel Column & Bolts | Column: 160mm x 160mm; Bolt: High-strength carriage bolt | |
| Turning Accessories | 160mm x 160mm, Actual Thickness: 3.5mm / 3.0mm (±0.01) | |
| Square Tube Specs | Chassis Purlin | 50*100 and 20*40 galvanized square tube, Actual Thickness: 1.0mm - 1.2mm (±0.01) |
| Top Purlin | 50*50 / 40*60 / 40*40 galvanized square tube, Actual Thickness: 0.8mm - 1.4mm (±0.01) | |
| Door Frame Pillar | 20 * 40 galvanized square tube, Actual Thickness: 1.0mm / 0.7mm (±0.01) | |

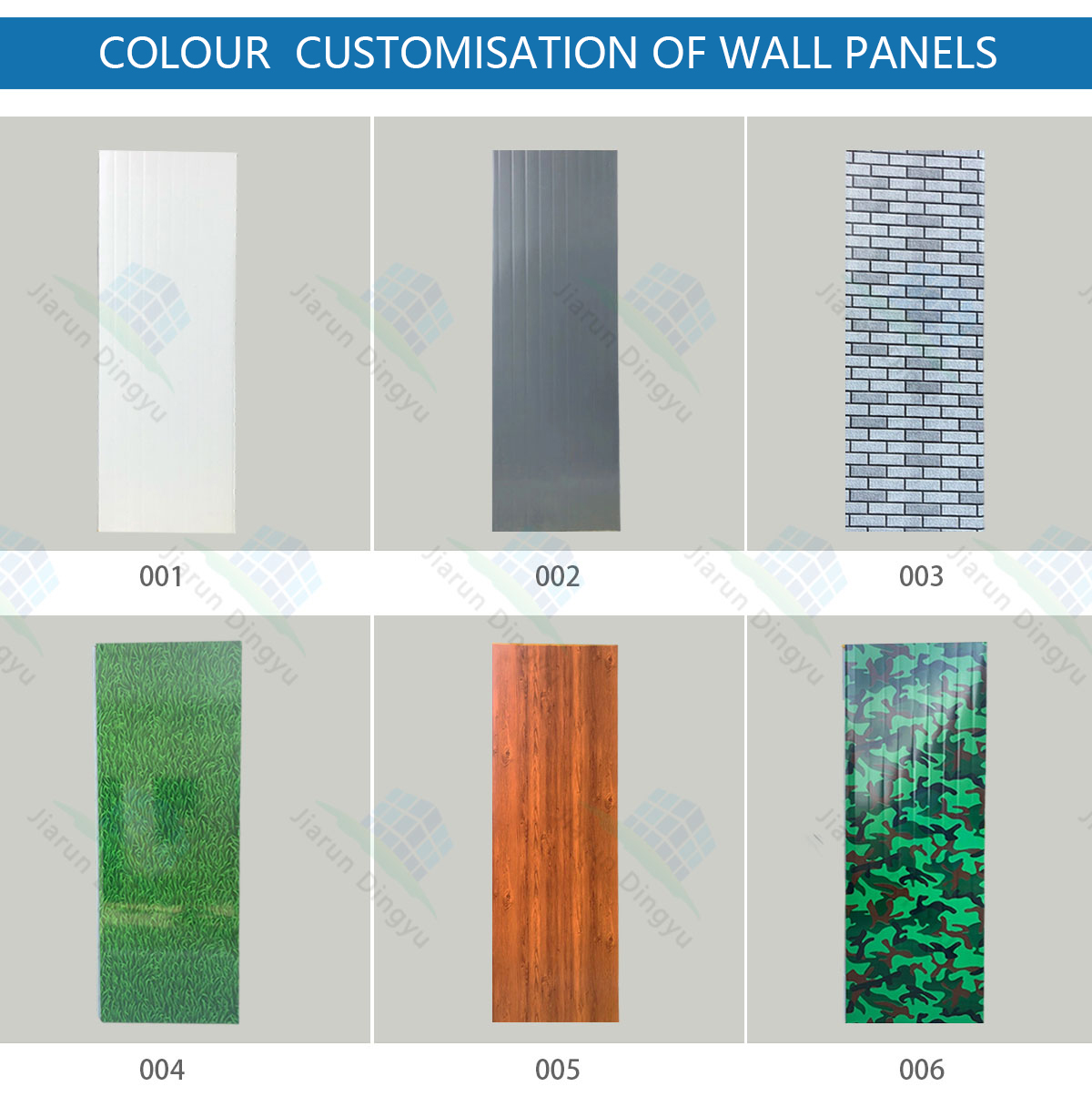

| Wallboard | 50mm / 75mm / 100mm foam board, rock wool, or silicon rock board (0.25mm/0.30mm/0.4mm steel plate) | |
| Door | Steel door, W930mm x H2035mm, 0.3mm/0.25mm steel plate (±0.01) | |
| Window | Sliding window, W925mm x H1200mm, single glass | |
| Floor & Roof Tiles | Floor: 18mm fireproof fiberglass board. Roof Tiles: Thickness ≥ 0.40mm | |
| Insulation & Ceiling | Ceiling Tiles: Thickness ≥ 0.20mm. Thermal Insulation: 50mm glass fiber insulation cotton | |

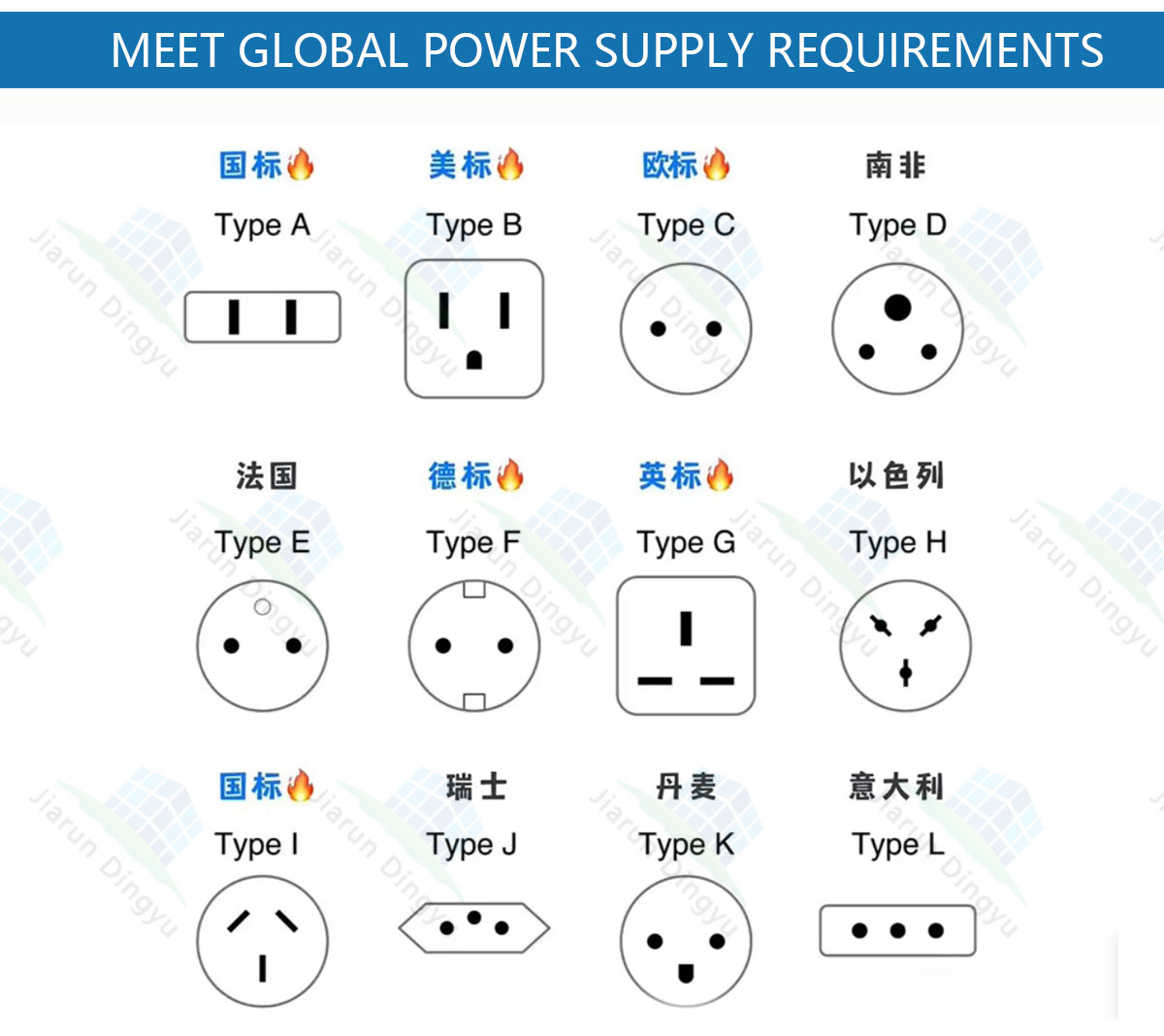

| Circuits & Materials | Adapt power supply according to regions. Includes all screws, structural adhesives, etc. | |
