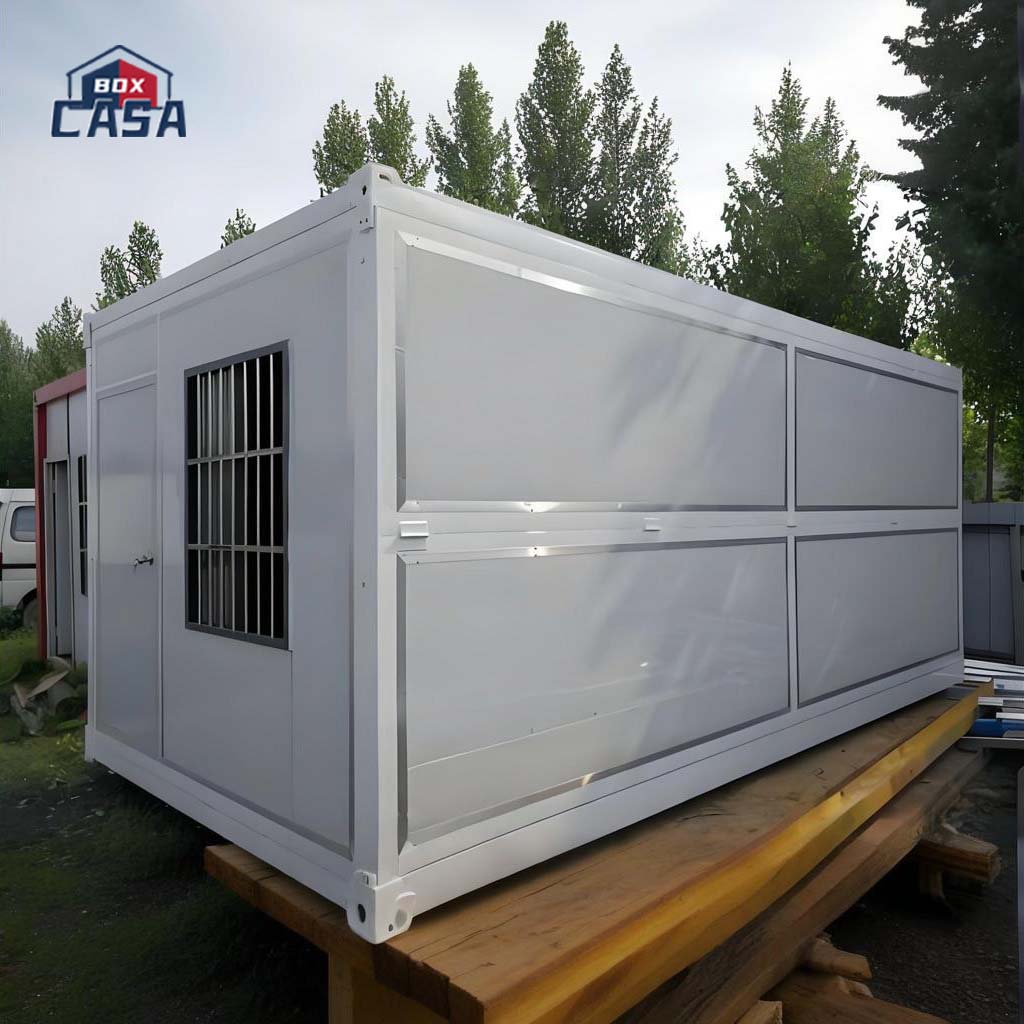

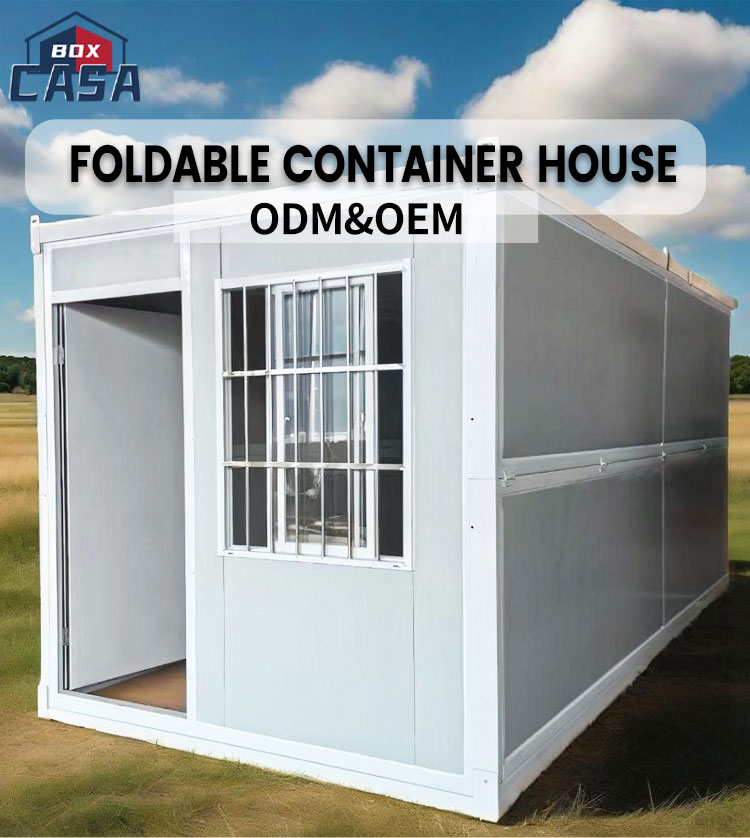

| Foldable Container House Description (Model FC-02) | |||
| External dimensions | Standard Size：L5800*W2460*H2430mm | ||
| Internal dimensions | L5640*W2320*H2380mm | ||
| Folded dimensions | L5800*W2460*H320mm | ||
| Weight | 0.9T | ||
| Loading Quantity | 14 folding units can be loaded into a 40HQ container | ||
| Foldable Container House Technical Indicators | |||
| Technical Parameters | Roof Load | 1.0 KN/m² | |
| Walkway Load | 4.2 KN/m² | ||
| Wall Pressure | 0.5 KN/m² | ||
| Fire Resistance | Grade A | ||
| Seismic Resistance | Grade 8 | ||
| Wind Resistance | Grade 10 | ||
| Service Life | 10 years | ||

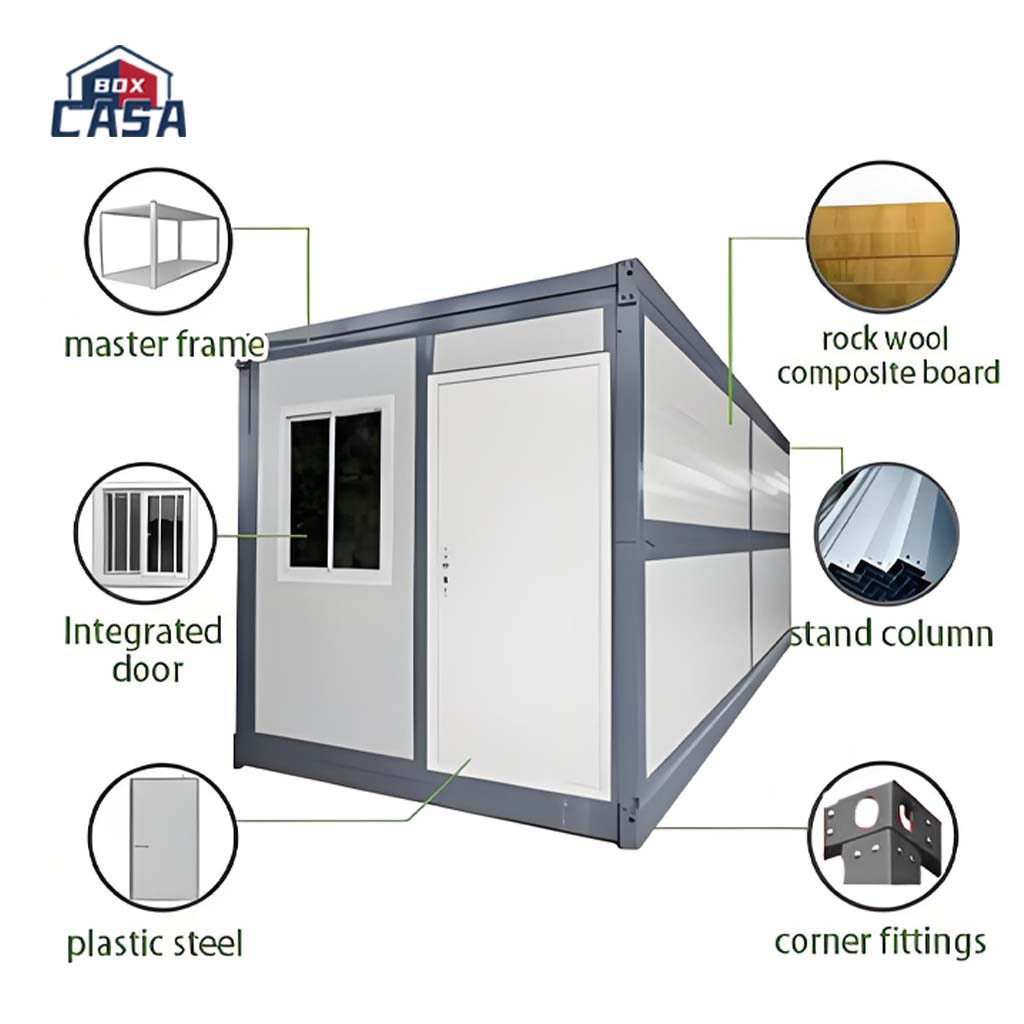

| Main Frame | Top Girder | Galvanized square tube 60×80×1.5mm (both sides) | 2 pcs |
| Bottom Girder | Galvanized square tube 60×120×1.5mm (both sides) | 2 pcs | |
| Top Beam | Q235 Galvanized square tube 30×50mm×1.5mm | 5 pcs | |
| Front and Rear End Girder | Galvanized square tube 60×80×1.5mm (both sides) | 2 pcs | |
| Sidewall Frame | Galvanized P-shaped tube 30×55×1.5mm (both sides) | 8 pcs | |
| Bottom Crossbeam | Q235 Galvanized square tube 60×60mm×1.5mm | 9 pcs | |
| Overall Frame Coating | Electrostatic Powder Coating / Matt Gray (1 set) | ||
| Roof System | External Roof Panel | EPS integrated panel (0.4mm) | 6 pcs |
| Galvanized flat steel | 2mm | 5 pcs | |
| Floor | Magnesium Oxide Board Floor | 1125×2315×15mm | 5 sheets |
| Wallboard (Supports Customization) | Flame-retardant EPS composite panel (Side wall) | 1080×2845mm / 0.25mm / 50mm EPS | 8 pcs |
| Flame-retardant EPS composite panel (Front/rear walls) | 950mm / 0.25mm / 50mm EPS | 966mm | |
| Window | Single-glass Sliding PVC Window | 925×930 mm, Glass Thickness 4mm (Warm White) | 2 units |
| Door | High-quality Anti-theft Door (Warm White) | 970mm*1980mm | 1 pcs |
| Electrical System | Circuit protector | 1 pcs | |
| Industrial plug and socket (5 holes) | 1 pcs | ||
| LED light | 1 pcs | ||
| Special socket for air conditioner (3 holes) | 1 pcs | ||
| Light switch | 1 pcs | ||

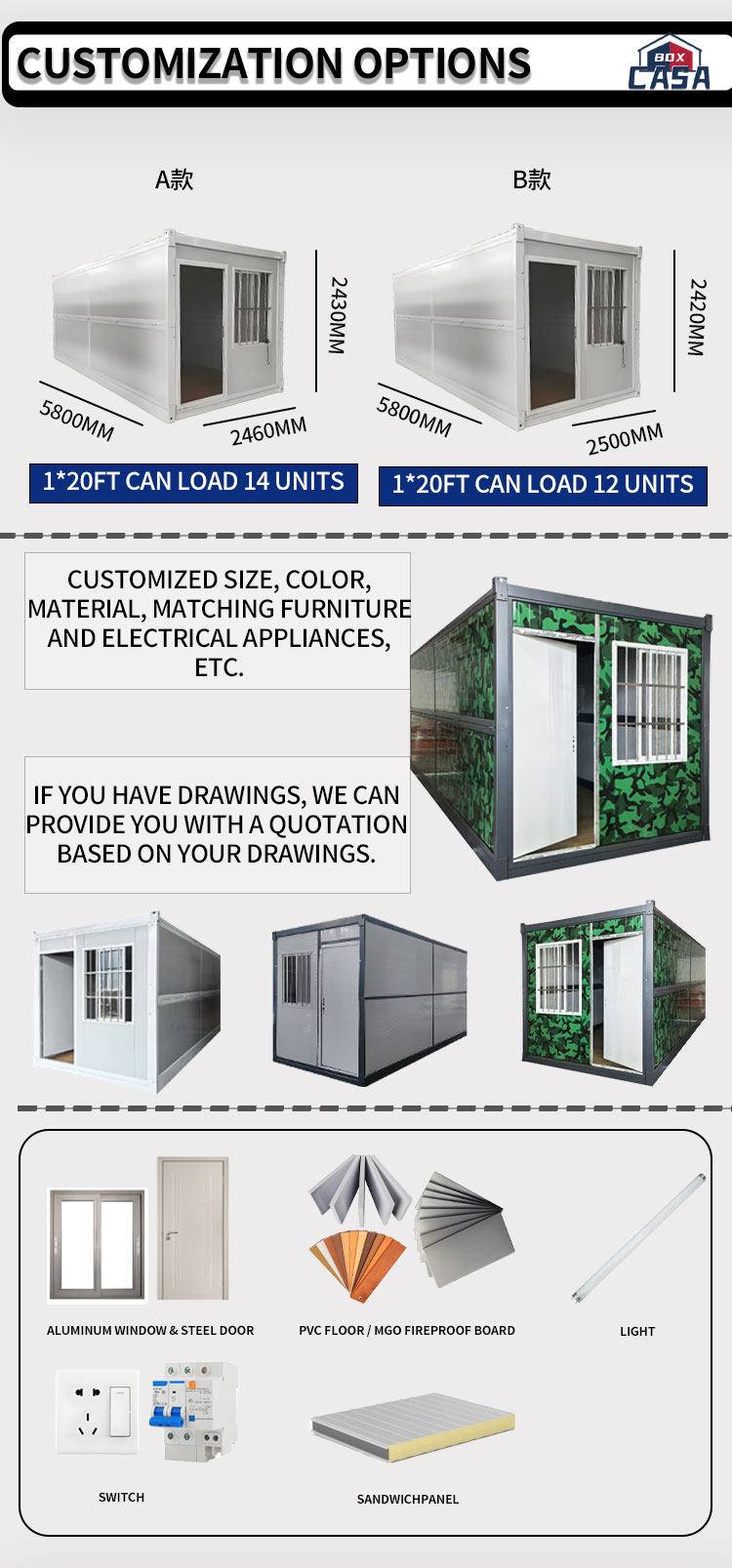

We offer two distinct configuration designs, Model A and Model B, to match diverse transportation capacities.
Customize size, color, material, matching furniture, and electrical appliances to suit your exact needs.
Have drawings? We can provide you with a customized quotation based directly on your project layouts and architectural diagrams.
Aluminum Window & Steel Door | PVC Floor / MGO Fireproof Board | Built-in Lighting
Integrated Switches & Thermal Sandwich Panels

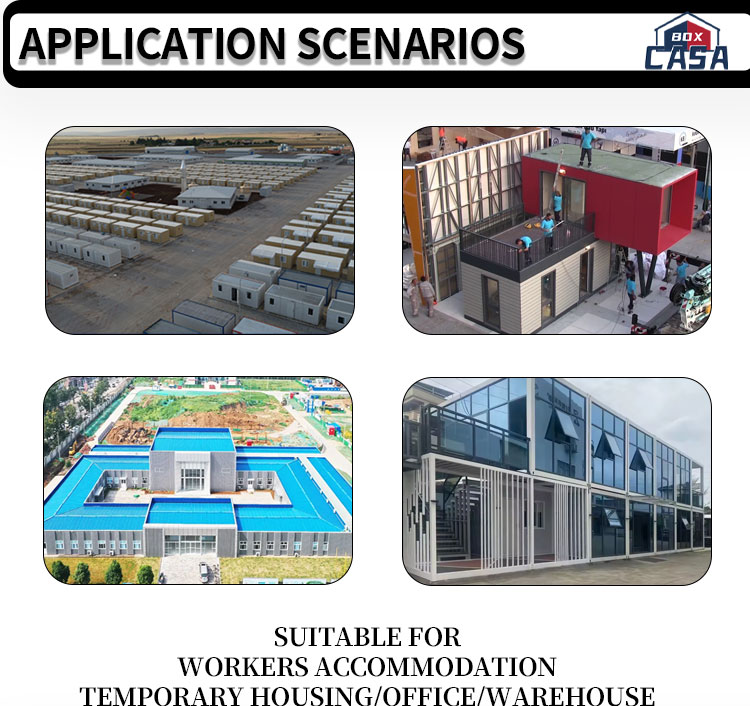

Perfectly Suitable for: Workers Accommodation | Temporary Housing | Offices | Warehouses

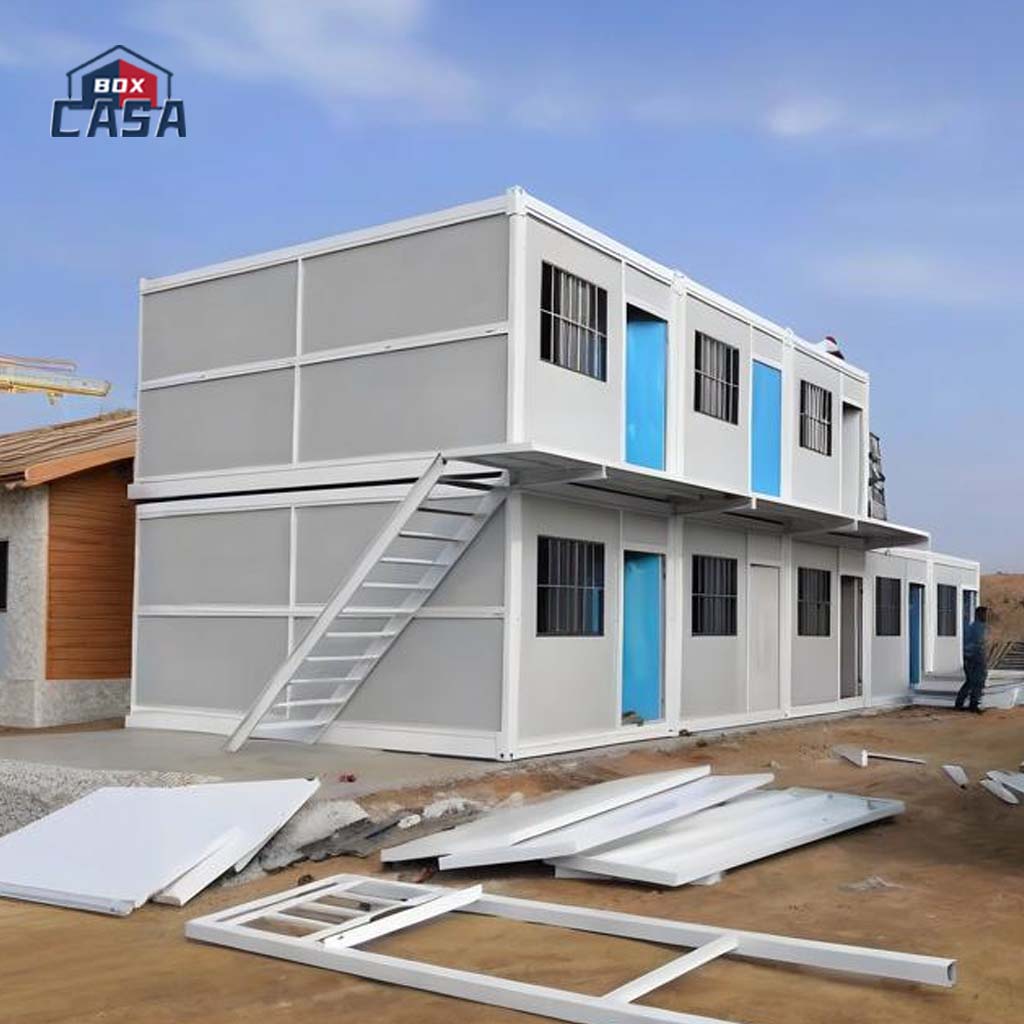

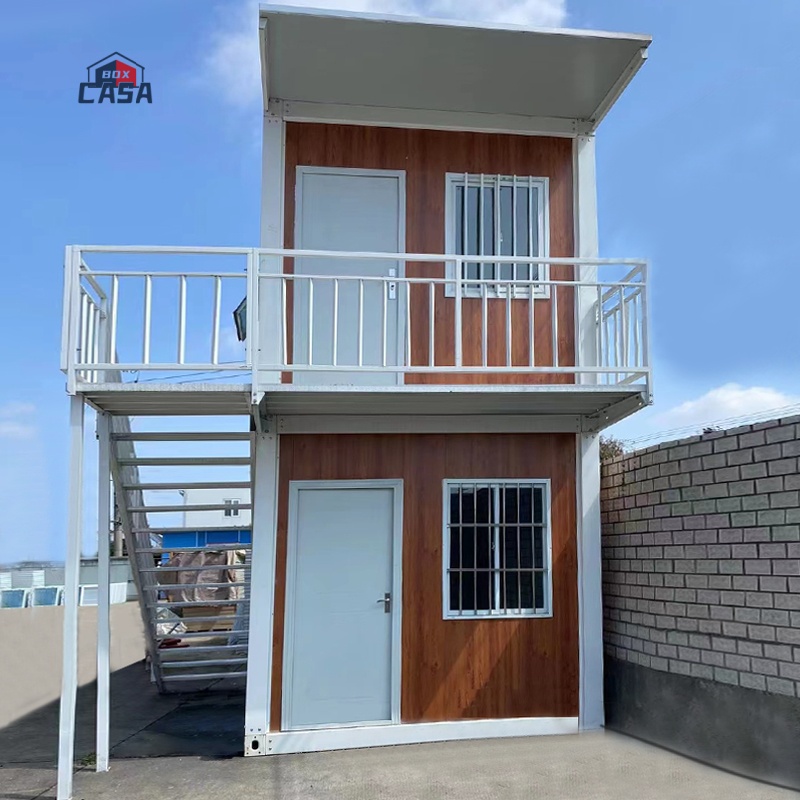

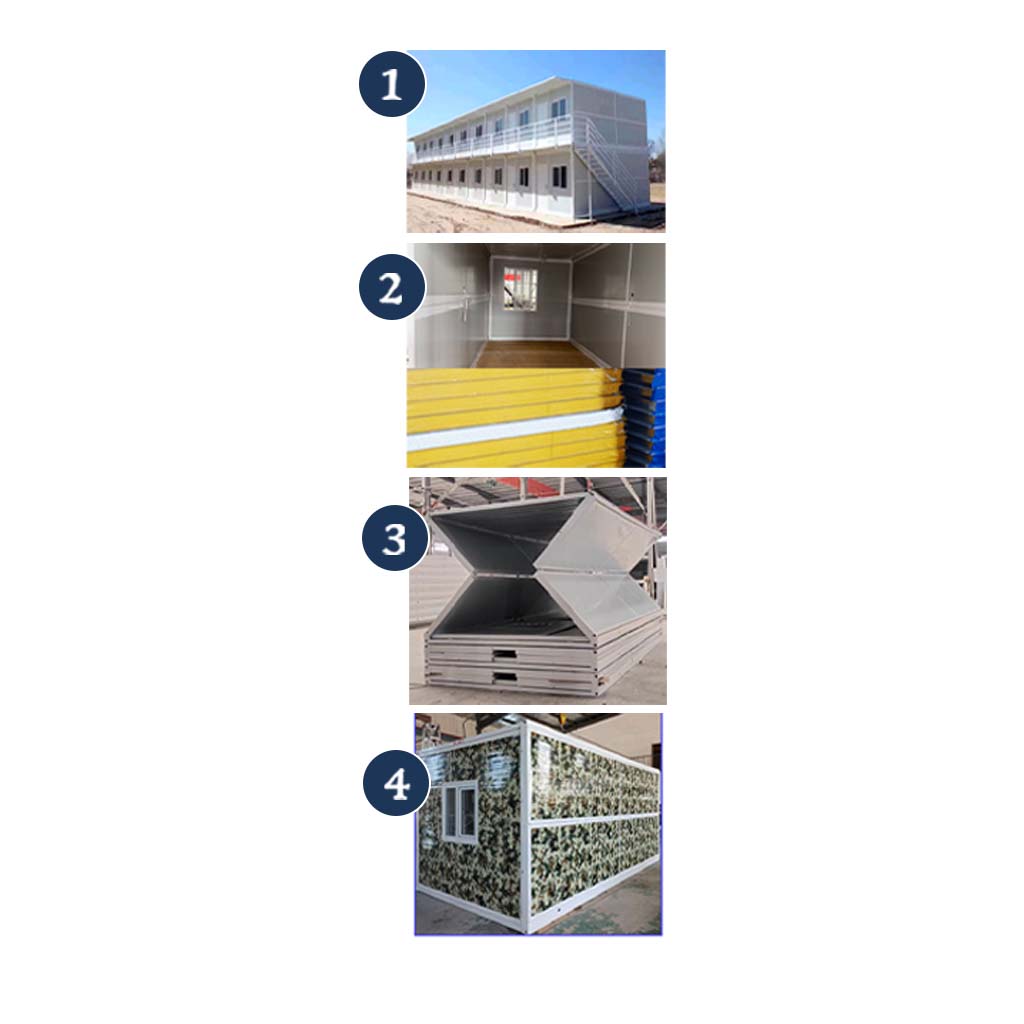

Horizontal & vertical multi-unit combinations adaptable to diverse spaces such as dorms, offices, and hospitals.

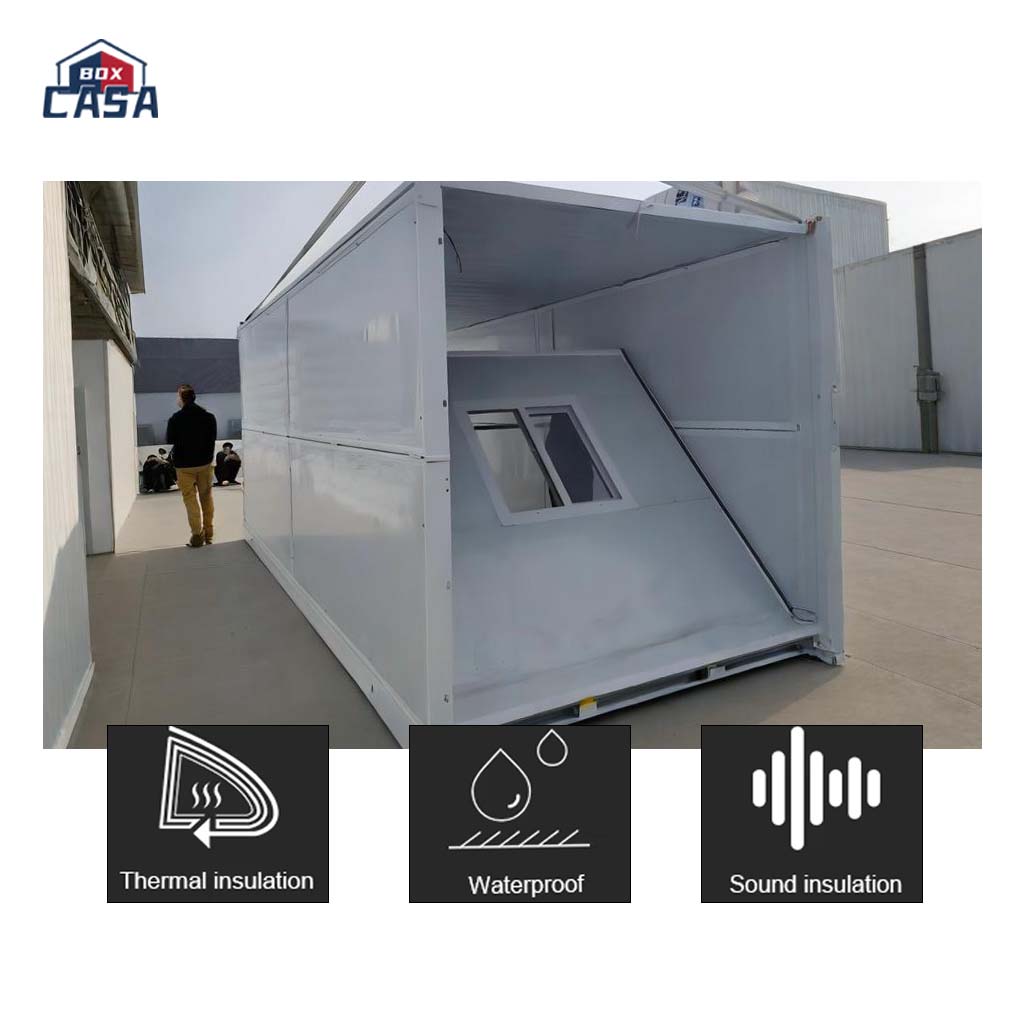

Thermal insulation and heat preservation from rock wool color steel composite sandwich panels. Waterproof, windproof, warm in winter and cool in summer.

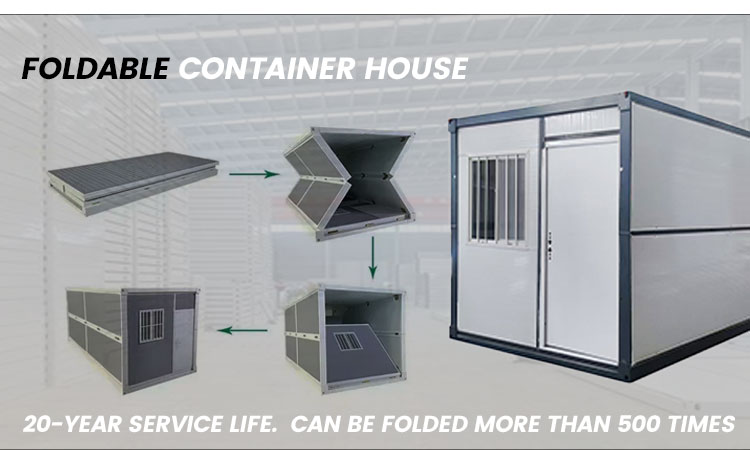

Folding volume is reduced by 67%, saving space and shipping costs. Quick disassembly/assembly allows the unit to be relocated as a whole.
Highly tailorable options regarding specifications, materials, and colors according to custom requirements.
