| Item | Details |
|---|---|

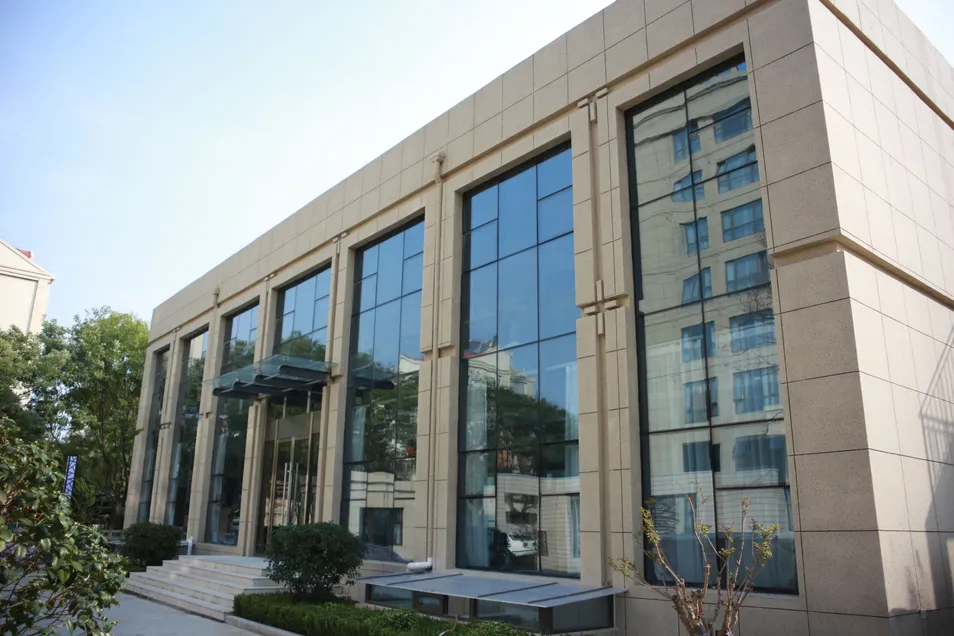

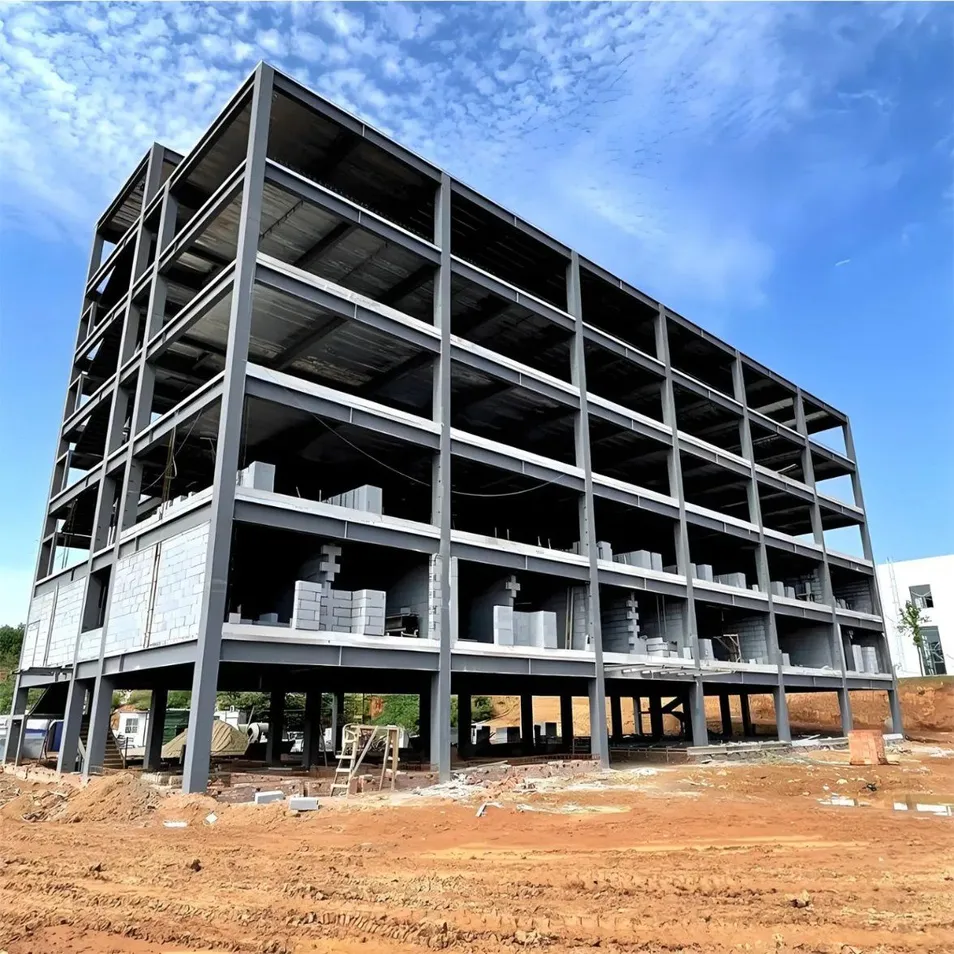

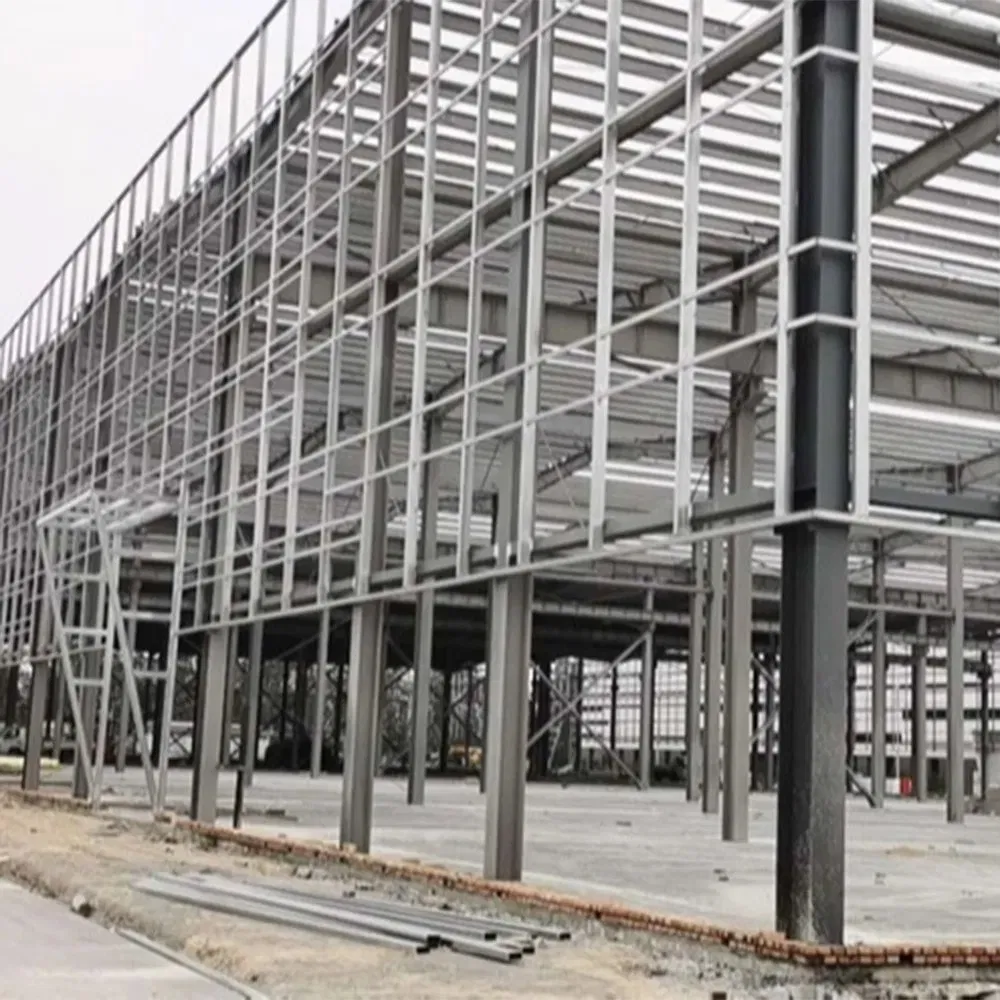

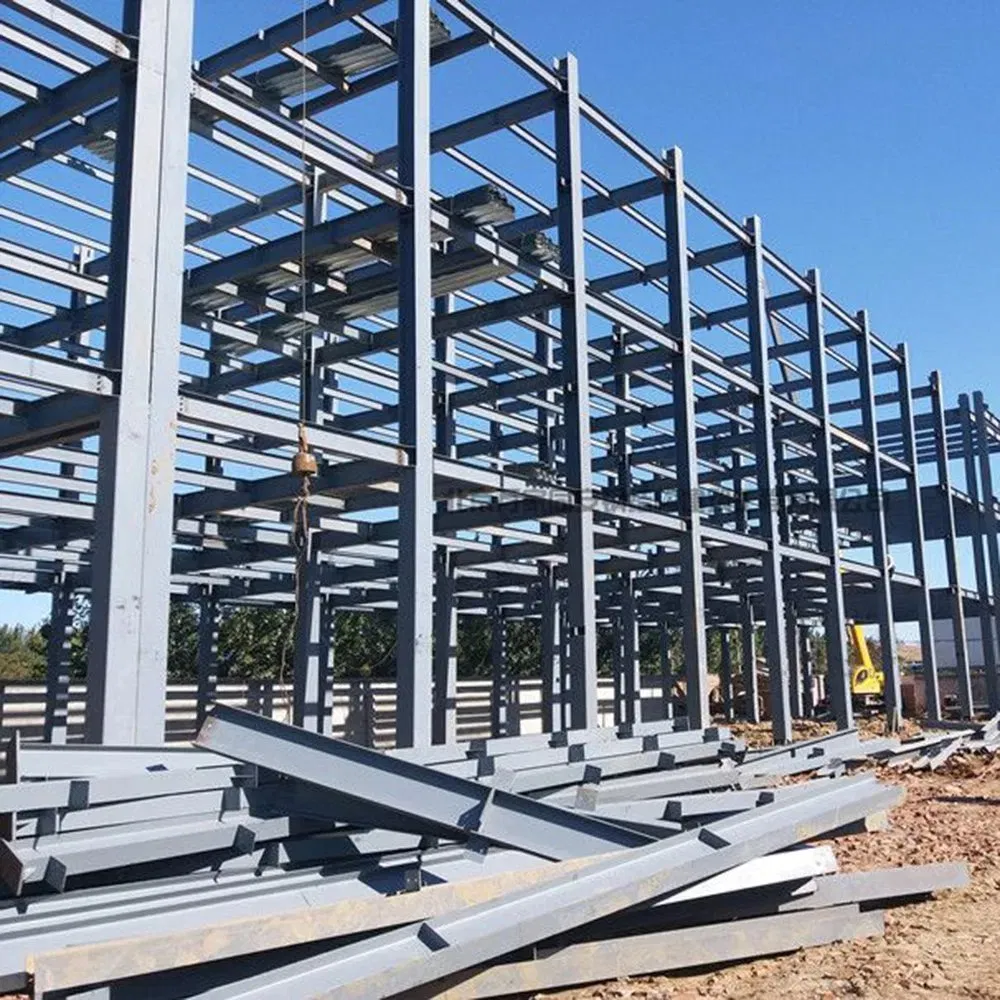

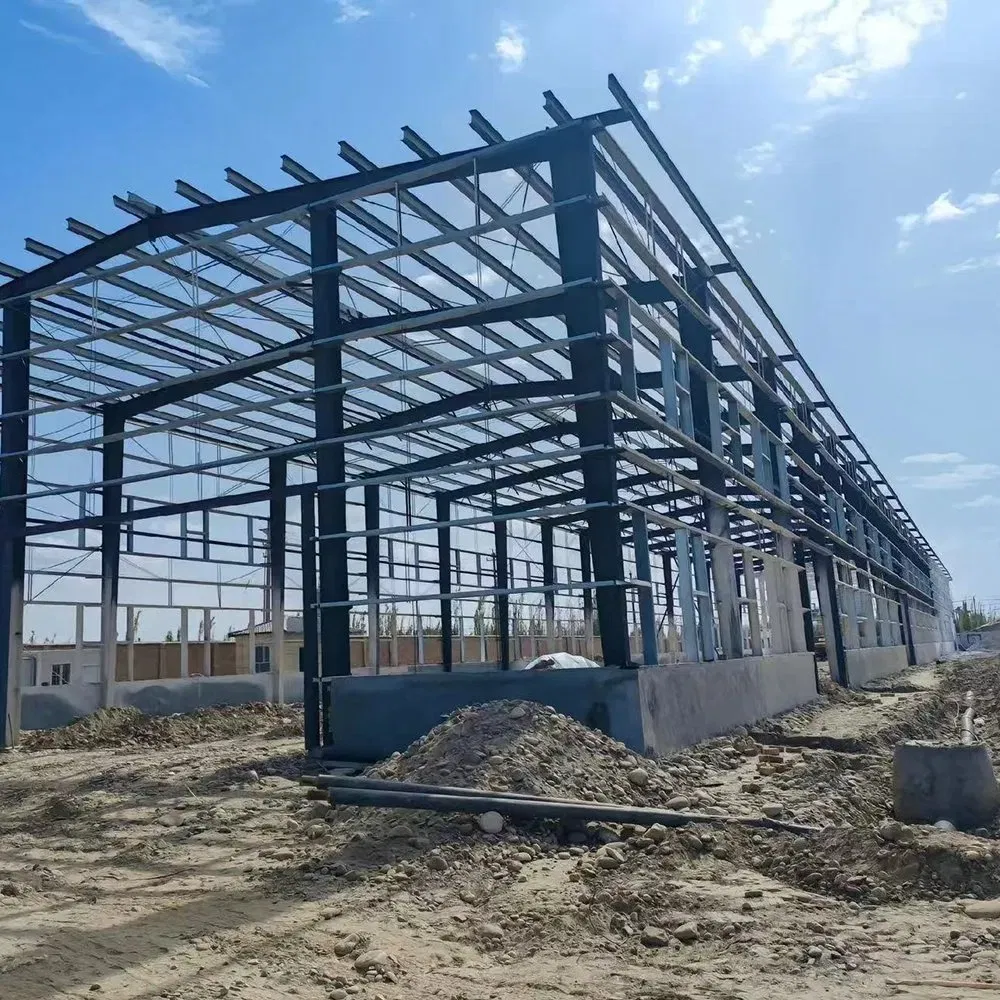

| Product Name | Steel Structure Office Building |

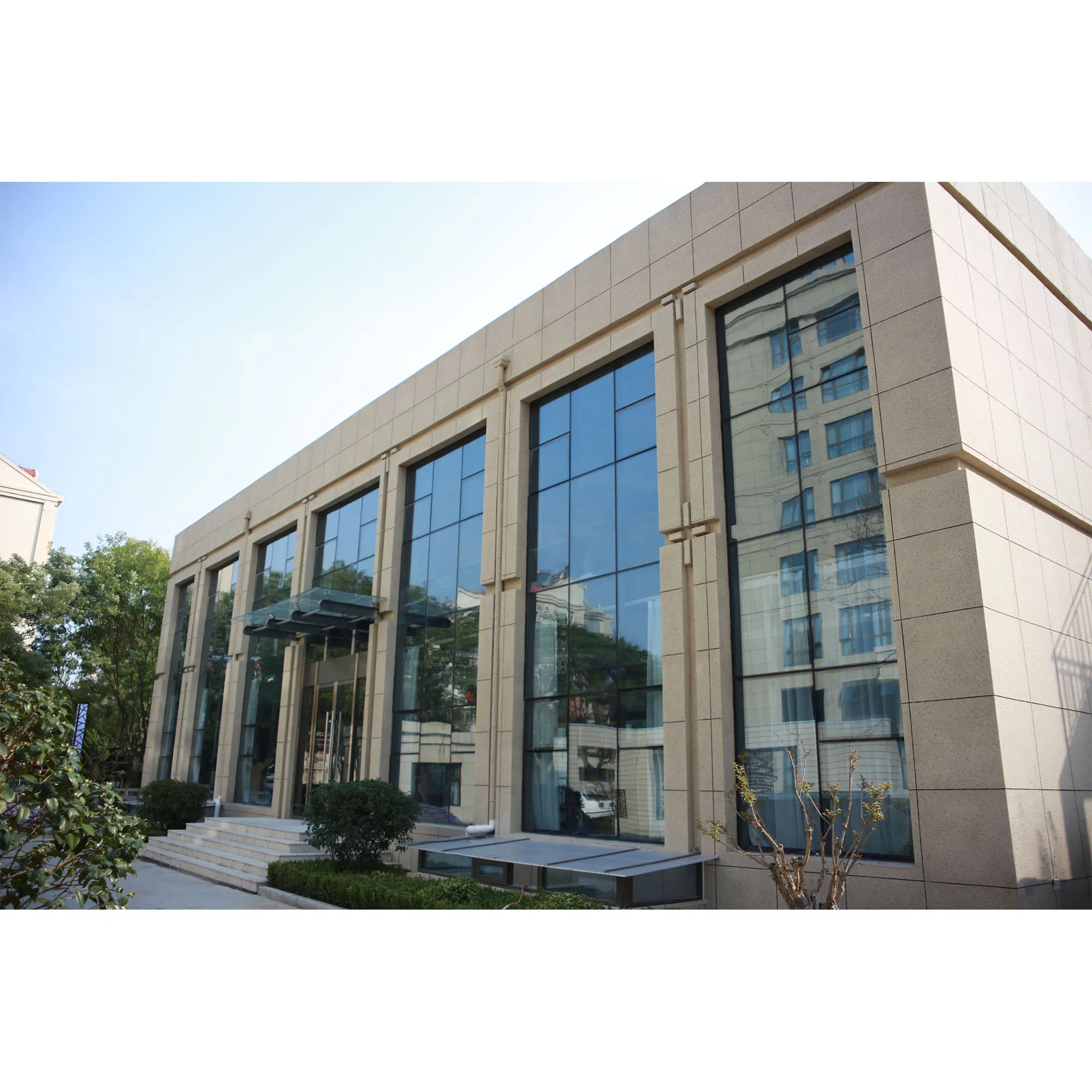

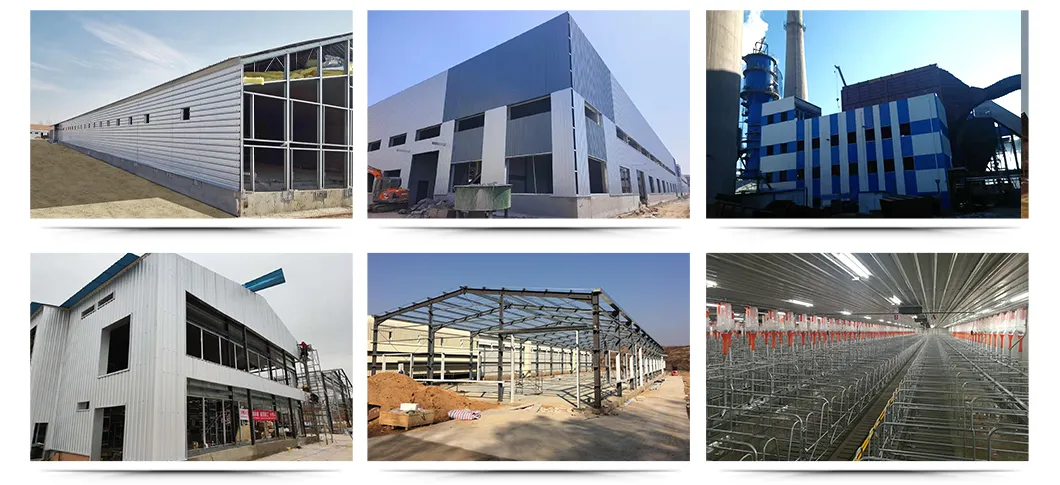

| Application | Enterprise headquarters office, industrial park office building, commercial office building, modular temporary office, government office auxiliary building, technology park office space |

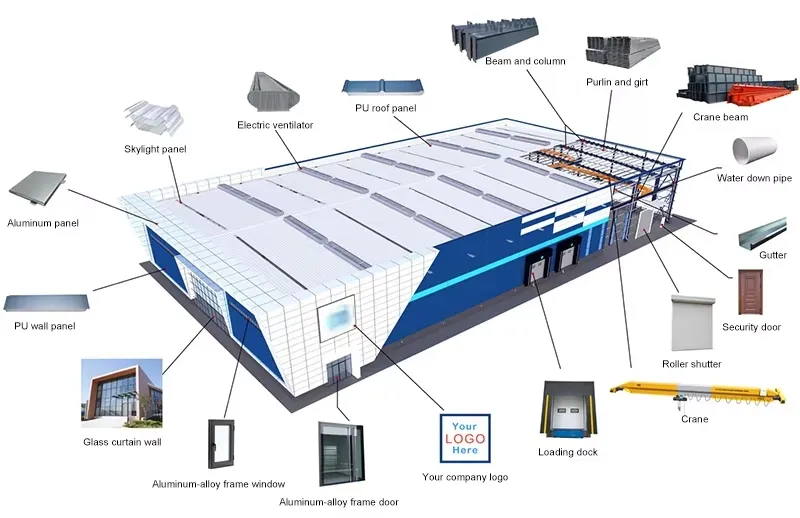

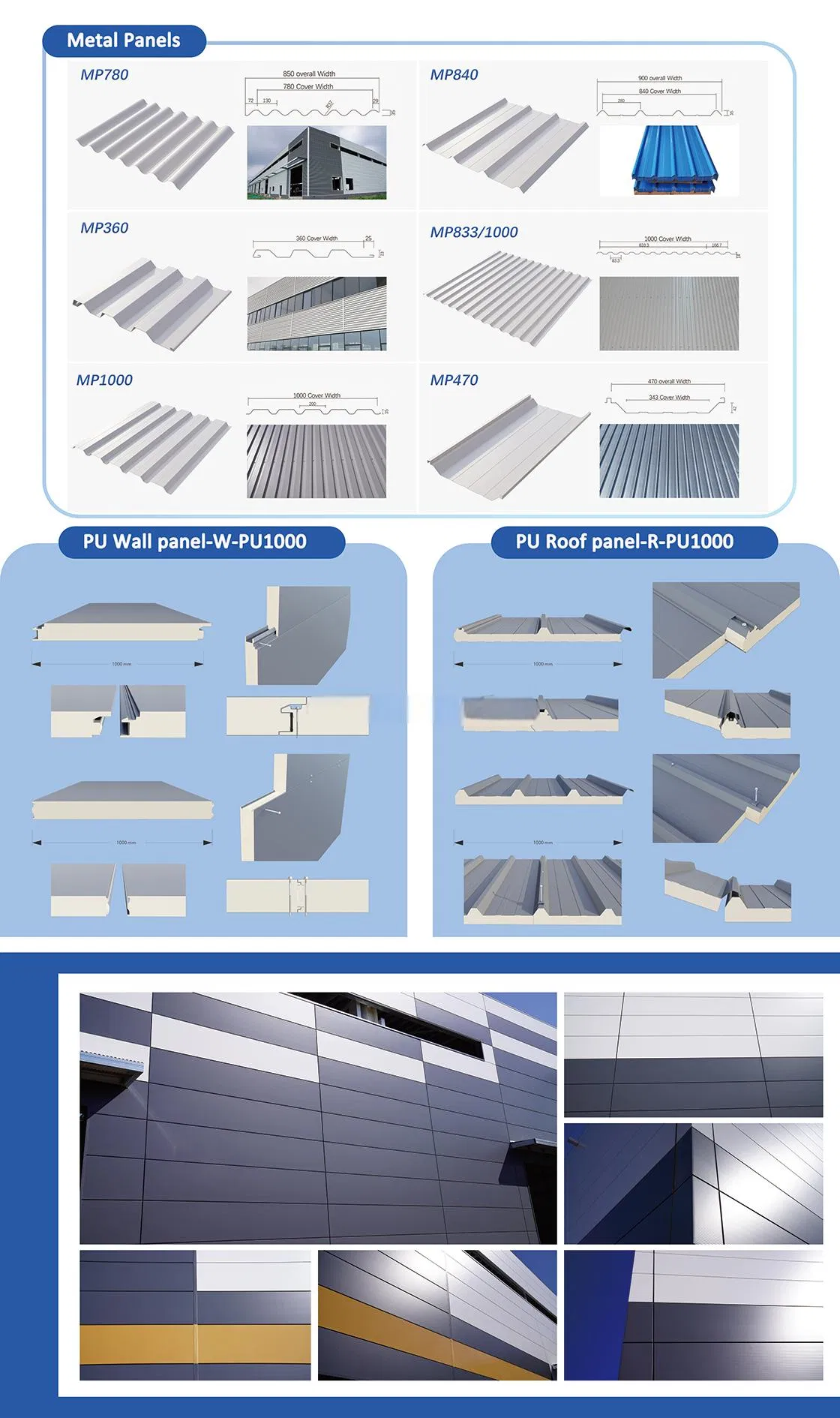

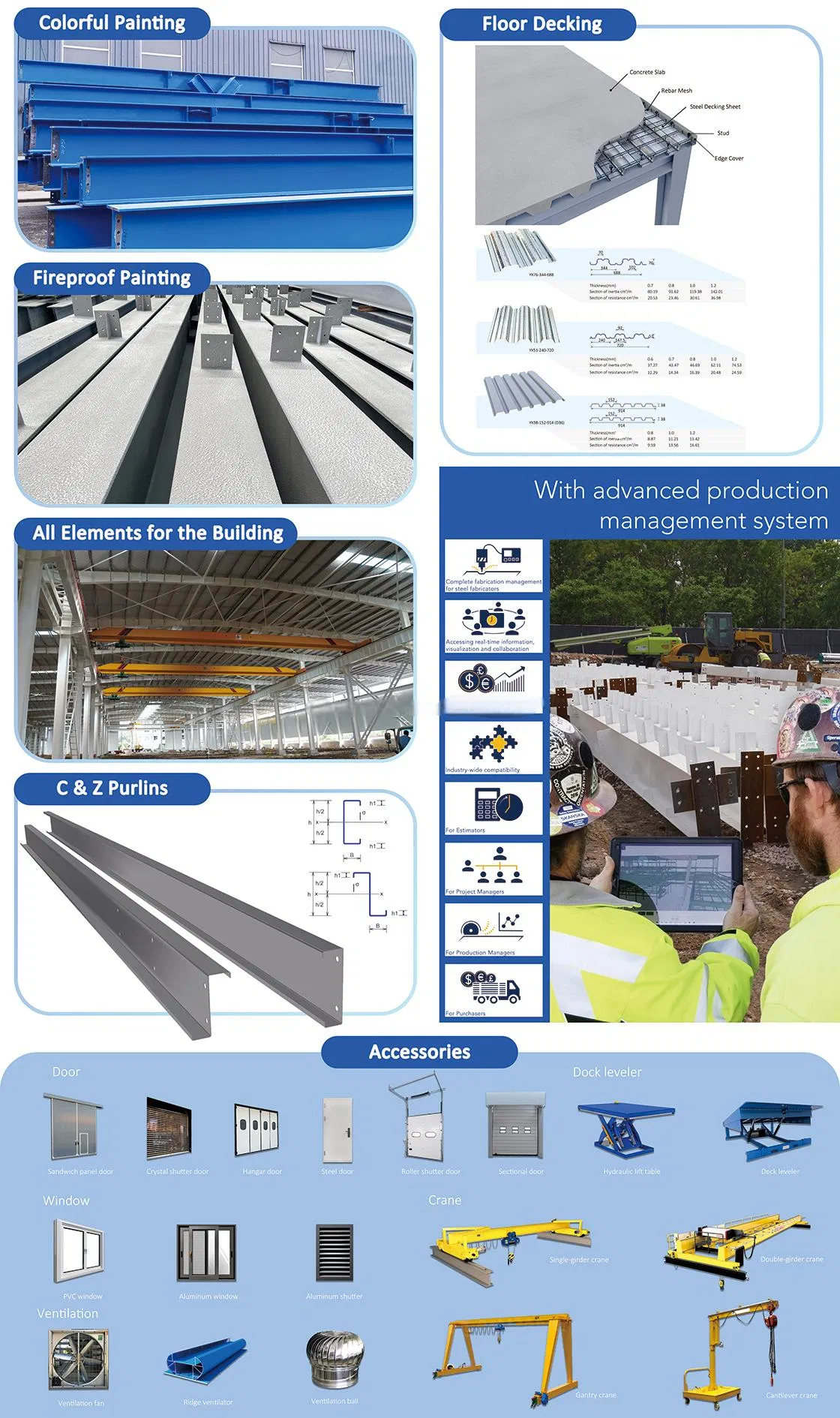

| Steel Structure Material | Main Frame: Q235/Q355 Carbon Steel (high strength, stable structure); Secondary Structure: C/Z Section Steel, Steel Purlin; Exterior Wall: Color Steel Sandwich Panel (EPS/PU/Rock Wool core), Glass Curtain Wall, Aluminum Composite Panel; Interior Wall: Light Steel Keel + Gypsum Board (fireproof, soundproof); Floor: Steel Beam + Composite Floor Slab (anti-slip, load-bearing) |
| Customizable Dimensions | Span: 8m - 30m (single-span/multi-span); Length: 20m - 150m; Number of Floors: 1 - 8 Floors; Floor Height: 3.0m - 4.2m; Eaves Height (single-floor): 3.5m - 6.0m; Tailored design based on office scale, functional layout, aesthetic requirements and local climate |
| Load-Bearing Capacity | Roof load: 0.3 - 0.8 kN/m²; Floor load: 2.0 - 3.5 kN/m² (adaptable to office equipment, personnel and partition walls); Wind load resistance: ≥12 grades; Earthquake resistance: ≥7 grades |
| Structural Performance & Durability | Steel parts: Hot-dip galvanizing/anti-rust paint treatment (anti-corrosion, anti-rust, service life ≥25 years); Fire rating: Grade A/B (adjustable based on wall/floor materials); Sound insulation: ≥40 dB (meeting office quiet demand); Thermal insulation: U-value ≤0.6, energy-saving and comfortable |
| Core Advantages | 1. Flexible internal space (easy to partition into offices, meeting rooms, reception areas without column restrictions); 2. Aesthetic appearance (optional curtain wall/glass design, modern and high-grade); 3. Fast construction (prefabricated parts, construction period 40%-60% shorter than concrete buildings); 4. Green and environmentally friendly (recyclable steel materials, low carbon emission); 5. Good seismic and wind resistance, safe and reliable; 6. Easy to expand and renovate with enterprise development |
| Optional Matching Equipment & Design | Central air conditioning system, ventilation and fresh air system, elevator (passenger/goods elevator), intelligent lighting system, fire protection system (sprinklers, smoke detectors), intelligent access control system, curtain wall (glass/aluminum alloy), ceiling decoration, indoor partition system |
| Certifications | ISO9001 Quality Management System Certification, CE, SGS, BV, GB50017 Steel Structure Design Standard, Green Building Certification (optional); Can provide certifications required by target markets such as EU, North America, Southeast Asia |
| Minimum Order Quantity (MOQ) | 1 Set (negotiable for large-scale office building projects) |
| Delivery Time | 35 - 70 Working Days After Receiving Advance Payment (adjustable according to project scale, number of floors and customization complexity) |

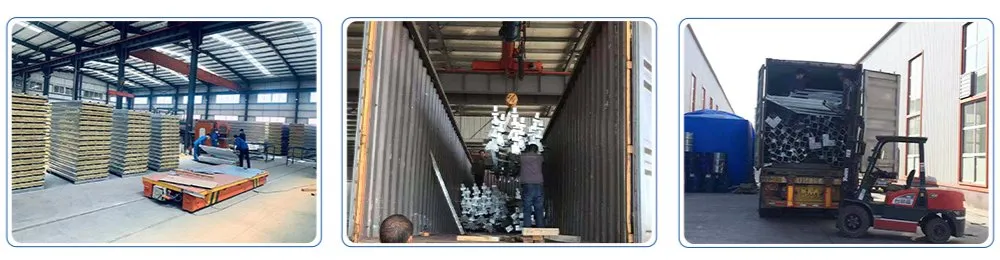

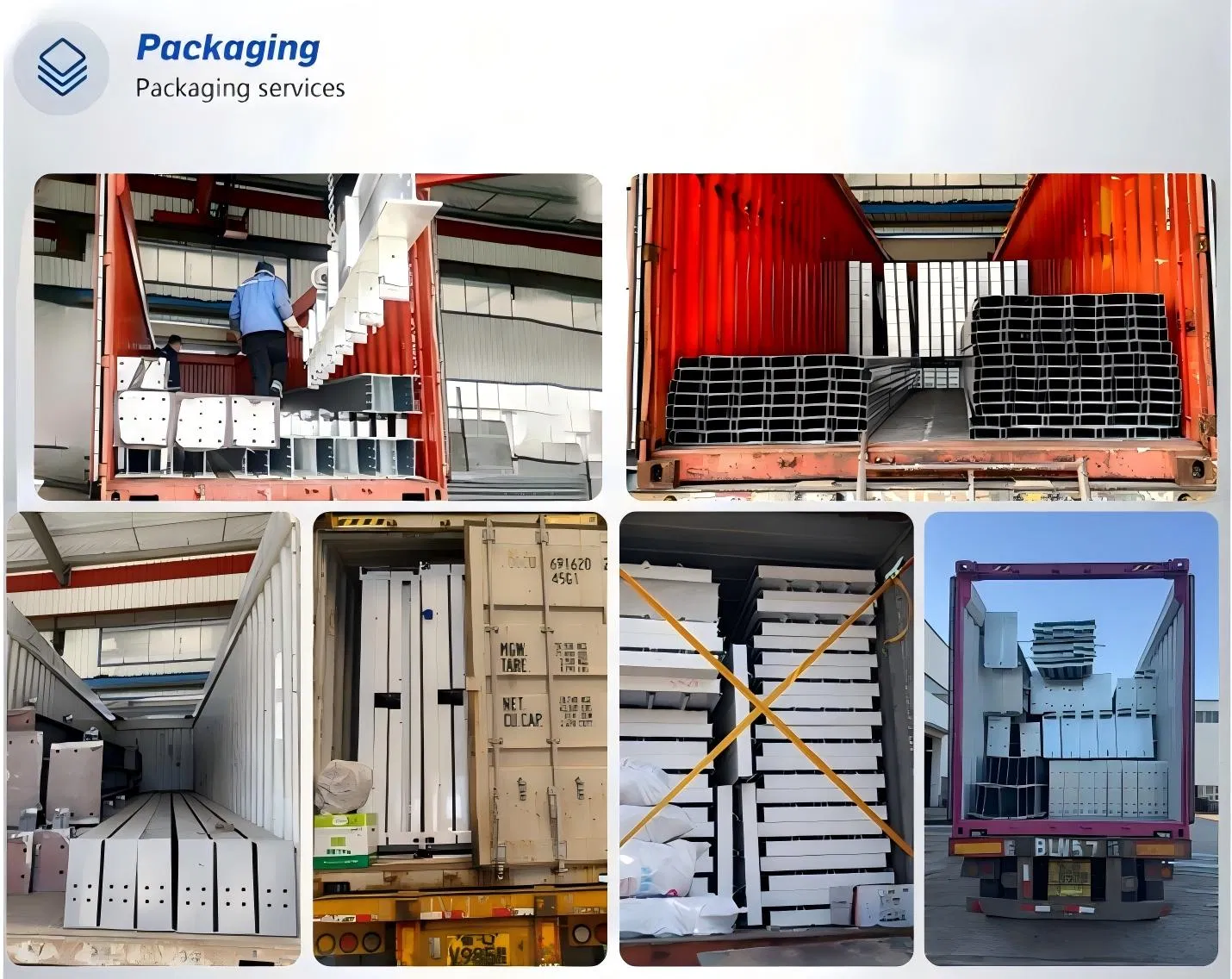

| Packaging Details | Steel structure parts: Standard export wooden cases + pallets (shockproof, anti-collision); Curtain wall/glass parts: Special shockproof wooden crates + foam padding; Panels: Film wrapping + pallets; Small accessories: Carton packaging with shockproof foam |
| Payment Terms | T/T (30% Advance Payment, 70% Balance Before Shipment), L/C at Sight, Installment Payment (negotiable for large-scale projects over 1.5 million USD) |
| Supply Capacity | 40,000 Per Month (or 40 Sets Per Month for standard single/multi-floor models) |

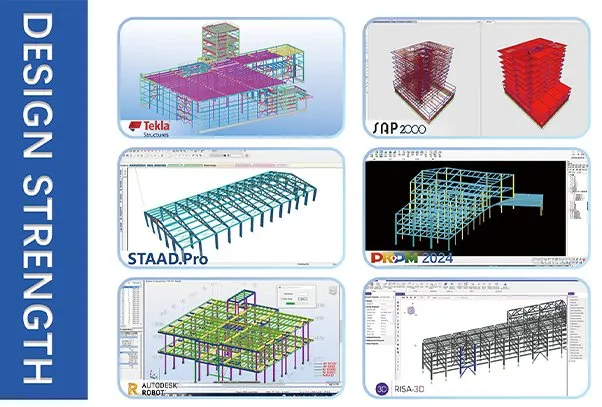

| Warranty & Service | 1-Year Warranty for the whole set; 15-Year Warranty for steel structure (excluding man-made damage, natural disasters and improper use); Free professional design (3D architectural drawing, interior layout drawing and construction drawing); On-site installation supervision and technical guidance (paid full-set installation and decoration service available); 24/7 after-sales technical support and maintenance consultation |

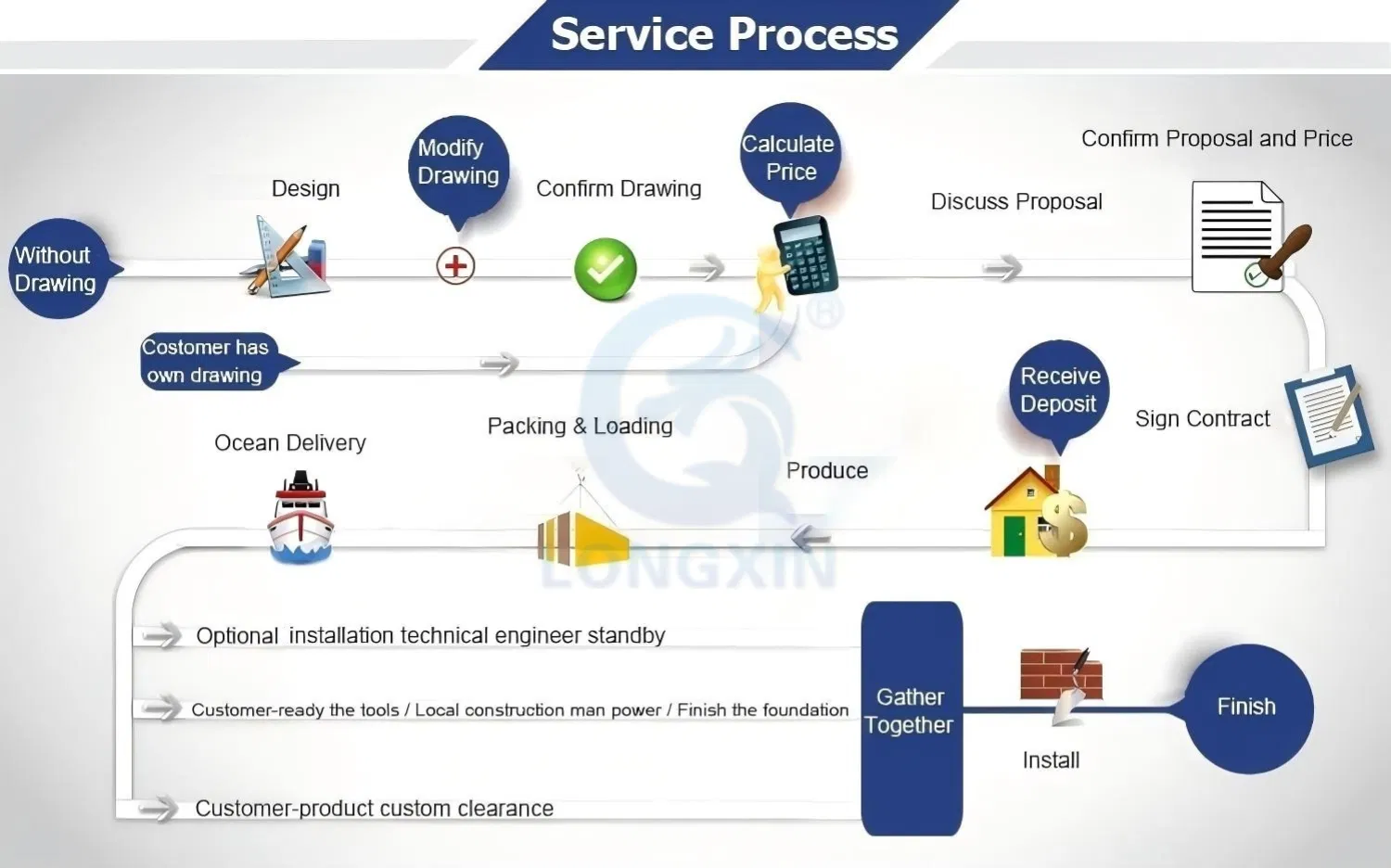

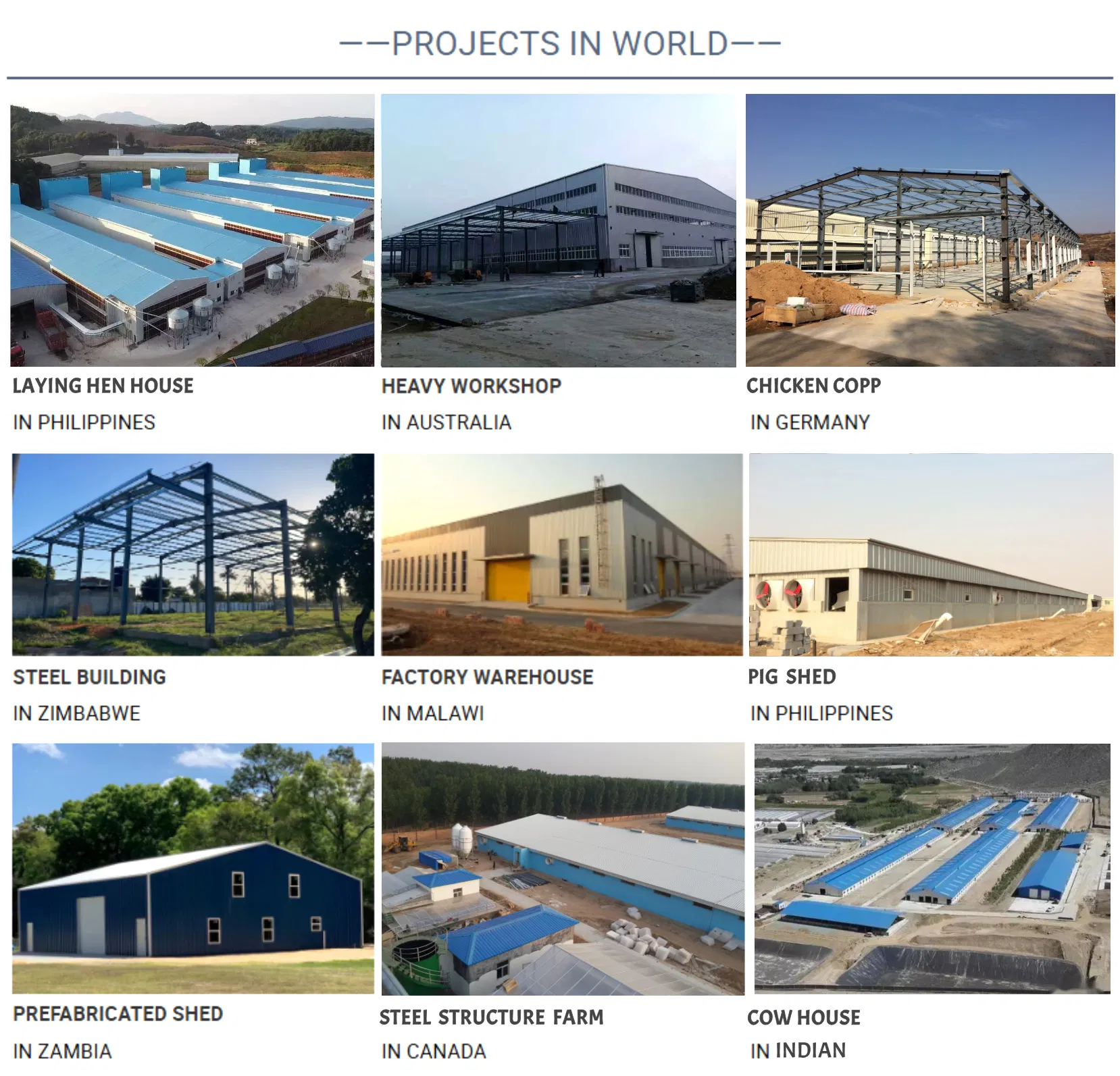

| Project Support | Provide global successful office building project cases (photos/videos); Offer one-stop service from design, production, delivery to installation and decoration guidance; Accept third-party inspection (SGS/BV) before shipment to ensure product quality |
