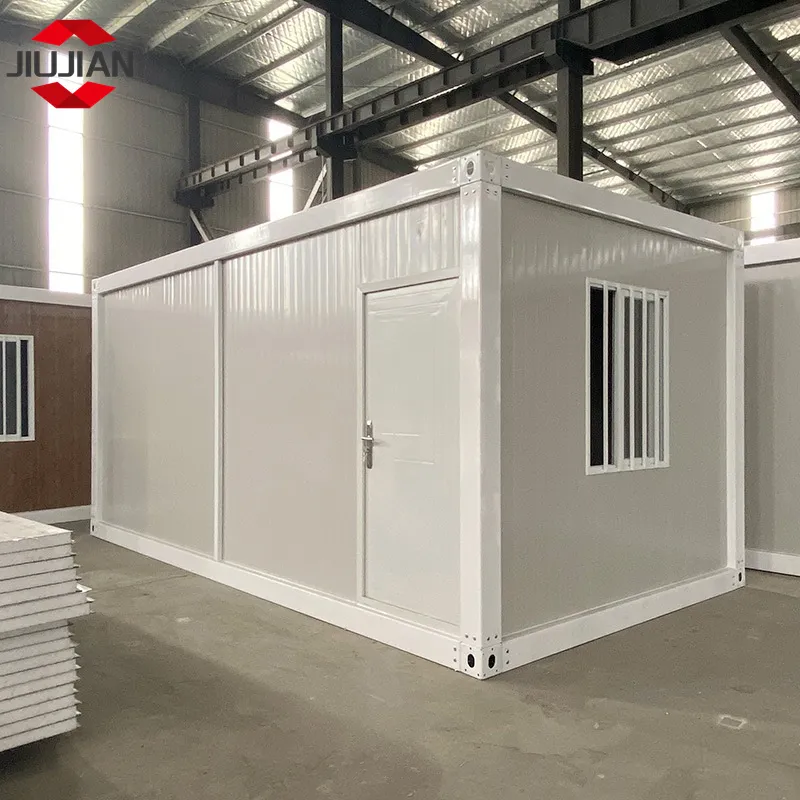

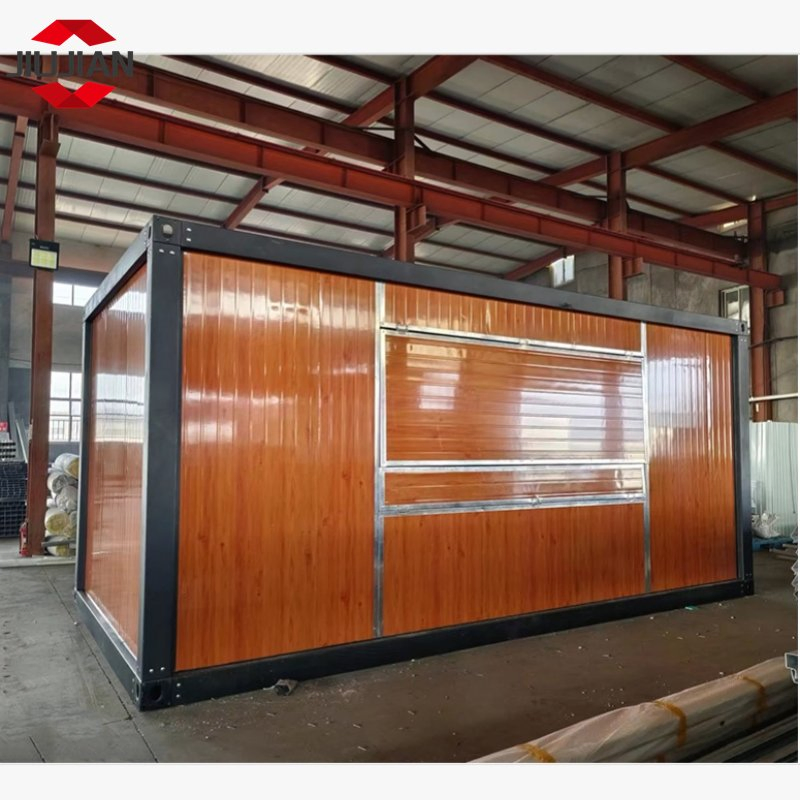

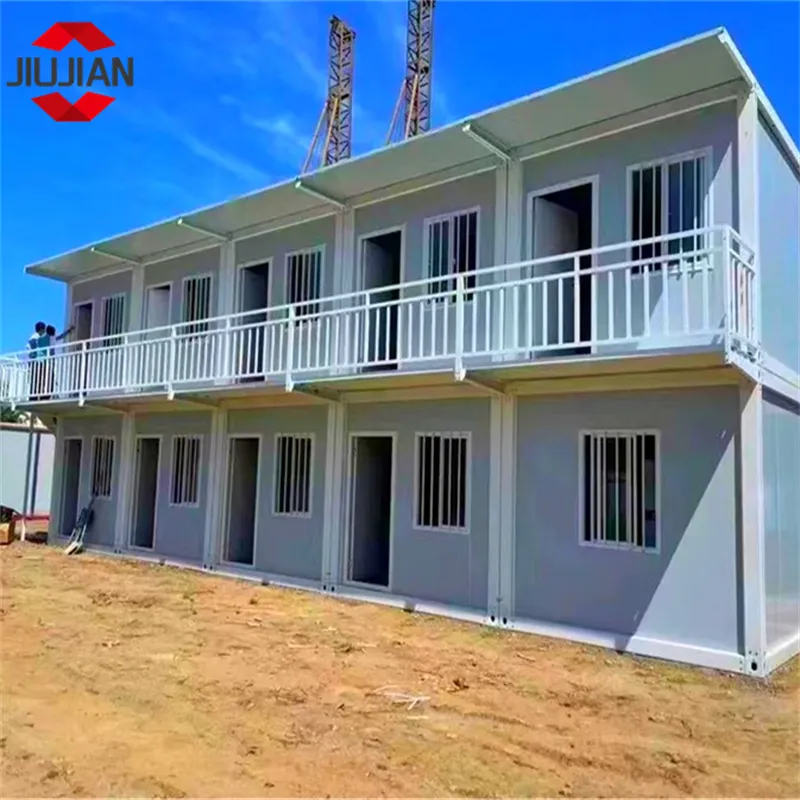

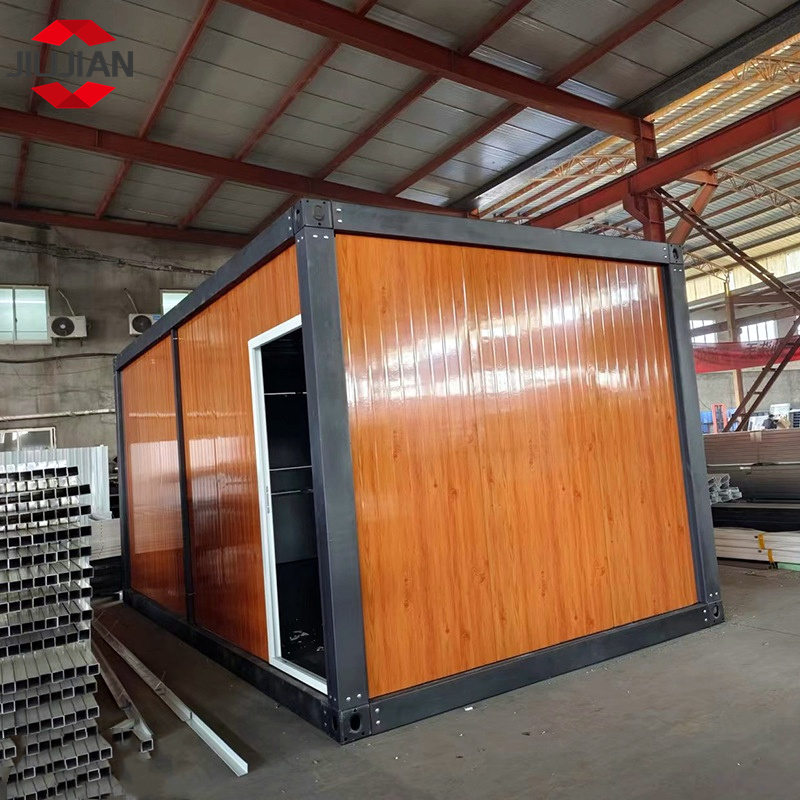

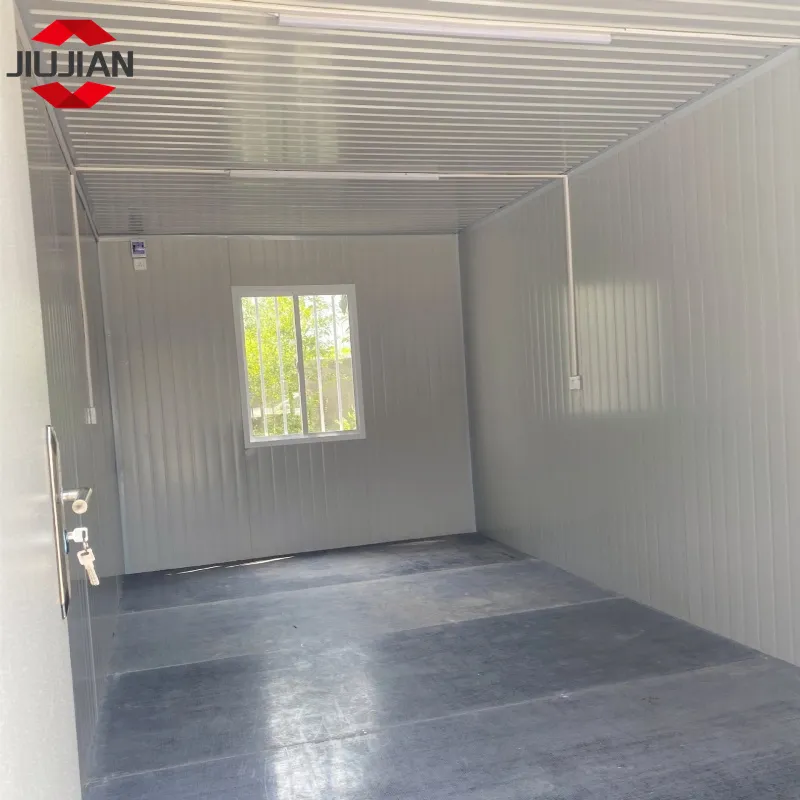

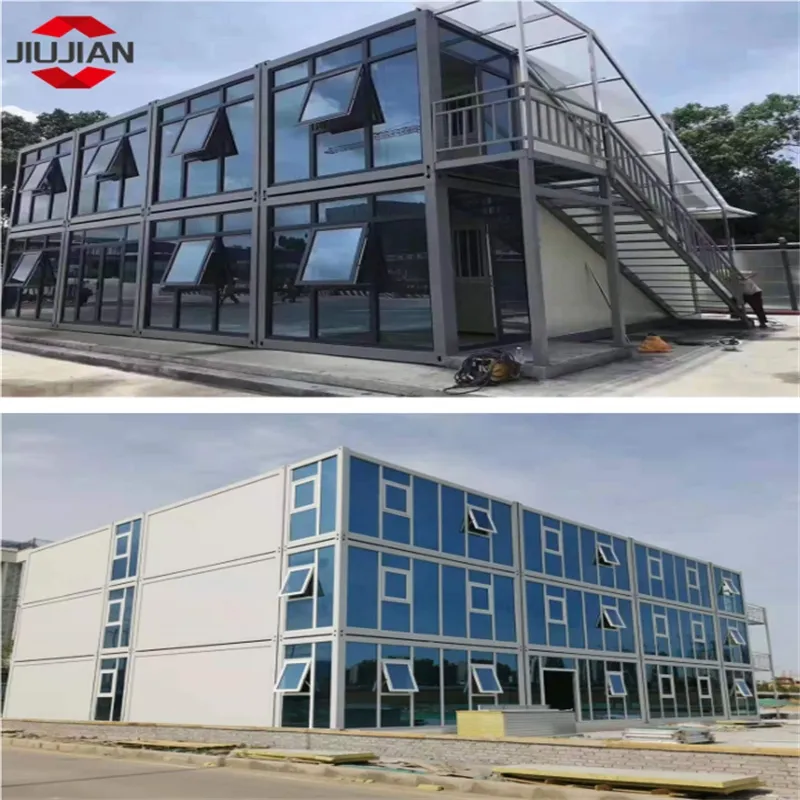

The flat pack container house is a modular building house composed of a top frame, bottom frame, columns, wall panels, doors, and windows. It can be moved and reused at will. This integrated house setup is green, labor-saving, and flexible. It serves as a basic unit that can be used separately or combined horizontally and vertically to create a spacious usable structure.
| Flat Pack Container House Specifications | ||
|---|---|---|

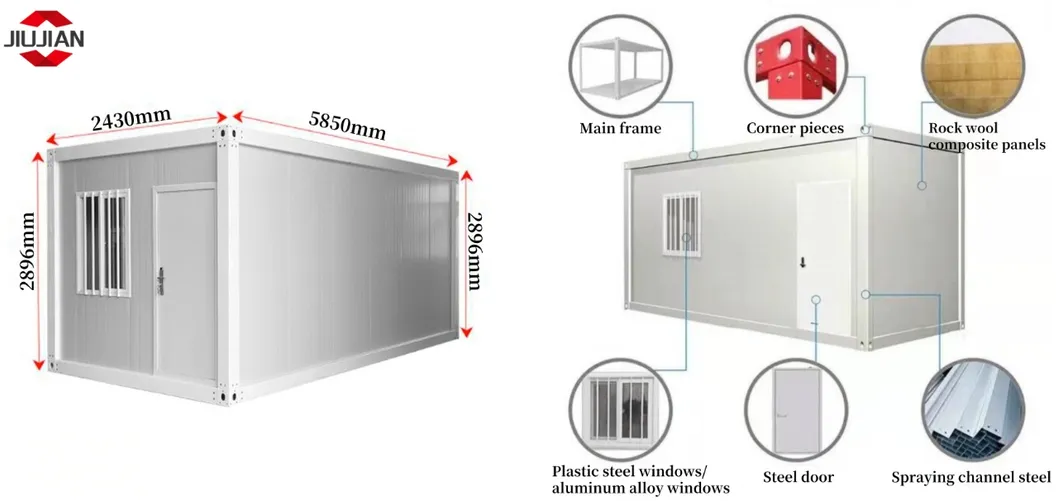

| General Info | Size | 5850 * 2430 * 2896mm |
| Weight | 1400KG | |
| Loading | 40'HQ / 8pcs | |
| Performance | Service life | 20 years |
| Ground live load | 2.0KN/m² | |
| Roof live load | 0.5KN/m² | |
| Wind load | 0.6KN/m² | |
| Seismic grade | 8 grade | |
| Frame Structural | Top frame | Main beam: 2.3mm 160steel (5670*2, 2670*2) Secondary beams: 1.2mm 80steel (2670*6) |
| Column | 2.3mm steel 160 * 160 * 2510mm | |
| Bottom frame | Main beam: 2.3mm 160steel (5670*2, 2670*2) Secondary beams: 1.2mm 80steel (2670*9) |
|
| Hanging head | 3mm steel 160 * 160 * 160mm | |
| Roof System | Roofing panels | 0.4mm Color steel plate (Special waterproofing process) |
| Insulation | 50/75mm EPS panel / fireproof rock wool panel | |
| Suspended ceiling | 0.3mm 831 Suspended ceiling panels | |
| Walls & Floors | Walls | 0.3mm 950 steel plywood (50/75 EPS or Rock wool panel) |
| Ground Substrate | Fiberglass cement / Cement sanded board + Plastic/Floor leather decoration | |

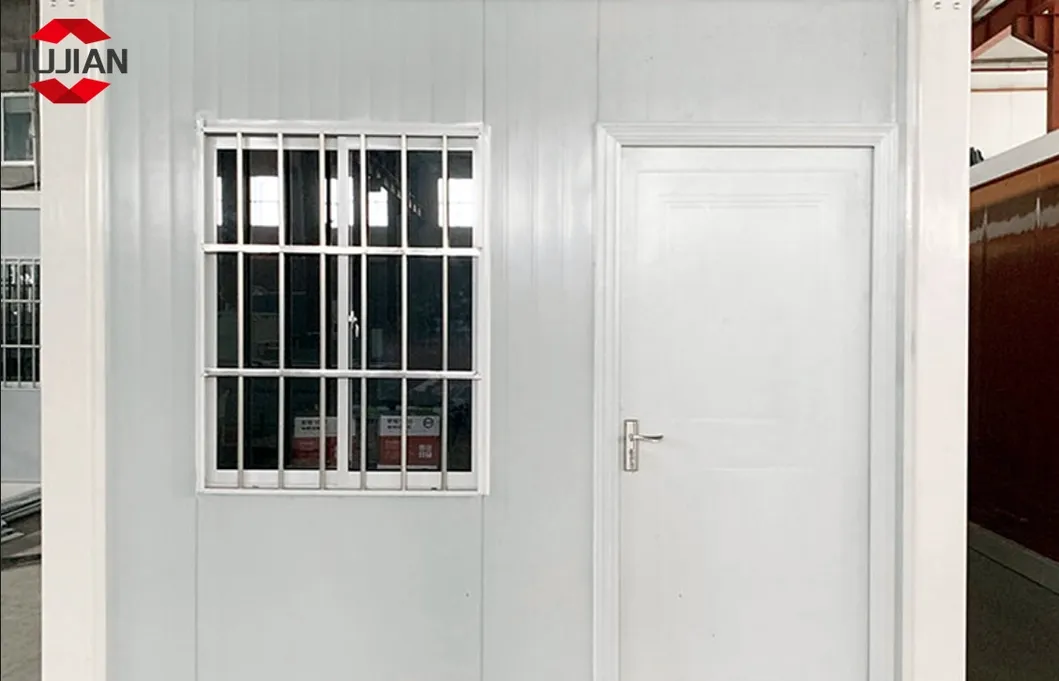

| Doors & Windows | Details | Steel door (970*1970mm) with fireproof locks; Plastic steel windows (930*1130mm) with anti-theft and screens |
| Electricity | Wire Specs | Main & AC: 4mm²; Sockets: 2.5mm²; Lighting: 1.5mm² |
| Receptacles | 5 holes*2, 3 holes*1, Single hole*1 | |
| Lighting | LED strip light * 2 | |
| Distribution | 6-way distribution box, protectors, and industrial plugs | |

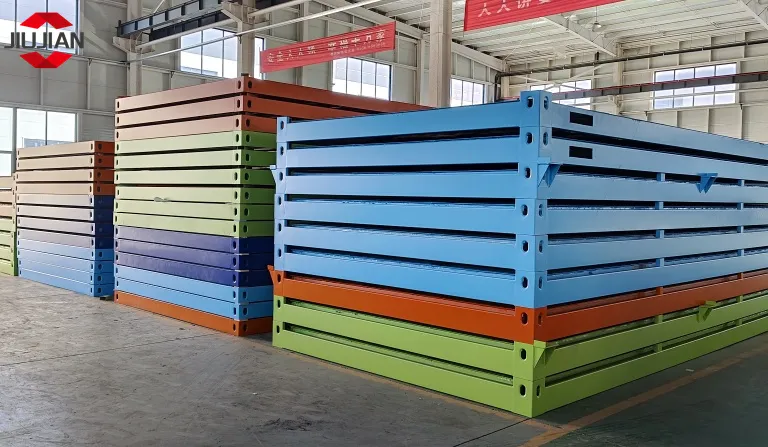

Galvanized section steel, strong and wear-resistant, easy to disassemble and assemble, convenient to transport, saving total transportation costs.

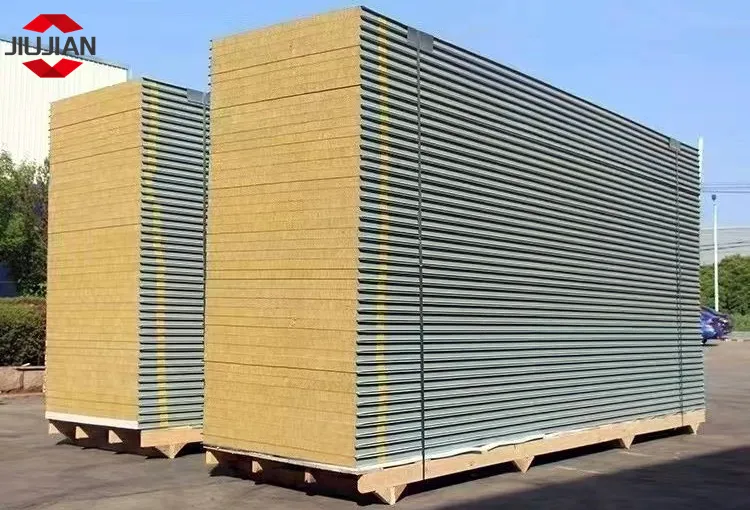

50mm fireproof rock wool board offering high corrosion resistance, strong stability, and excellent heat insulation. Customizable options available.
All configurations can be customized to align perfectly with your project requirements.

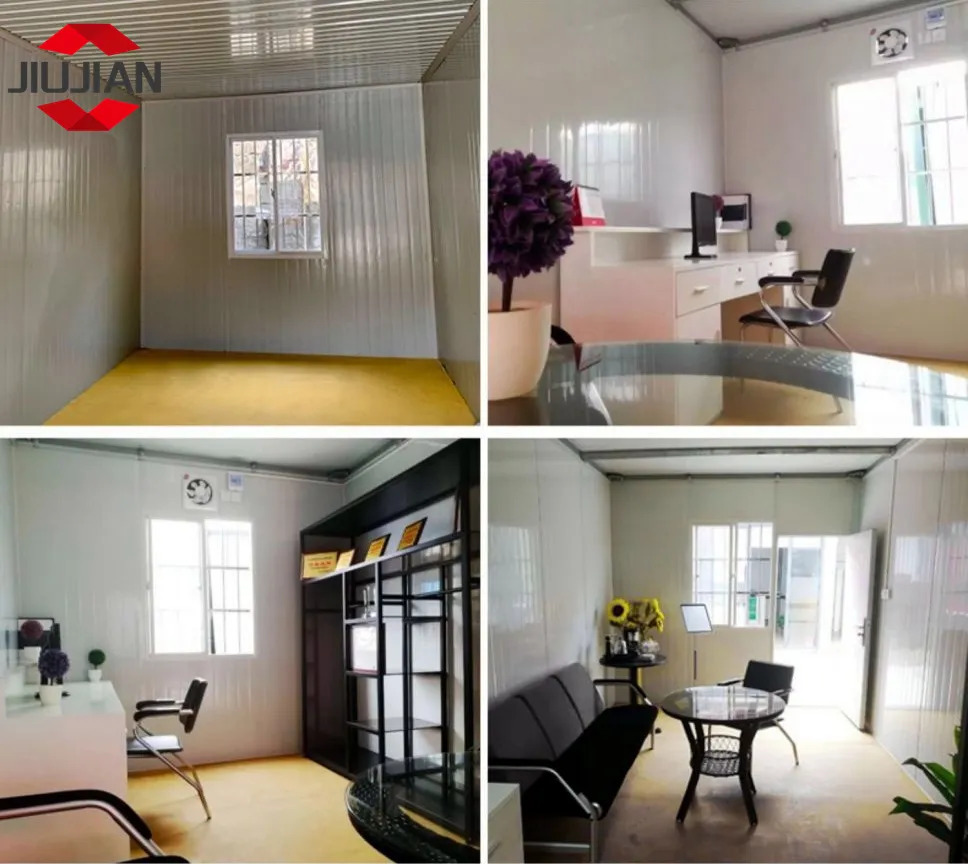

Highly adaptable spaces that can be decorated and configured to suit your layout preferences.

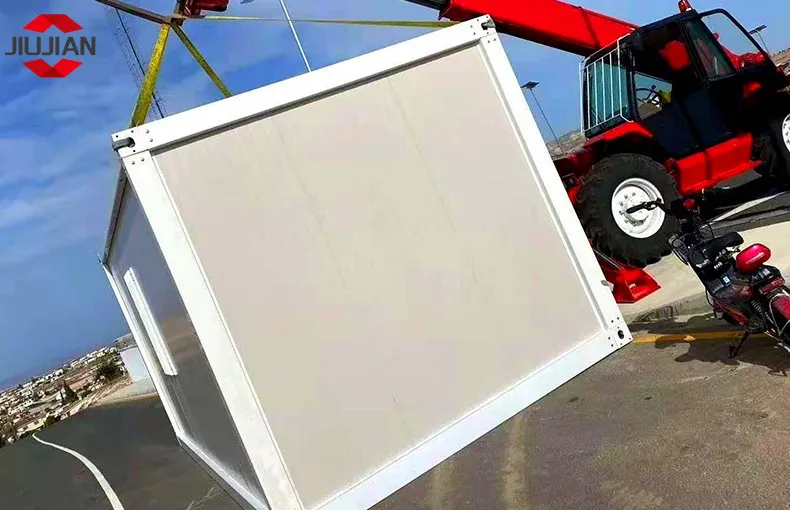

Capable of being moved and reused as a single continuous unit. Designed for a reliable service life of up to 20 years.
Simple structure, convenient logistics, rapid on-site setup, and effortless relocation make this unit suitable for diverse functional requirements.

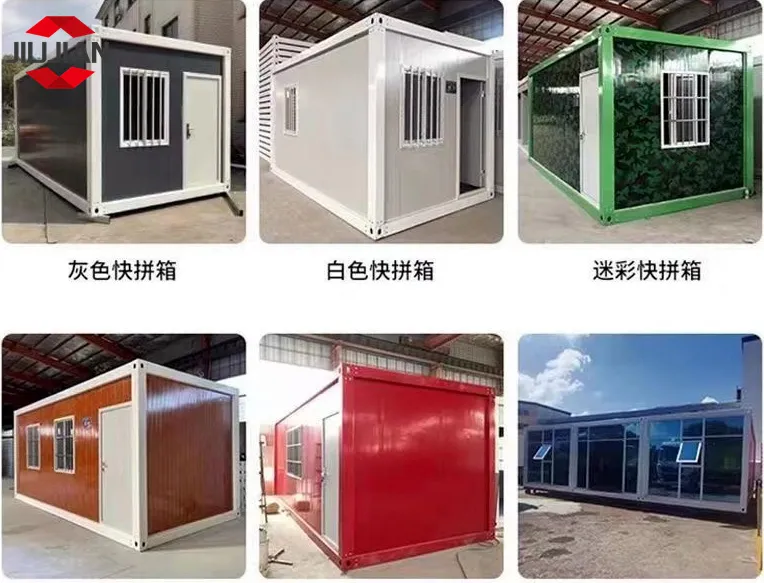

Diverse specifications allow for deep customization, adjusting materials, dimensions, and color schemes based on regional needs.
Structured with premium quality steel framework, ensuring heavy load bearing capacities and reliable structural integrity.

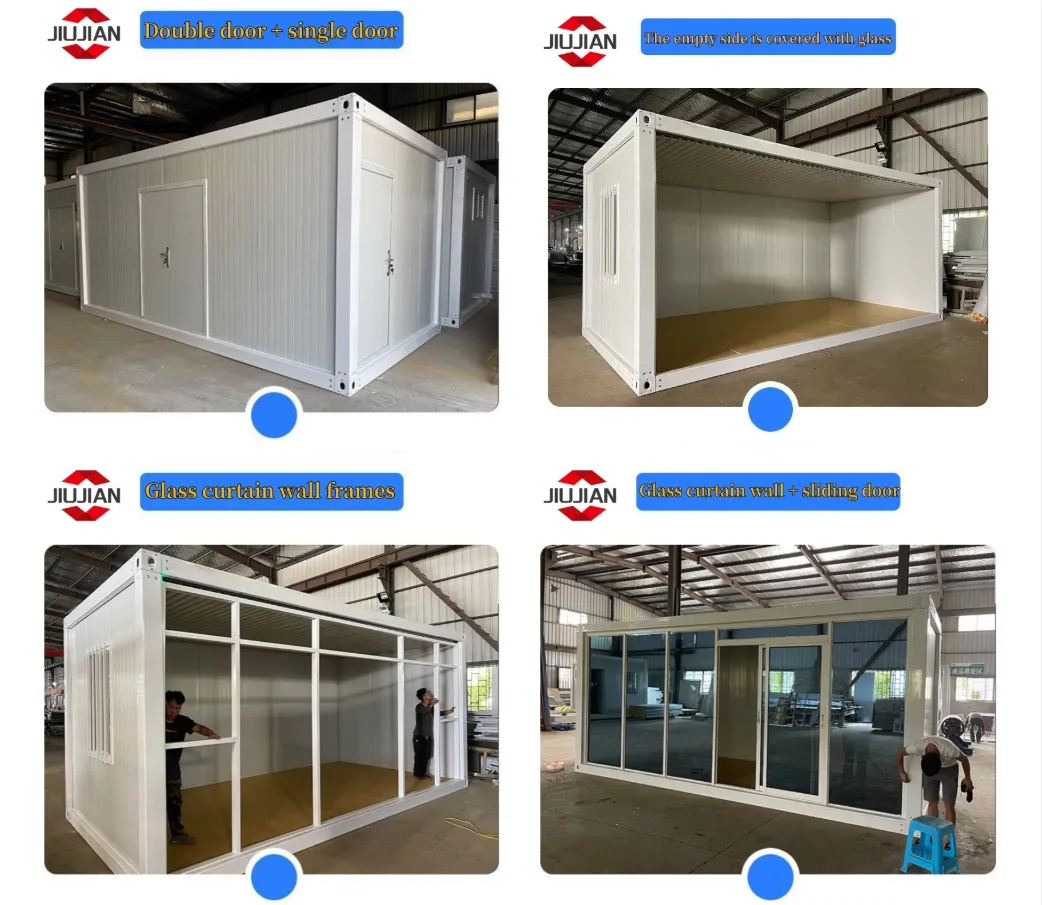

Flexible adjustments can be made to sizes, styling, panel depth, anti-corrosion treatments, and floor materials.

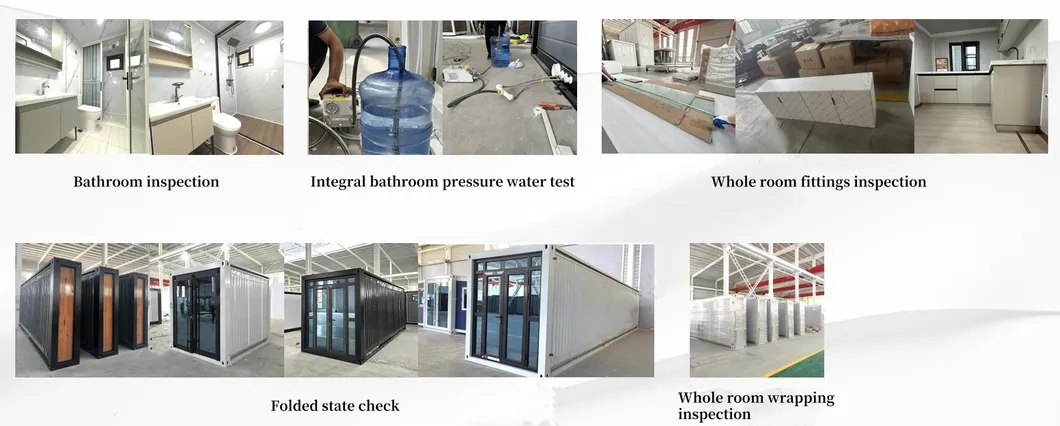

Engineered via precise production lines implementing strict water sealing processes to prevent internal leaks.
Performs consistently across sites: public squares, tourist parks, coastal strips, or mountain resorts.

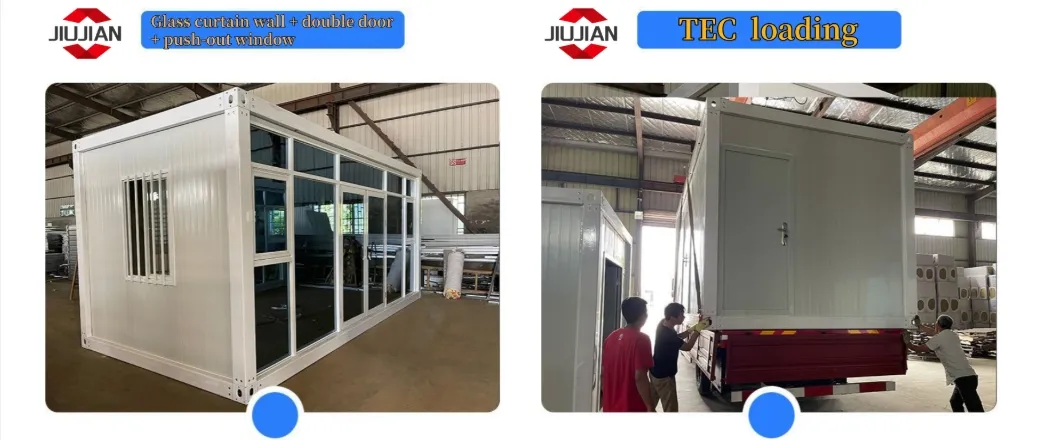

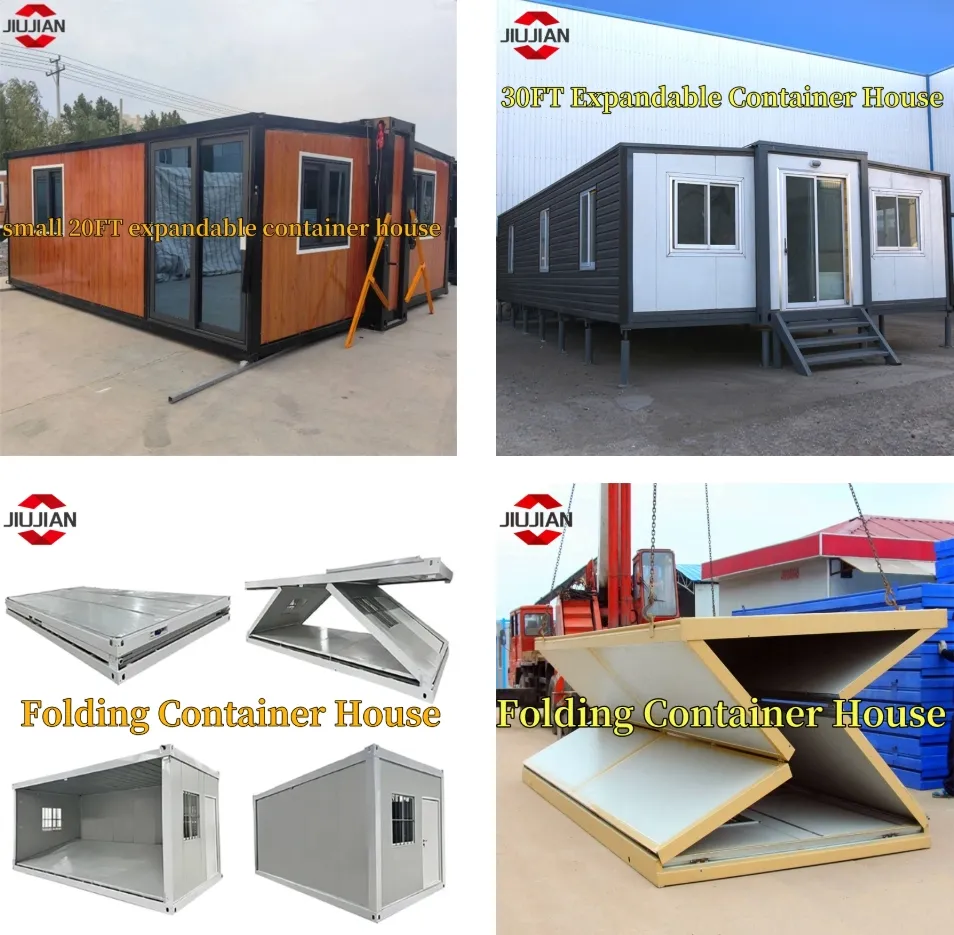

Highly compact configuration after folding saves logistics space and permits standard delivery by trucks/trailers.

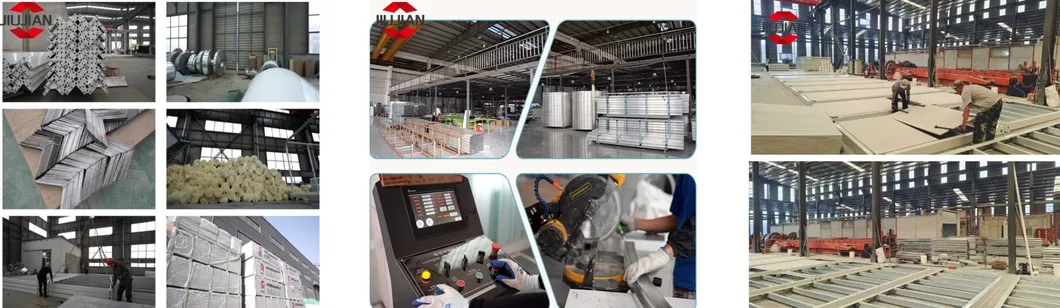

We operate as a comprehensive manufacturer focusing on the integration of modular house design, manufacturing lines, logistics, and technical guidance. Our setup includes a dedicated facility space spanning 17,600 square meters utilizing two large-scale dynamic production lines, guided by professional design, engineering, sales, and inspection units.
