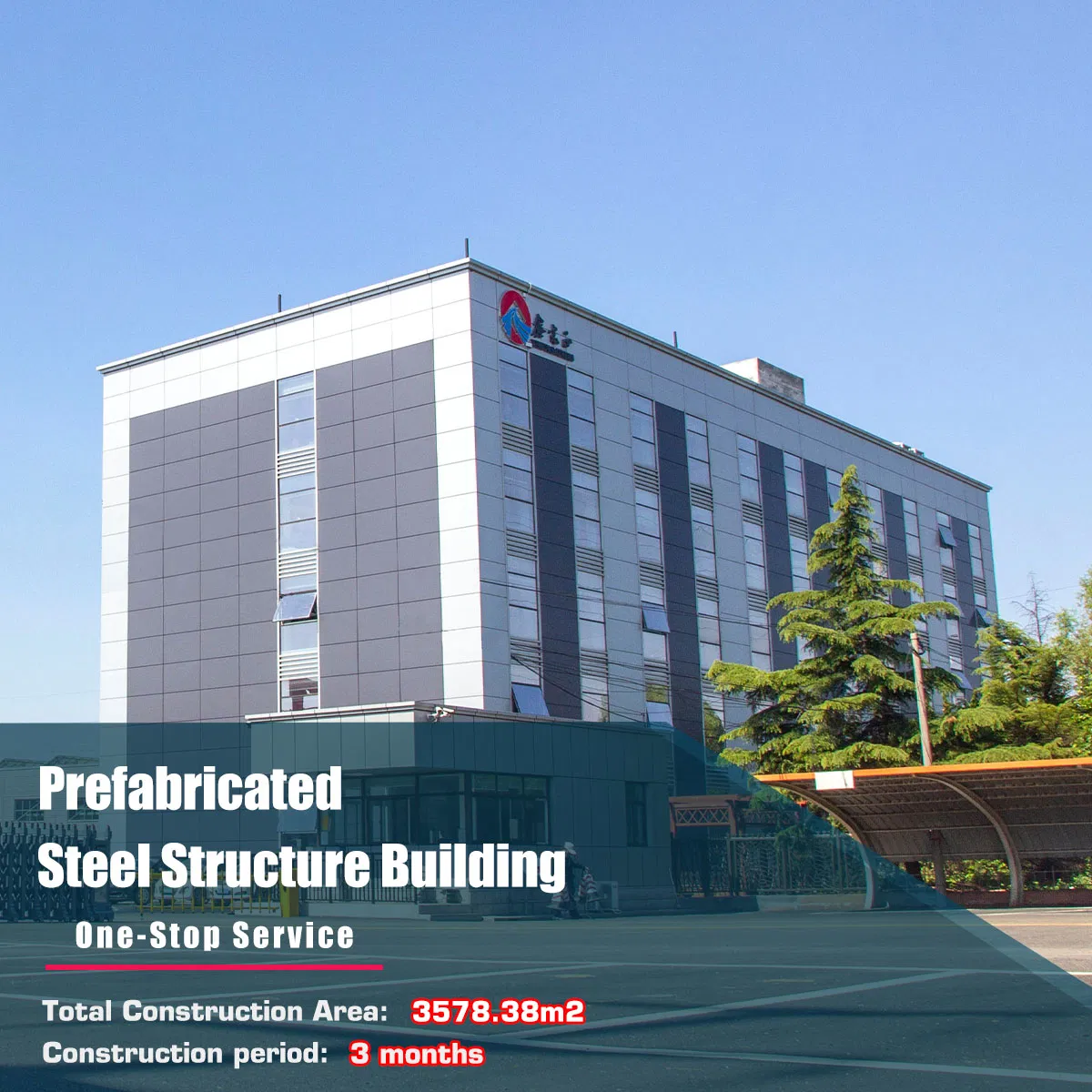

Large-Span Space High Rise Tempered Glass Modular Construction Industrial Commercial Hybrid House Office Prefab Prefabricated Metal Steel Structure Building

1 / 5

Large-Span Space High Rise Tempered Glass Modular Construction Industrial Commercial Hybrid House Office Prefab Prefabricated Metal Steel Structure Building

Send Inquiry

Product Description

Resource Integration & Delivery

Relying on local steel industry clusters, we establish strategic cooperation with raw material suppliers and logistics enterprises to achieve rapid inventory and cost optimization, shortening the delivery cycle by 10-15 days compared with the industry average.

EPC Service Capability

We provide integrated design, procurement, and construction services. Equipped with a professional installation team and project management system, we ensure the efficient landing of complex projects.

Applications & Characteristics

Application	Characteristic
Steel structure workshop High rise steel structure building Steel warehouse Large span steel frame Steel bridge Airport hanger Exhibition hall Gym shed Office building Poultry house Multi-storey building Storage shed	High strength & Light dead load Good plasticity and toughness Easy fabrication & High accuracy Save 65% of construction time Large span & Space flexible Reduce construction waste and noise 98% steel components can be recycled Environmentally friendly

Product Description

Technical Parameters

1. Material Parameters

Steel Grades
- Common grades: Q235, Q345, Q390, Q420 (Chinese standards); ASTM A36, A572 (U.S. standards); S235, S355 (European standards).
- Strength grades: Tensile strength ≥375-550 MPa, yield strength ≥235-420 MPa (varies by grade).
Section Steel Types
- Hot-rolled H-sections, square/rectangular tubes, circular tubes, I-beams, box columns.
- Cold-formed thin-walled sections (for secondary components).
Auxiliary Materials
- High-strength bolts: Grade 8.8, 10.9.
- Welding materials: Electrodes/wires compatible with base metal.
- Fireproof coatings: Intumescent (1-3 mm thickness) or cementitious (10-40 mm thickness).

2. Structural Component Parameters

Columns (Vertical Load-Bearing Members)
- Cross-sectional dimensions: H-sections range from H200×200×8×12 to H500×500×20×30 (mm).
- Box columns: 400×400×16 to 800×800×30, wall thickness 16-40 mm.
- Slenderness ratio control: λ ≤ 80, stricter for seismic design.
Beams (Horizontal Load-Bearing Members)
- Cross-sectional types: H-sections, I-beams.
- Span: 6-12 m.
- Depth-to-span ratio: 1/15-1/25.
Floor Systems
- Composite deck slabs: Profiled steel sheet (0.8-1.5 mm) + concrete (100-150 mm).
- Steel bar truss deck slabs: Span 3-6 m, suitable for large spaces.
Bracing Systems
- Types: Concentric braces (X/V-shaped), eccentric braces (preferred for seismic resistance).
- Sections: Angle steel, H-sections, or circular tubes.

3. Connection Parameters

Beam-Column Joints
- Rigid connections: Fully welded or bolted-welded hybrid (flange welded, web bolted).
- Hinged connections: Web bolted only.
- Seismic joints: Follow "strong joint, weak component" principle (e.g., stiffener plates).
Column Bases
- Embedded base: Depth ≥1.5× column section height in concrete foundation.
- Encased base: Encasing concrete height ≥2× column section height.
Bolted Connections
- Friction-type high-strength bolts: Preload-controlled.
- Bolt spacing: ≥3× bolt diameter; edge distance ≥1.5× diameter.

4. Design Parameters

Load Parameters
- Seismic fortification intensity: 6-9 degrees.
- Wind load: Basic wind pressure 0.3-0.7 kN/m².
- Live load: 2.0-5.0 kN/m².
Structural Performance Requirements
- Inter-story drift limit: 1/250, 1/50.
- Natural vibration period: Generally ≤0.1N (N = number of stories).
Corrosion & Fire Protection
- Anti-corrosion: Hot-dip galvanizing or epoxy zinc-rich primer.
- Fire resistance: 1-3 hours.

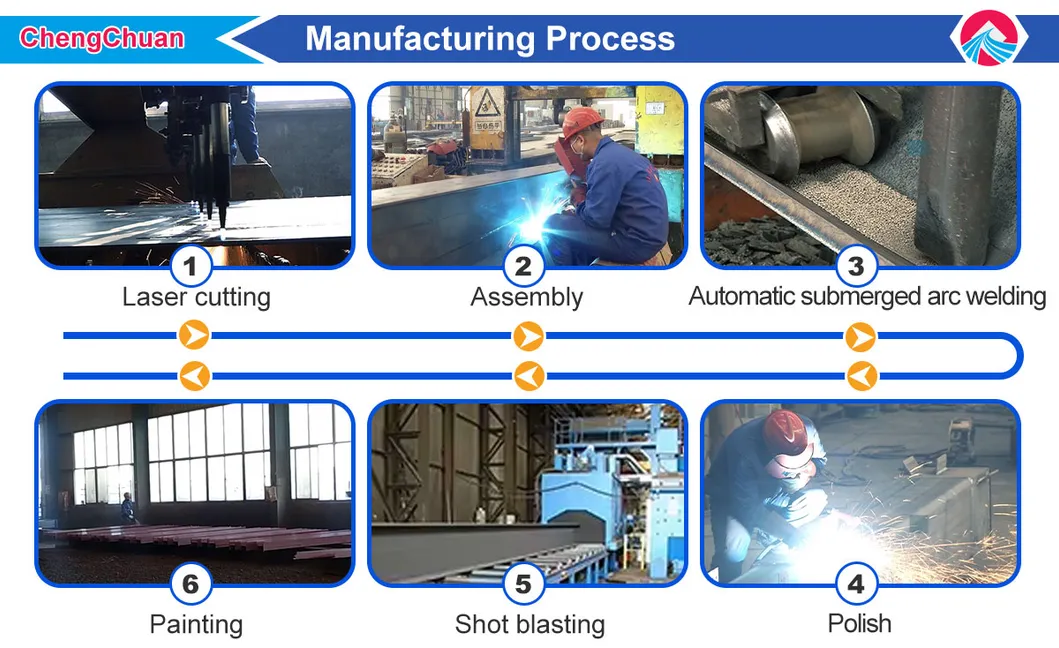

5. Fabrication & Installation Parameters

Fabrication Tolerance
- Component length: ±2 mm/6 m.
- Bolt hole spacing: ±1.5 mm.
Installation Requirements
- Verticality deviation: ≤H/1000 and ≤25 mm (total height).
- Weld quality: Grade I (full penetration) or Grade II (partial penetration).

6. Applications

Building Types: Offices, hotels, apartments, commercial complexes.
Typical Height: 6-40 stories (20-150 m).
Economic Spans: 6-12 m (main beams), 3-6 m (secondary beams).

We offer one-stop service from design, manufacture, delivery to installation and after-service.

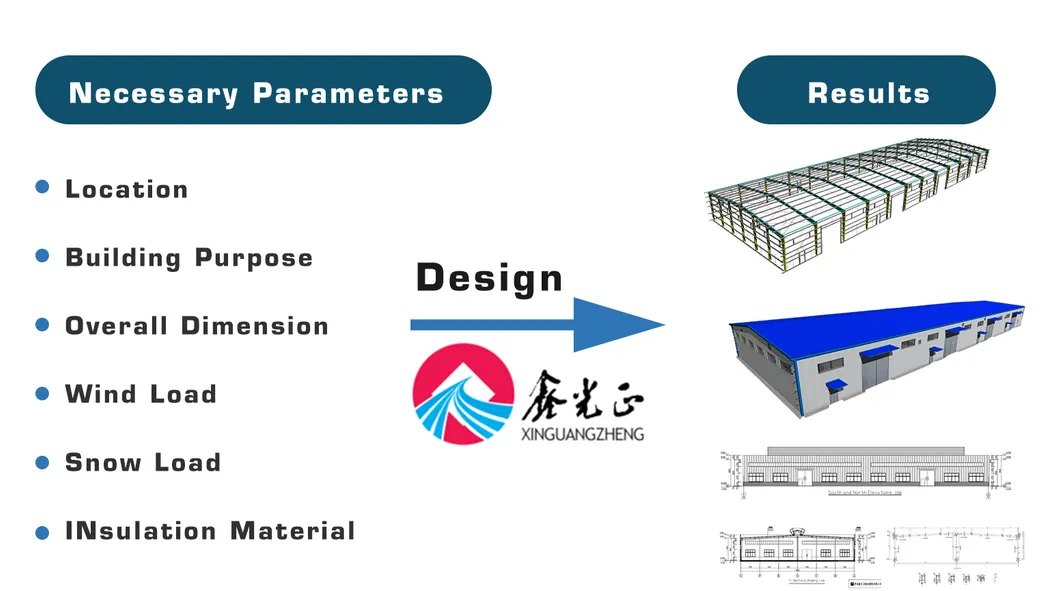

Custom Design Questionnaire

If you have drawings, welcome to share drawings with us, quotation will be done based on your drawings. Our design team will design the steel structure workshop/warehouse for you. Please provide the following information to get a customized drawing:

1. Location: Country / City

2. Size: Length * Width * Eave height (mm)

3. Wind Load: Max. Wind speed (kn/m², km/h, m/s)

4. Snow Load: Max. Snow height (kn/m², mm) & Temperature range

5. Anti-earthquake: Level

6. Brick Wall: Required? (Height: 1.2m, 1.5m, etc.)

7. Insulation: EPS, fiberglass wool, rockwool, PU sandwich panels, or simple metal steel sheets

8. Doors: Quantity & Size (Width * Height in mm)

9. Windows: Quantity & Size (Width * Height in mm)

10. Crane: Required? (Quantity, Max. lifting weight & height)

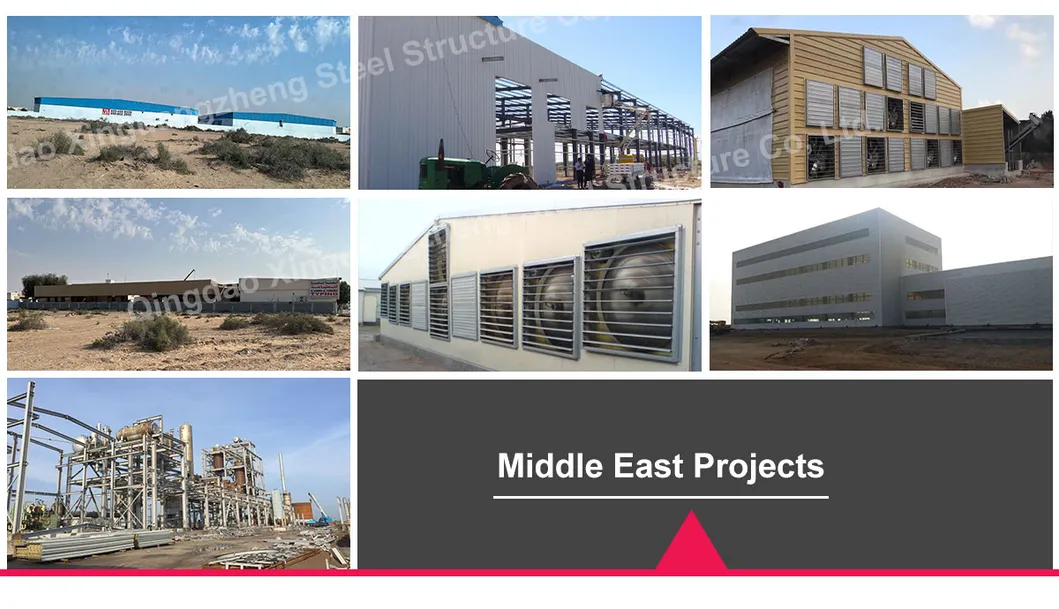

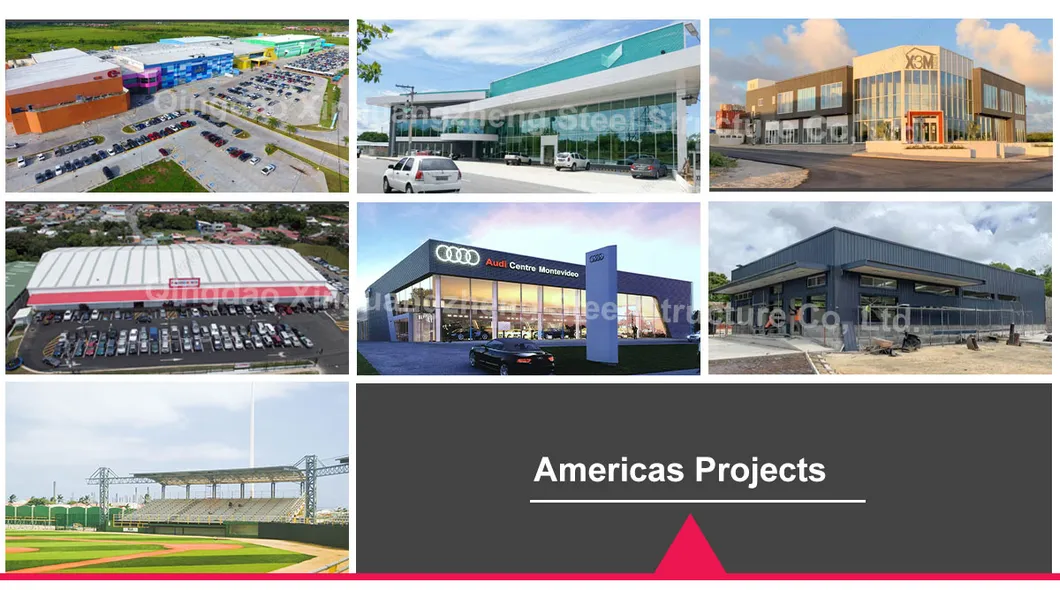

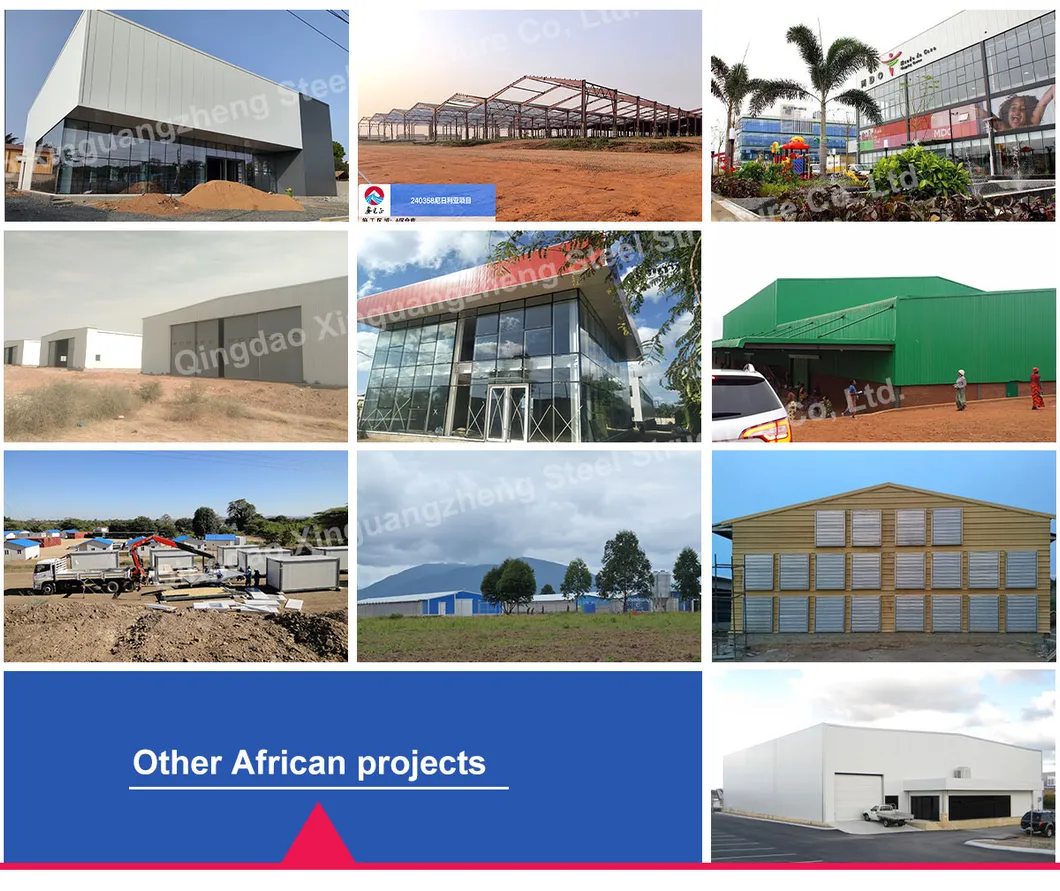

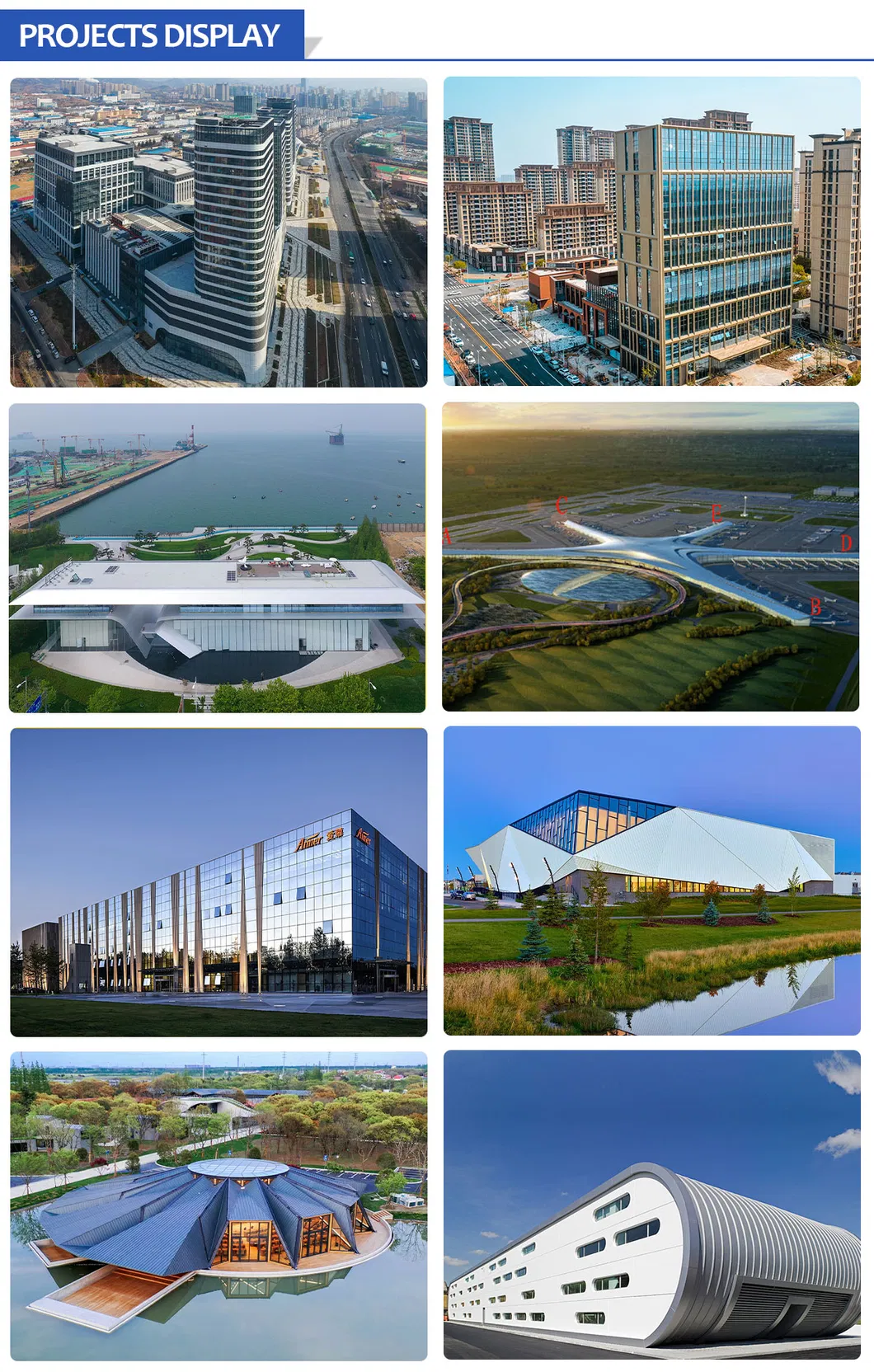

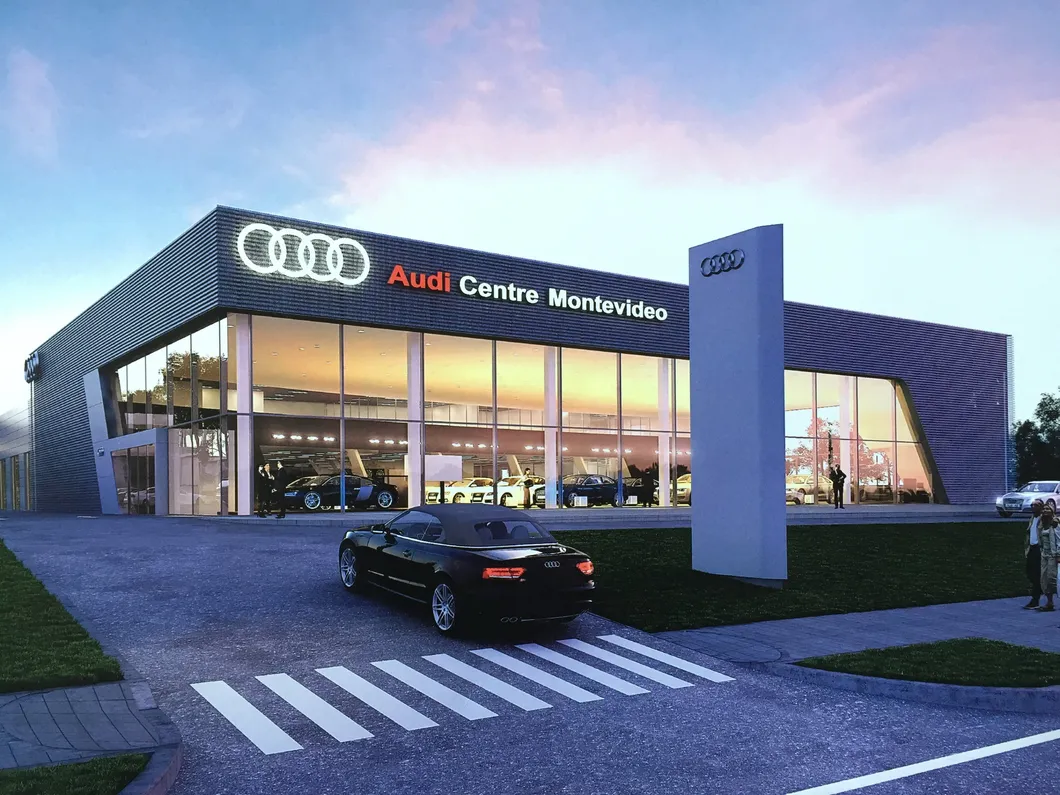

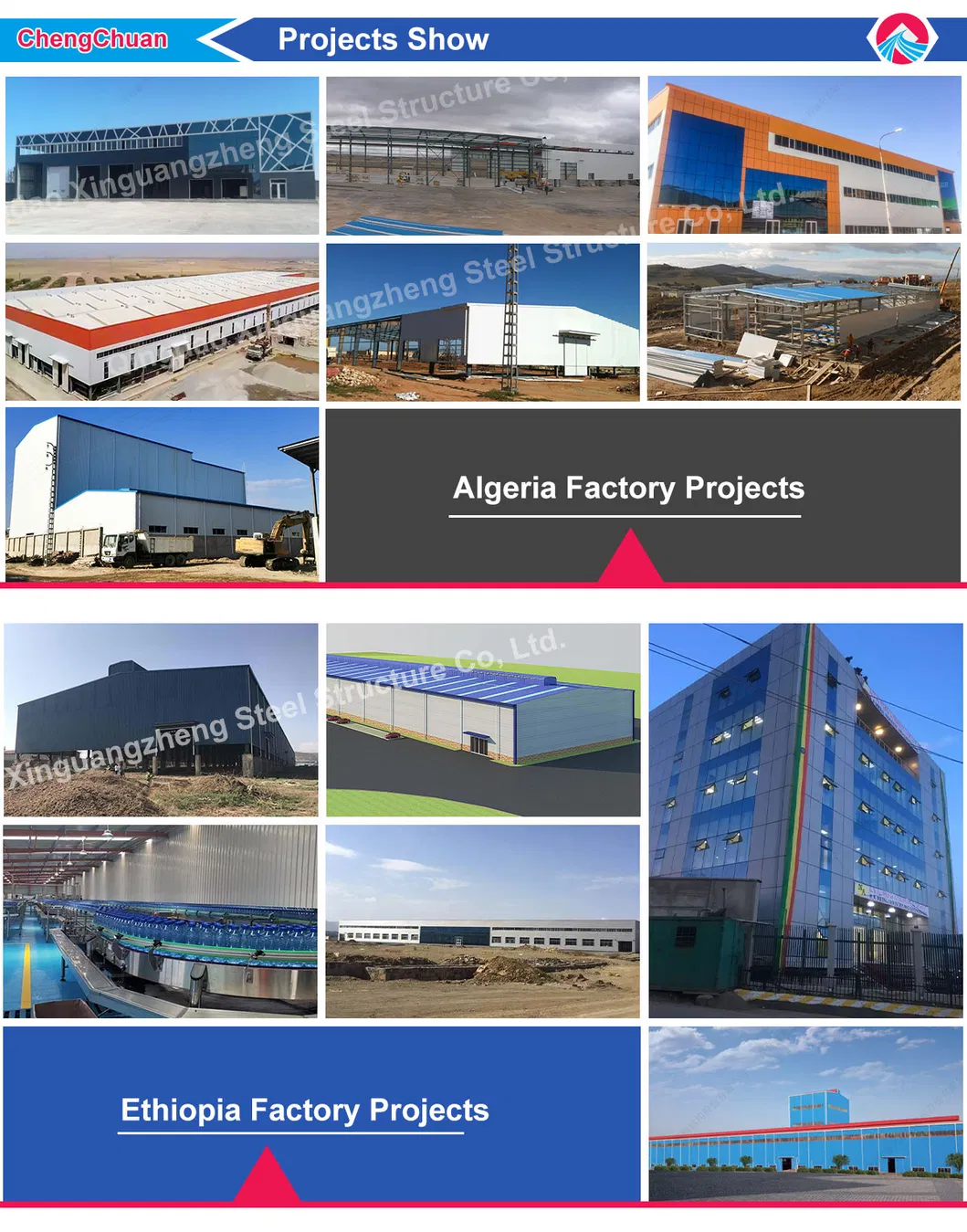

Overseas Projects Show

Certifications

Our Partners

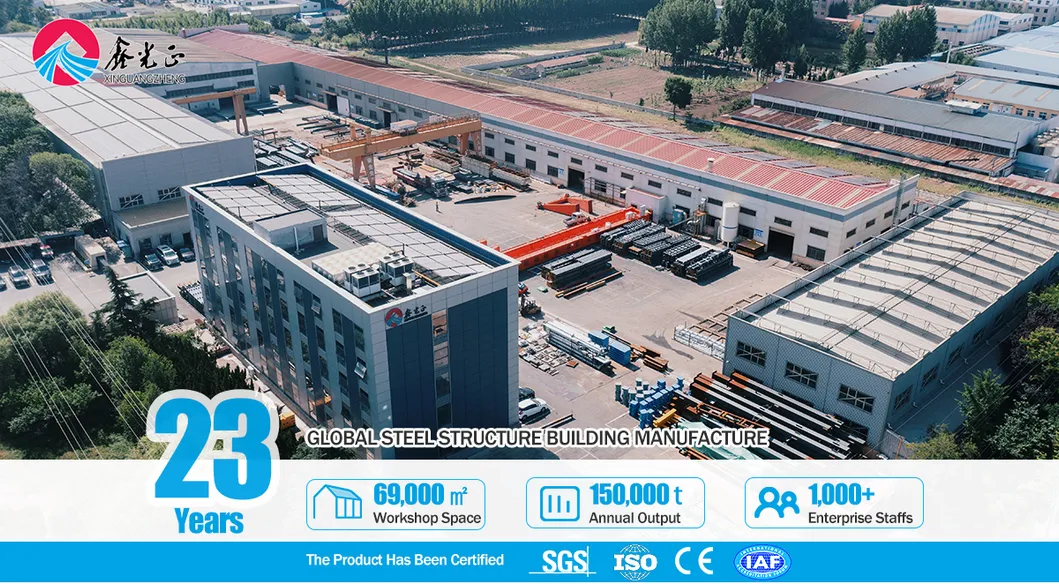

Company Profile

Our engineering services group is dedicated to providing customers with one-stop construction solutions. Our service pipeline spans from consulting and bespoke design to production, global logistics, construction supervision, and active after-sales support. Professional installation personnel and structural engineers provide overseas guidance and construction services for your projects.

To better serve the global market, we have obtained CE certification (EN1090 certificate), international general steel structure high-level certificates, and overseas contracting engineering business qualification certificates. We have actively cooperated with global enterprises to explore international development paths. Currently, our products and construction services have been exported to more than 120 countries around the world, including Asia, Africa, North and South America, Oceania, and Europe.

Our core competitiveness is derived from our long-term pursuit of technological breakthroughs. Supported by a robust technical team and university research partnerships, we continuously innovate in new steel-structure whole-house systems, products, and operational models to maintain an industry-leading position.

Service Scope

1. Project Consulting: Provide professional consulting services tailored to client requirements and formulate optimal construction solutions.
2. Design Services: Utilize advanced engineering design software to deliver highly accurate and efficient structural layouts.
3. Manufacturing: Rely on high-capacity production bases to manufacture precision steel components.
4. Logistics & Transportation: A complete logistics system ensures secure and timely delivery of steel products.
5. Construction: Experienced building installation teams ensure projects are completed safely and on schedule.
6. After-sales Service: Comprehensive support mechanism to resolve building operational issues.

Frequently Asked Questions

Q1. How can I get a quotation for my project?

A: If you already have structural drawings, please share them with us, and we will perform a quotation based on them. Alternatively, if you do not have drawings, you can provide us with key parameters (such as location, dimensions, local wind/snow loads, seismic requirements, and insulation options), and our design team will create a preliminary layout and quote for you.

Q2. Can we arrange a visit to your production plant before ordering?

A: Absolutely. You are welcome to visit our fabrication facilities to inspect our production capacity and quality standards. Please contact our service team in advance to schedule your tour, and we will be happy to arrange airport pick-up services.

Q3. Is your pricing competitive compared to other steel structure manufacturers?

A: Our objective is to deliver the absolute best cost-to-quality ratio. We optimize every link of the supply chain and rely on raw material clusters to reduce production costs. This ensures you get high-end, certified steel structures at highly competitive rates.

Q4. Do you support third-party container loading inspections?

A: Yes, we welcome third-party inspections. You may send an independent inspector to check product specifications during the production process, and oversee container loading before shipment to ensure compliance with global transport standards.

Q5. What designing software systems do you use for engineering?

A: We design complete structural solution drawings using professional engineering software, including AutoCAD, PKPM, 3D3S, and Tekla Structures (X-Steel). This allows us to design complex industrial and commercial buildings like multi-story offices, high-rises, logistics warehouses, and hangers.

Q6. What is the typical delivery timeline?

A: The overall delivery time depends strictly on the order volume and design complexity. Generally, we complete fabrication and deliver to the nearest domestic seaport in China within 30 days after receiving the initial project deposit.
