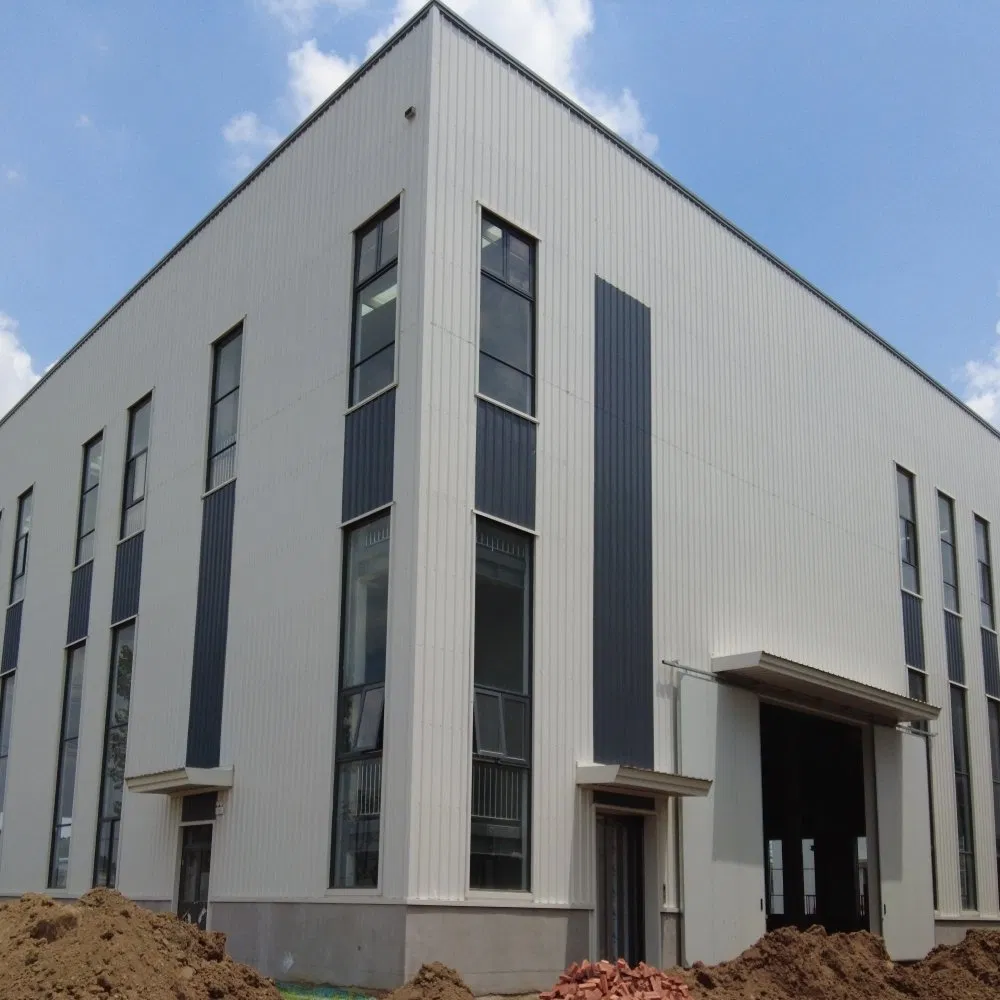

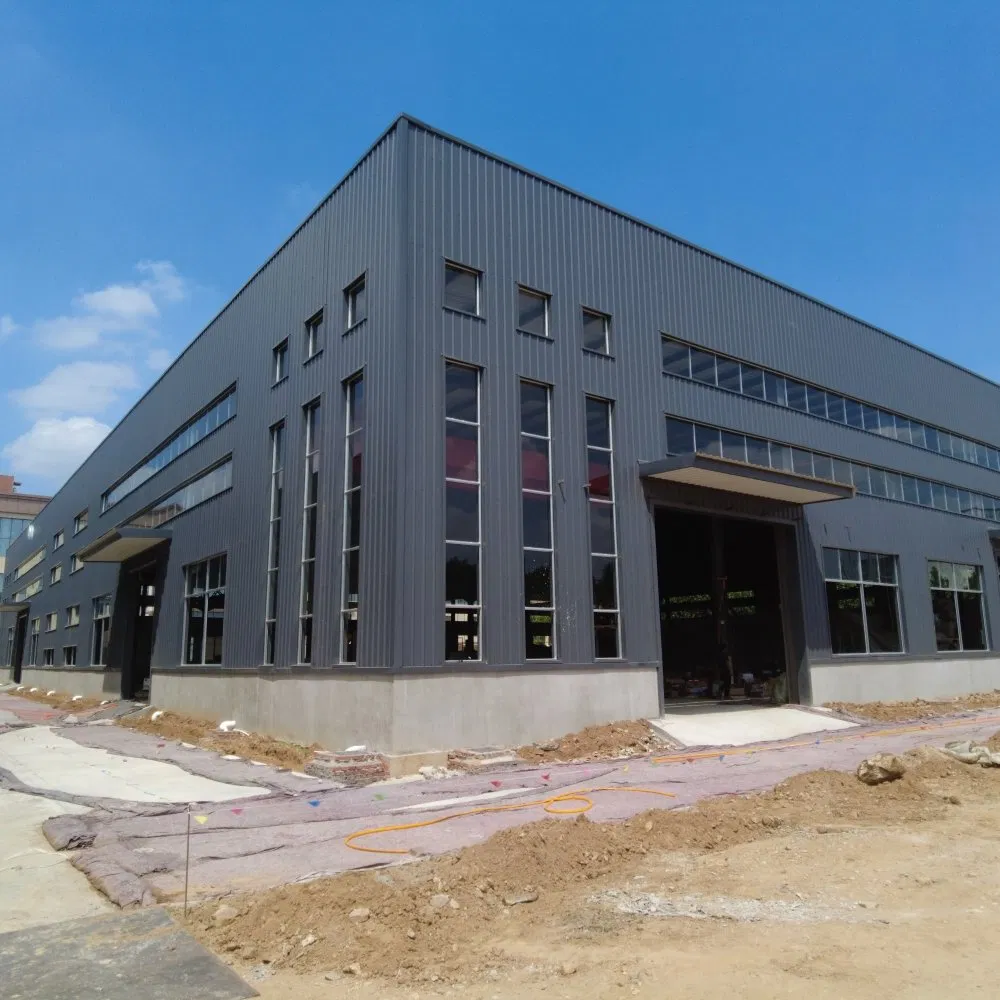

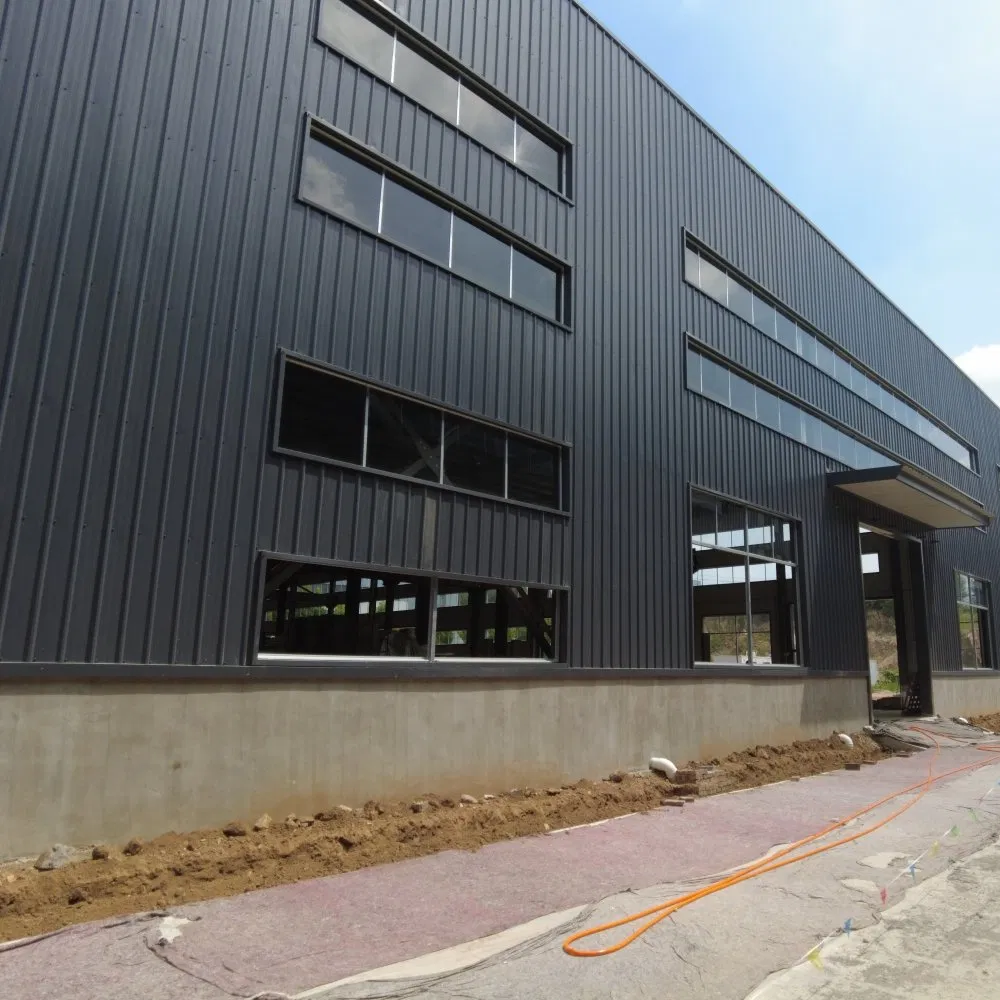

Professional Modular Design Fast Installation Seismic Resistance Prefab/Prefabricated Metal Frame/Steel Structure Warehouse/Workshop Building
The main load-bearing component of industrial steel warehouse building is steel structure. It includes pillars, top beams, basements and supporting systems. It also includes wall and roof purlins. Q345B steel for the main frame and Q235B steel for the support system. Monochrome metal panels are used for the walls and roof. Use sandwich panels according to local temperature conditions. When calculating the quotation for a steel structure warehouse, dimensions are essential, including length, width and height. Local wind speed and snowfall will also affect construction costs.
| Item Name | Specification | Material Parameter | Technical Treatment |
|---|---|---|---|
| Column | H shape, Box, steel pipe, Hot rolled sheet | Q235B, Q345B | Paint or Hot dip galvanized |
| Beam | H shape, steel Truss, Hot rolled sheet | Q235B, Q345B | Paint or Hot dip galvanized |
| Bracing | Steel rod, Steel pipe, Angle steel | Q235B, Q345B | - |
| Purlin | C or Z shape, Thickness: 1.8mm~3.0mm | Q235B, Q346B | Hot dip galvanized |
| Wall and Roof Panel | EPS, Rock wool, Pu, Glass wool Sandwich panel or Single sheet | Steel T=0.426~0.8mm, Insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet, T=1.0~1.5mm | Paint or Hot dip galvanized |
| Window | Alloy-Glass, Aluminium alloy-shutter | T=1.0~2.0mm | Alloy |
| Lighting Panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion: 2.2x10-5/cm/cm/ºC | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel, stainless steel, PC | Paint or Hot dip galvanized, 304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot dip galvanized, 304 |
| Downpipe | PVC pipe, Color steel pipe T=0.5mm | Φ110, 160, 200 | Paint |
| Bolt | Ordinary, high strength | 10.9S, 4.8s | Hot dip galvanized |
| Anchor Bolt | Steel rod M24, M27, M30 | Q235B | - |

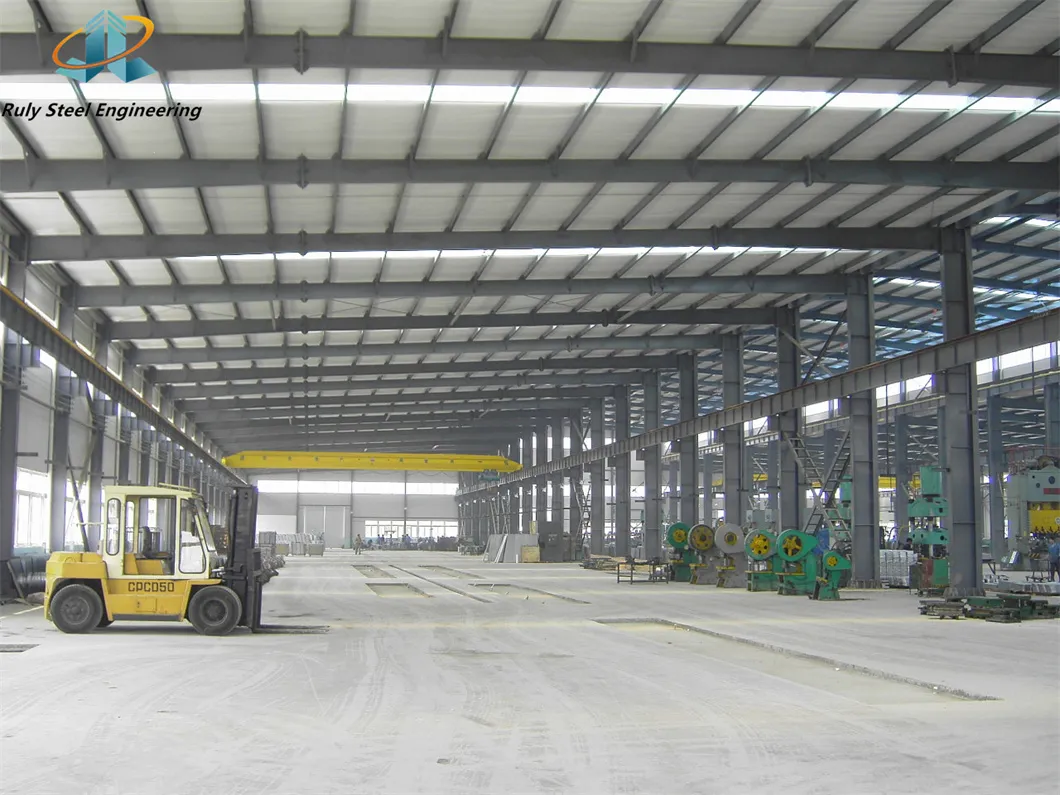

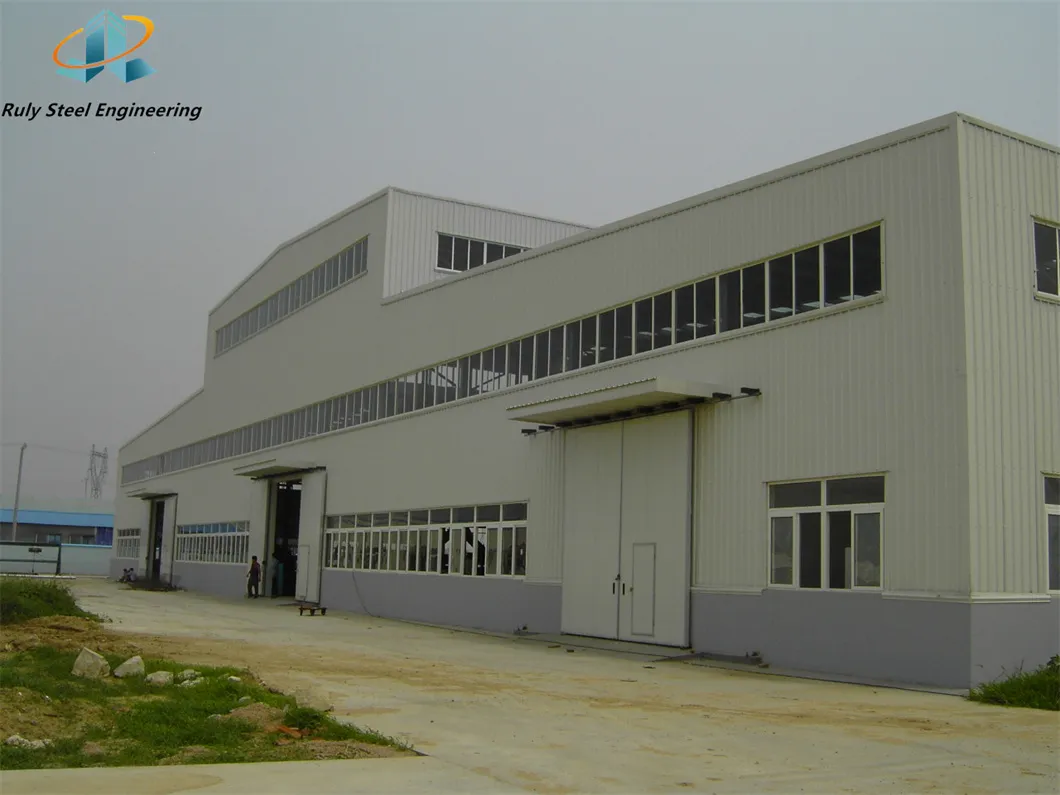

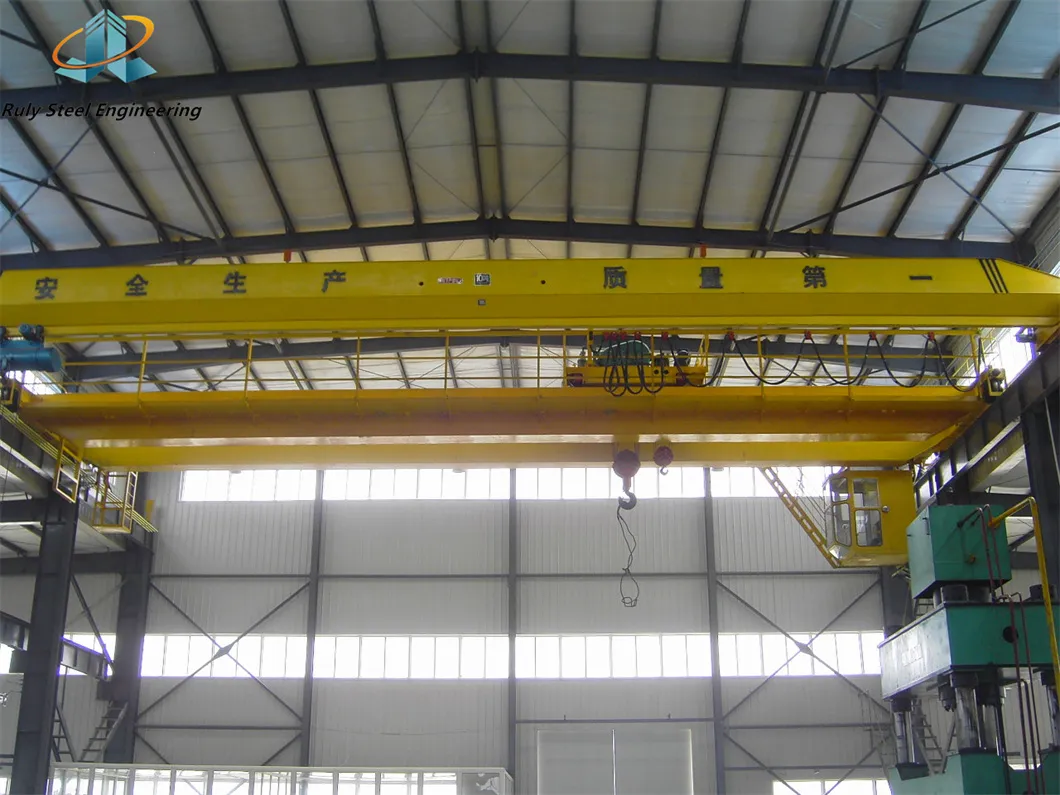

Project Cases 1

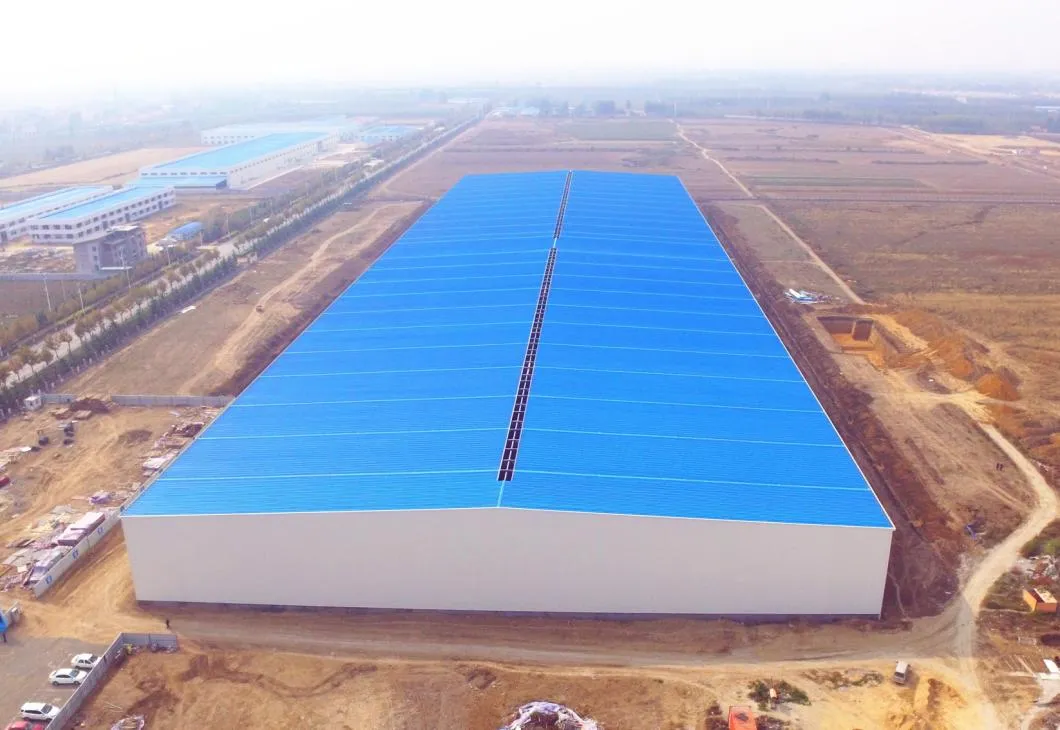

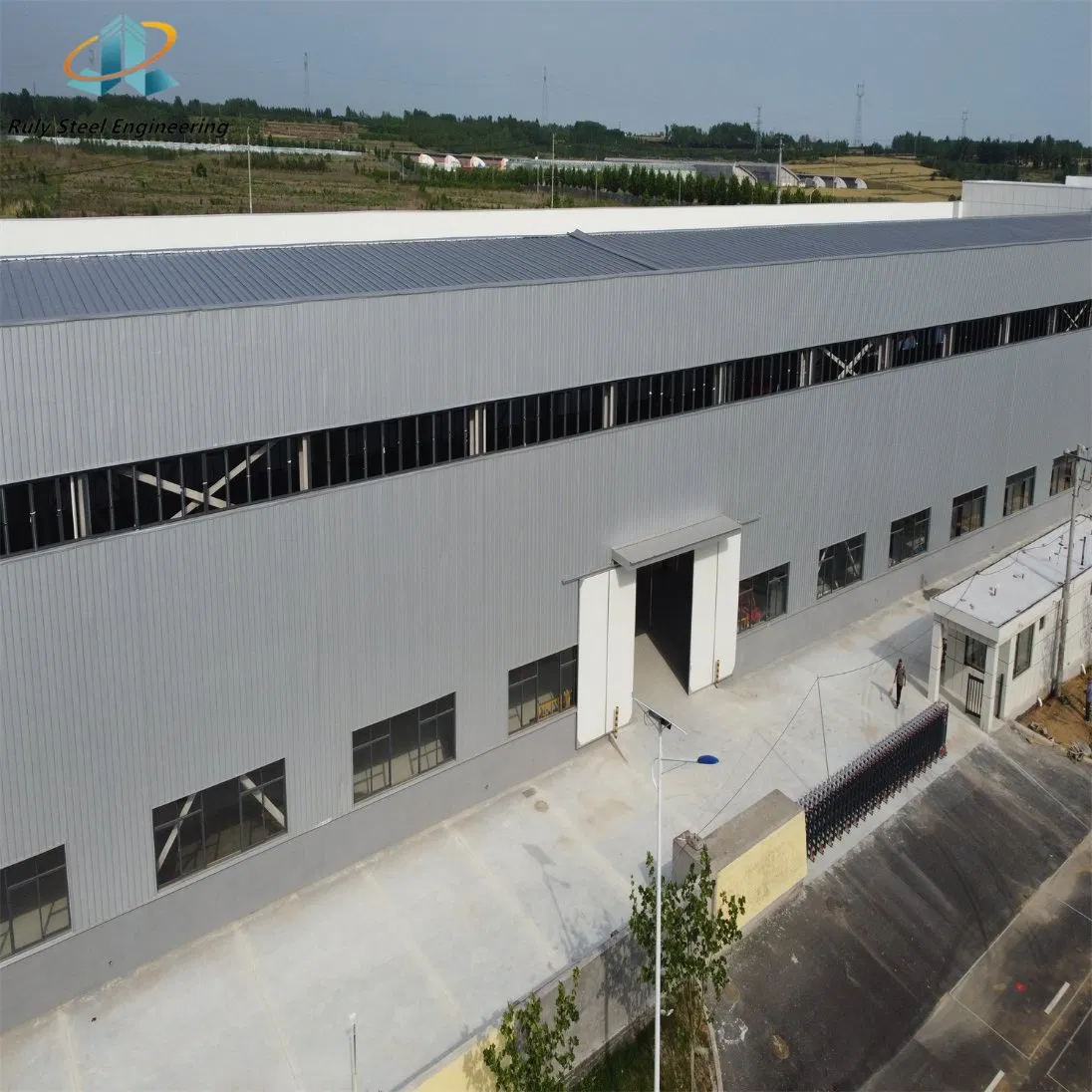

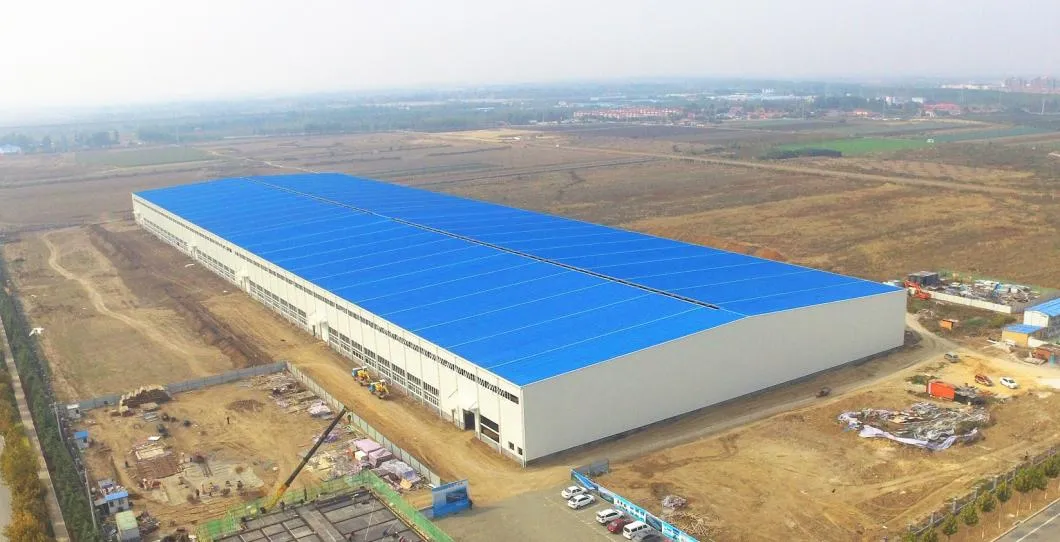

Project Cases 2

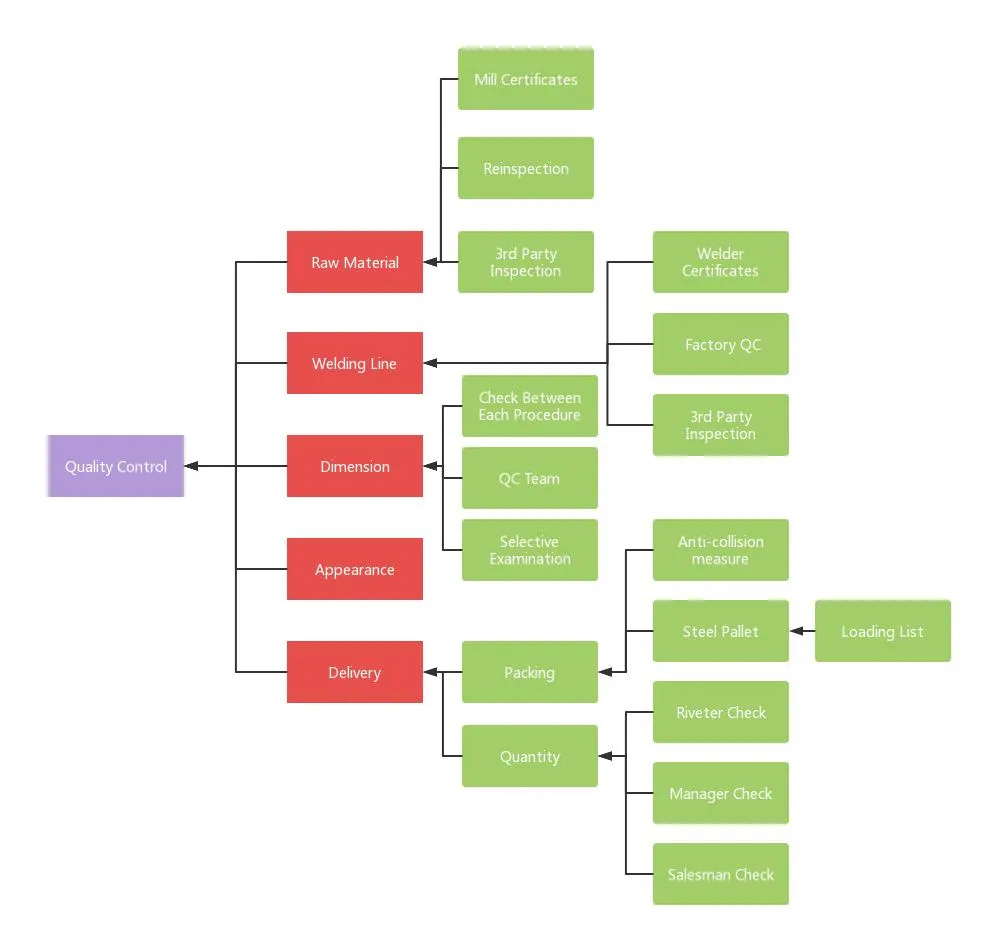

Raw Material Quality Control:

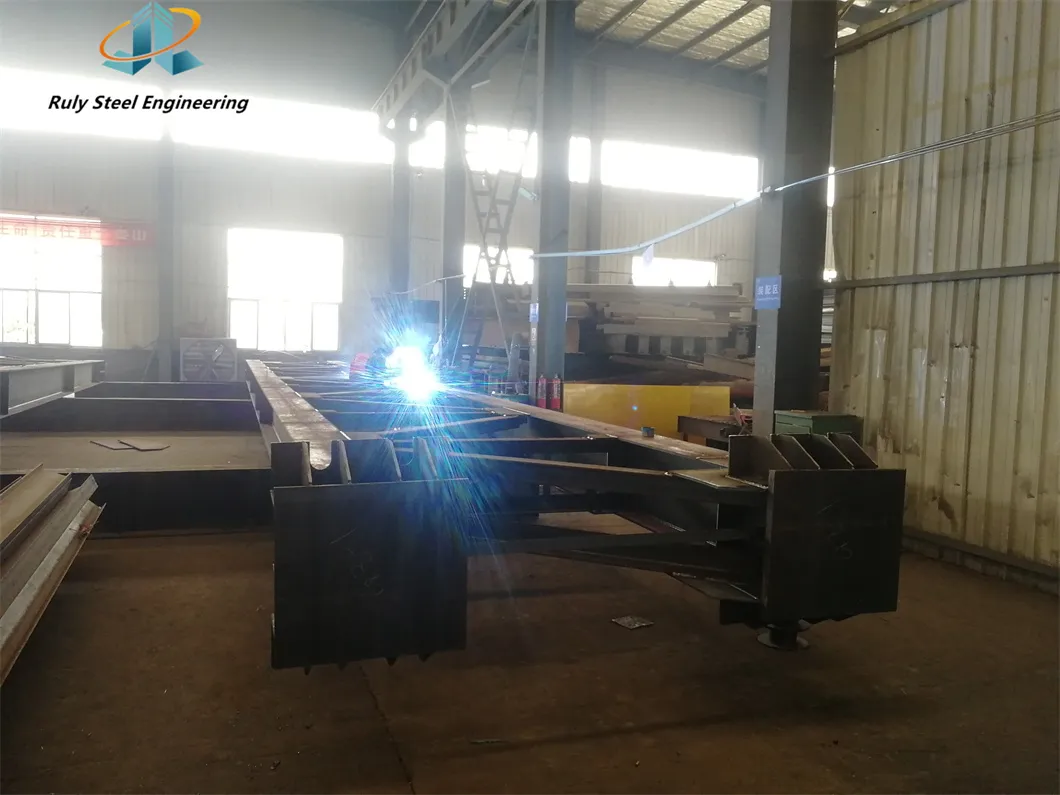

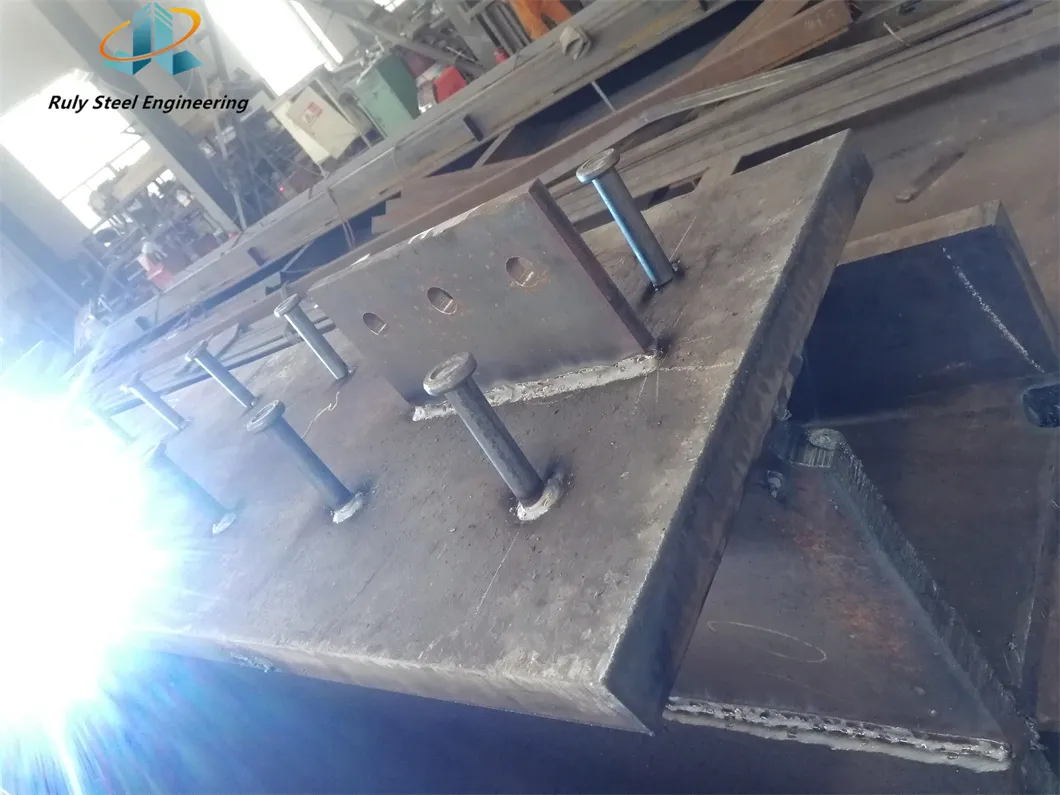

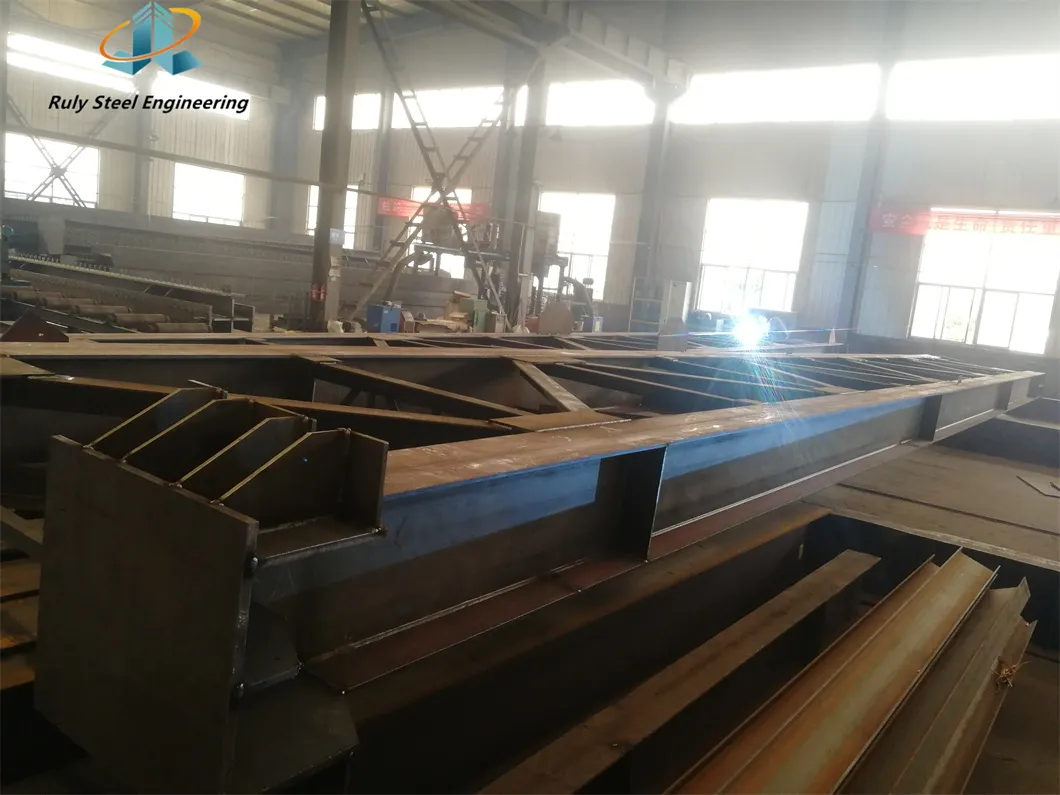

Structural Steel Fabrication Quality Control:
Surface Treatment Control:

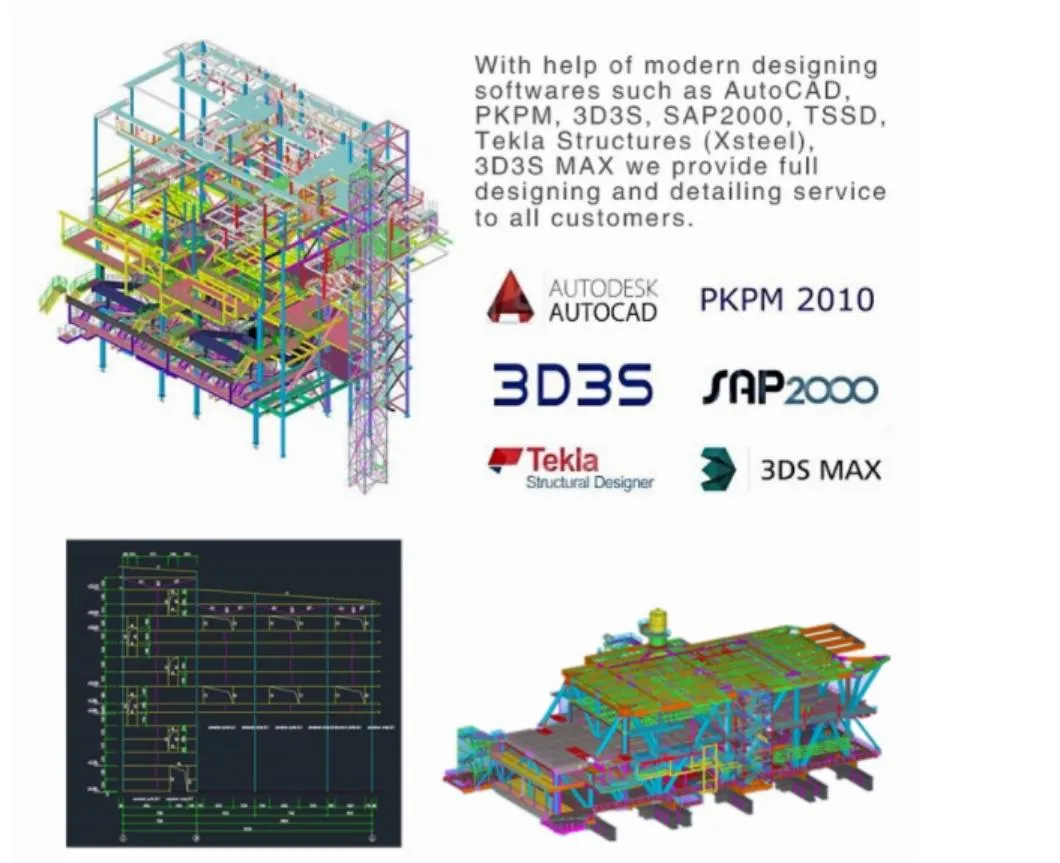

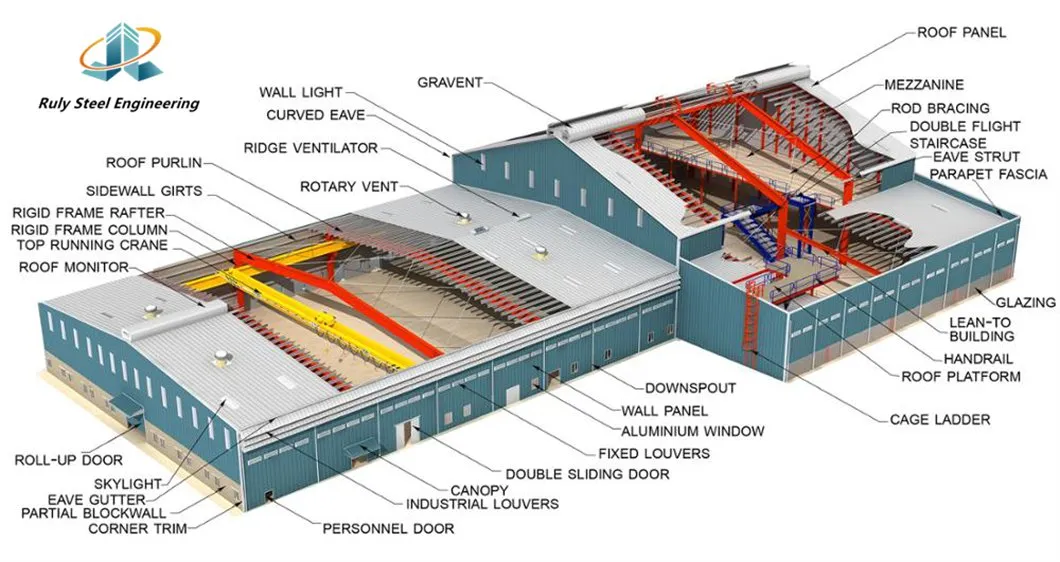

Preliminary layouts, detailed 3D Tekla models, and structure installation drawings are formulated to secure the successful execution of your project framework.
Please review and clarify the following parameters before requesting a pricing calculation. Feel free to supply details where known.
| No. | Required Parameter Details | Your Specifications |
|---|---|---|
| 1 | Location (Where will the construction take place?) | ________ Country, ________ Area |
| 2 | Size Requirements | ________ mm (Length) * ________ mm (Width) * ________ mm (Height) |
| 3 | Wind Load (Maximum Wind Speed) | ________ kn/m², ________ km/h, ________ m/s |
| 4 | Snow Load (Maximum Snow Depth) | ________ kn/m², ________ mm |
| 5 | Seismic Protection Level | ________ Level |
| 6 | Brick Wall Requirement | If needed: 1.2m high / 1.5m high |
| 7 | Thermal Insulation Requirements | Suggested sandwich panels (EPS, glasswool, rockwool, PU) or basic steel cladding sheet |
| 8 | Door Quantity & Size | ________ Units, ________ (width)mm * ________ (height)mm |
| 9 | Window Quantity & Size | ________ Units, ________ (width)mm * ________ (height)mm |
| 10 | Industrial Crane Requirement | If needed: ________ Units, Max capacity: ________ tons, Lifting height: ________ m |
