Basic Info.
Model NO.
GST-steel structure workshop-019
Feature
Anti-Corrosion, Earthquake Resistance, Easy To Install
Surface Treatment
Hot-DIP Galvanized, Painting
Drawing Design
Autocad, 3D, Pkpm, Sketchup
Purlin
C-Section or Z-Section
Steel Type
Carbon Structural Steel
Type of Steel
H-Section Steel
Application
Steel Workshop, Steel Structure Platform
Transport Package
Steel Pallet
Specification
customizable
Packaging & Delivery
Package Size
1150.00cm * 290.00cm * 301.00cm
Product Description
Product Overview: According to the layout provided by the customer's equipment supplier, our designers designed and quoted the steel structure part. Roof and wall using color steel plate and glass silk wool composite and glass silk wool sandwich board two practices, different areas to take different methods, good sound insulation and heat preservation at the same time also save costs.

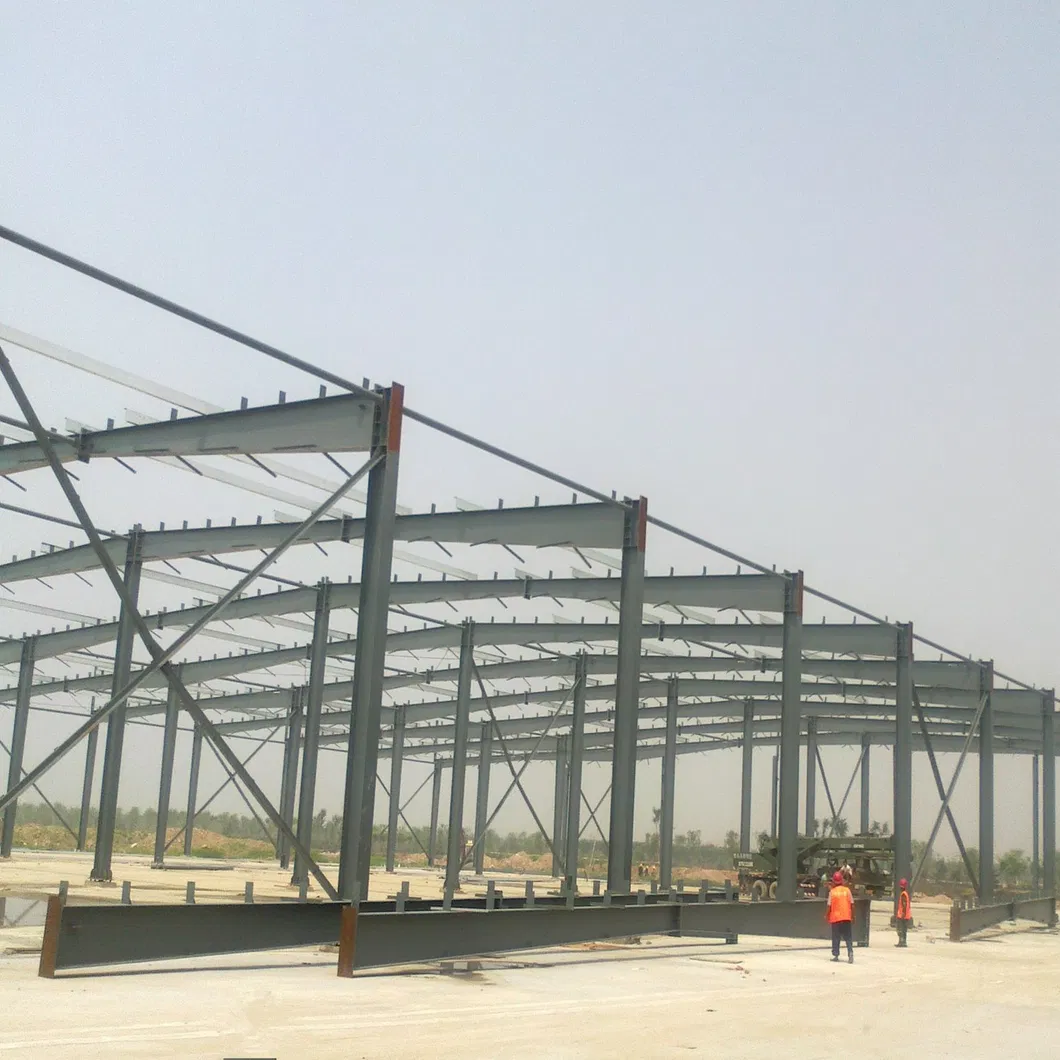

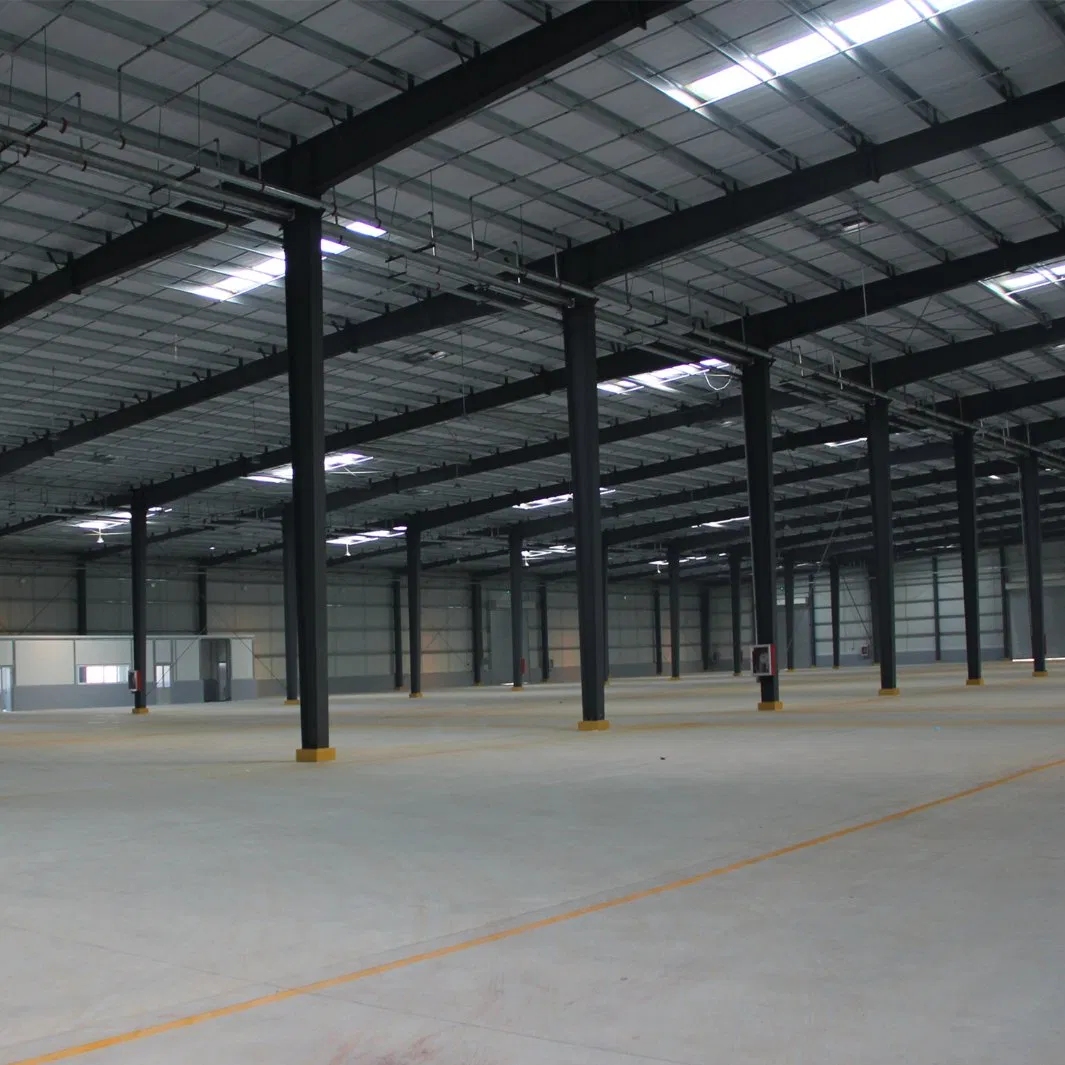

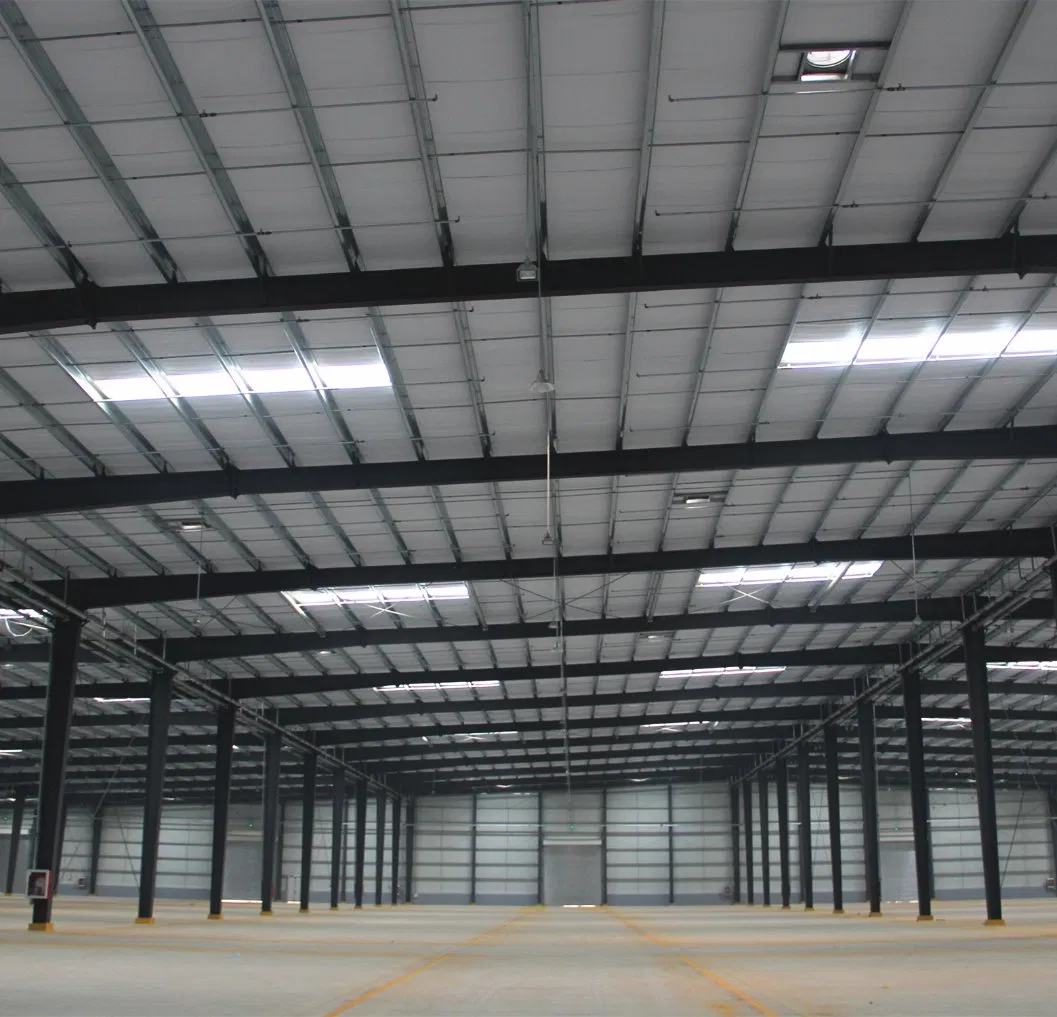

Portal rigid frame structure, the main structure is composed of high-quality processed steel components such as H steel, Round tube, C-shaped steel, angle steel and round steel. It is composed of multiple processes such as welding, sandblasting, and painting (some steel components are galvanized). The engineer's design calculation and multiple tests ensure that the amount of steel used is optimized and the cost is saved under the condition of safety and durability.

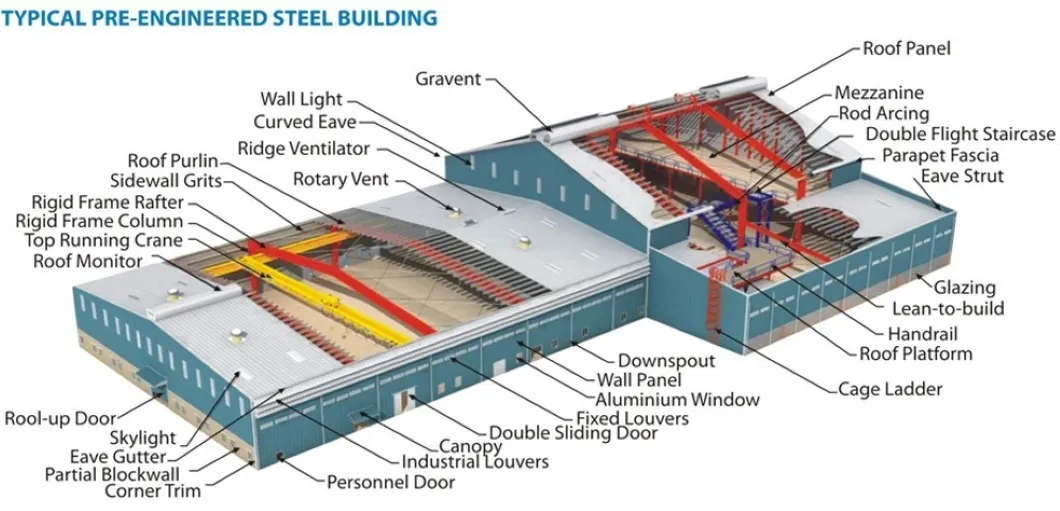

| Component |
Description |
| Steel Columns |
Vertical load-bearing members that support the weight of the structure and transfer loads to the foundation. |
| Steel Beams |
Horizontal load-bearing members that distribute the weight from the roof and upper floors to the columns. |
| Roofing and Wall Panels |
Steel sheets used to cover and enclose the workshop, providing weather protection and insulation. |
| Insulation |
Material used between panels to regulate temperature, control sound, and enhance energy efficiency. |
| Windows |
Fixed or operable openings in walls, providing natural light, ventilation, and visibility. |
| Foundation |
The base that supports the entire structure, usually made of concrete, which the columns are anchored to for stability. |
| Ventilation Systems |
Mechanisms for air exchange and proper airflow, essential for maintaining a comfortable and safe working environment. |
Product Advantages
Steel construction offers numerous advantages that make it a popular choice for various building projects. Some of the key advantages include:
| Item |
Details |
| Title |
Steel Structure Workshop |
| Description |
A steel structure workshop is a facility designed and constructed primarily using steel components, providing a versatile and durable space for various industrial and commercial activities. |
| Purpose |
To provide a safe and efficient working environment for manufacturing, assembly, storage, and other industrial processes. |
| Advantages |
High strength and durability, capable of withstanding heavy loads and adverse weather conditions. |

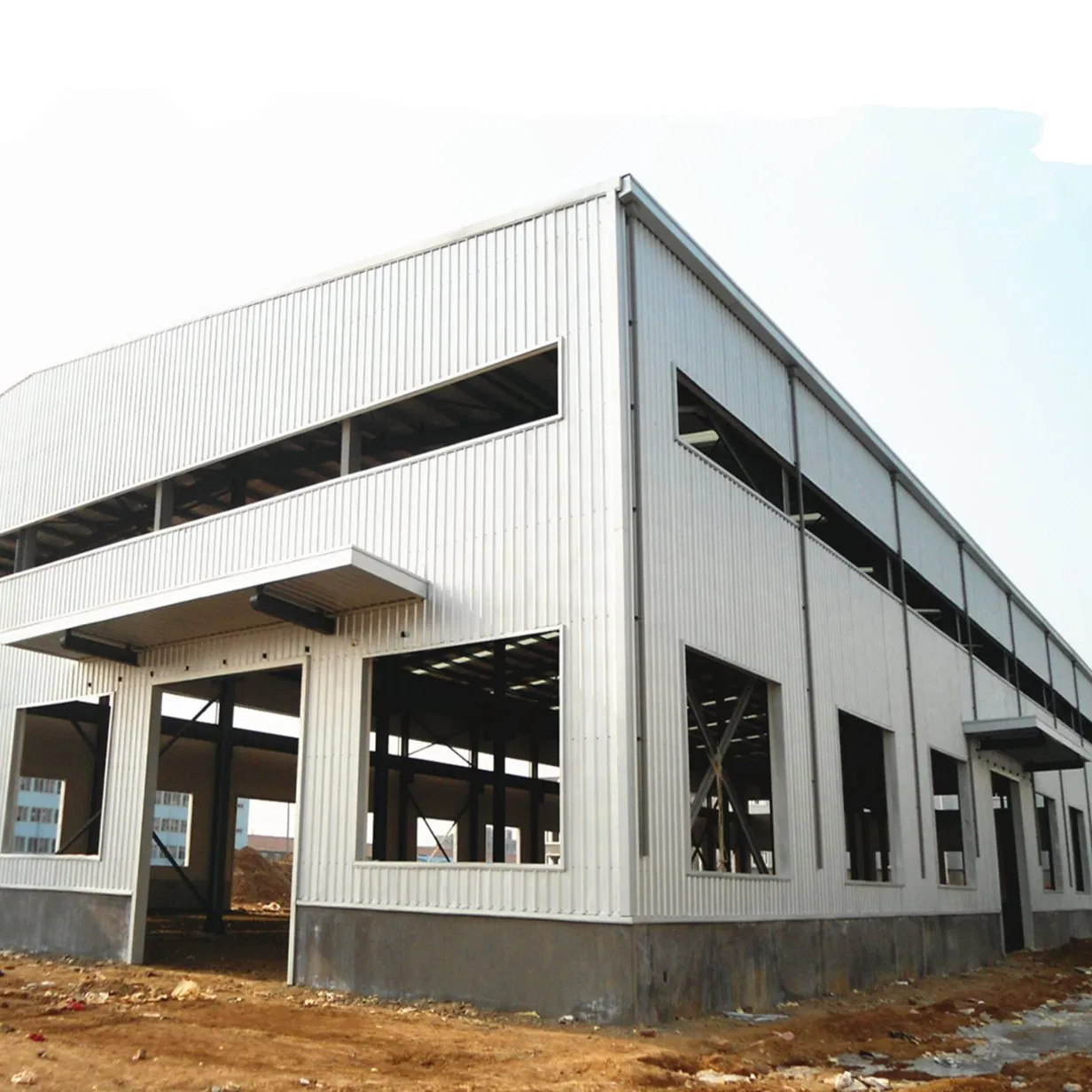

Prefab steel Structure workshop buildings are used for industrial production in which all steel structures are painted and then delivered to the project site for installation.
And because the steel structure can be manufactured in the factory and installed on-site, the construction time is significantly reduced. Due to the steel, it can dramatically reduce construction waste and is more environmentally friendly. Therefore, it is widely used in industrial buildings and civil buildings.

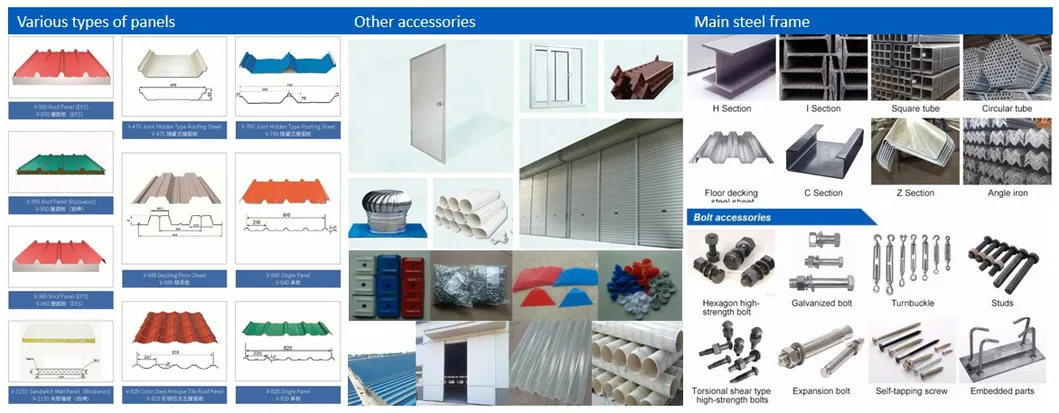

Project Parameters
| Parameter Type |
Specification Details |
| Usage | Warehouse, School, Temporary Offices, Workshop, Hangar, Exhibition Hall, Shopping Mall, Stadium |
| Certification | ISO, CE |
| Customized | Customized |
| Standard | GB, BS, ASTM, ISO |
| Connection Form | Bolt Connection |
| Application | Steel Workshop, Steel Structure Platform |
| Key Word | Cheap, Low Cost, Economic, Qualified |
| Main Steel Frame | H Section Steel |
| Purlin | C or Z Section Steel |
| Steel Grade | Q235 & Q355 Low Carbon Steel |
| Surface Treatment | Painted or Galvanized (Gi) |
| Wall and Roof Sandwich Panel | EPS, Rock Wool, Glass Wool, PU, PUR, PIR |
| Panel Thickness | 50mm/75mm/100mm sandwich panel & 0.4mm-1.0mm Colored steel panel |
| Window | Aluminum Alloy Window or PVC Window |
| Door | Sliding Door or Rolling Door |
| Main Design Parameter | Wind Load, Snow Load and Earthquake Resistance |
| Transport Package | Seaworthy Package |
| Specification | According to Customers′ Requirement |
| Origin | China |

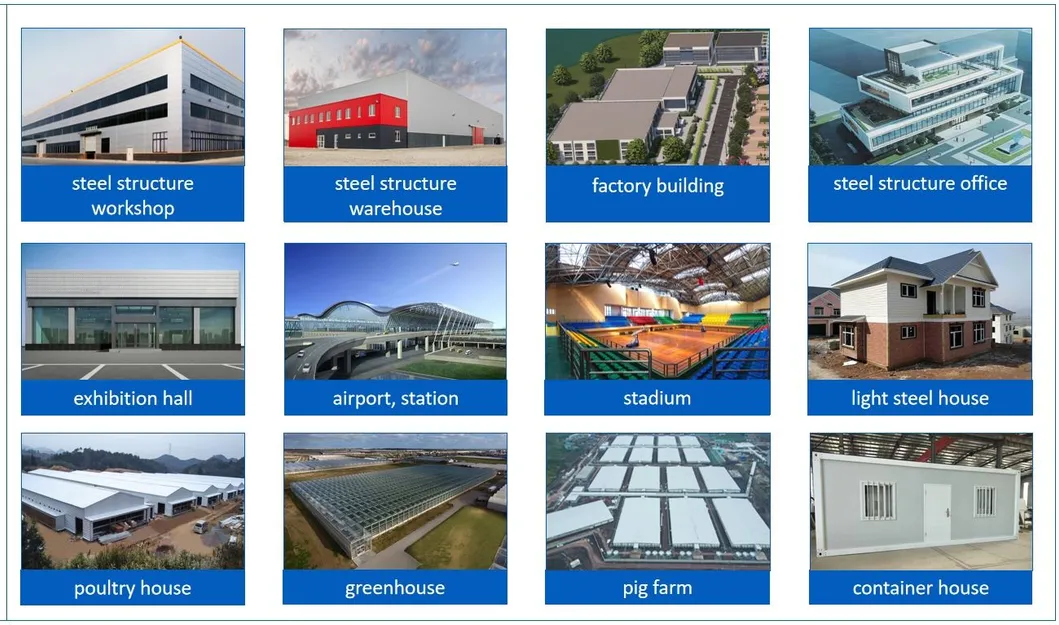

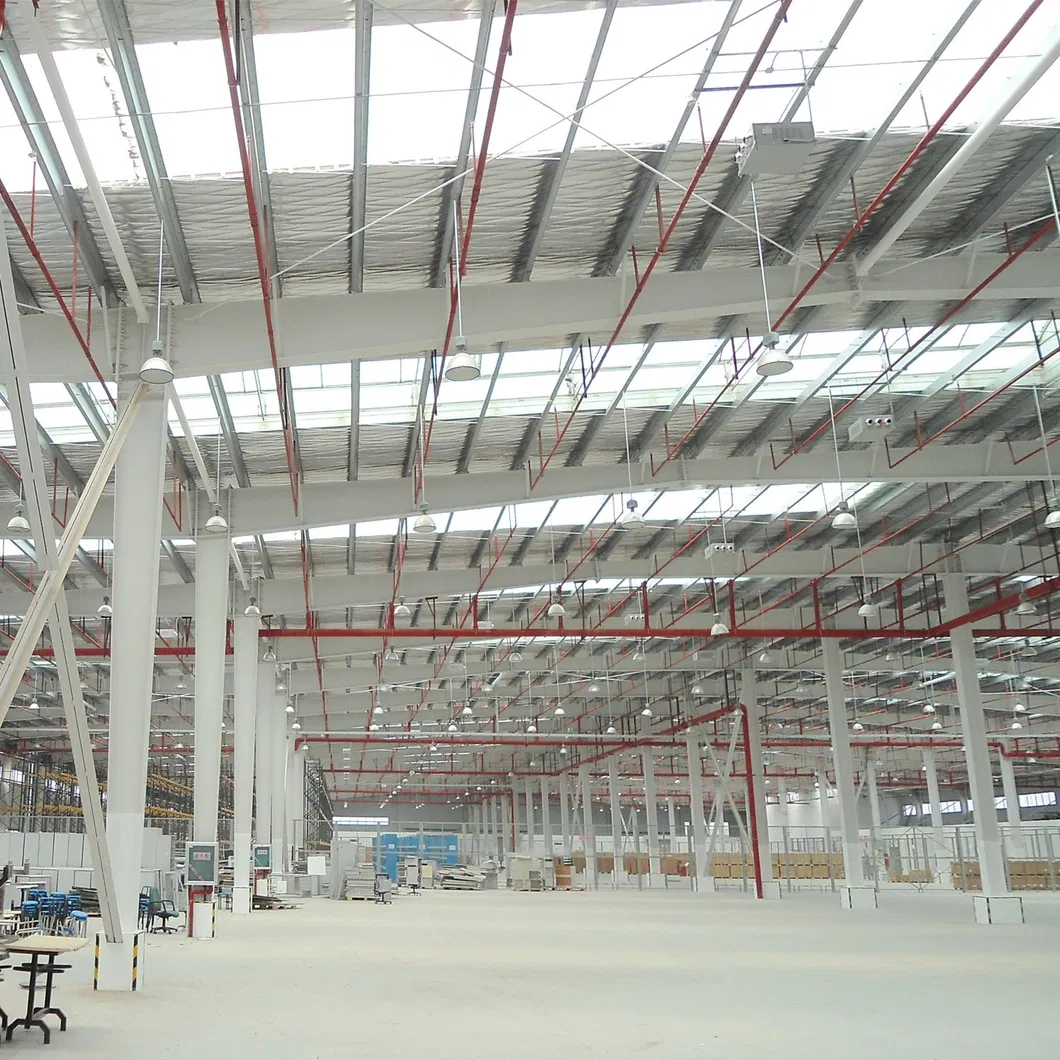

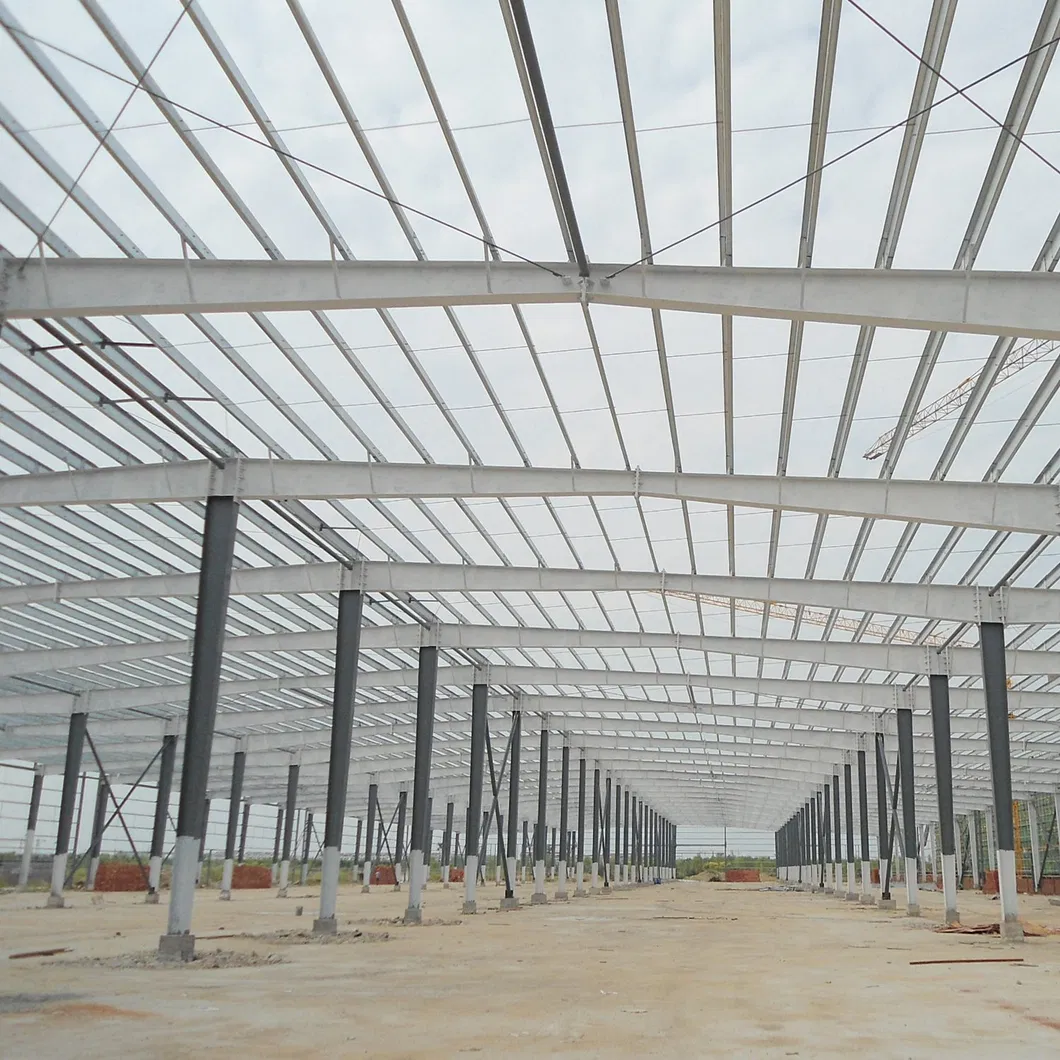

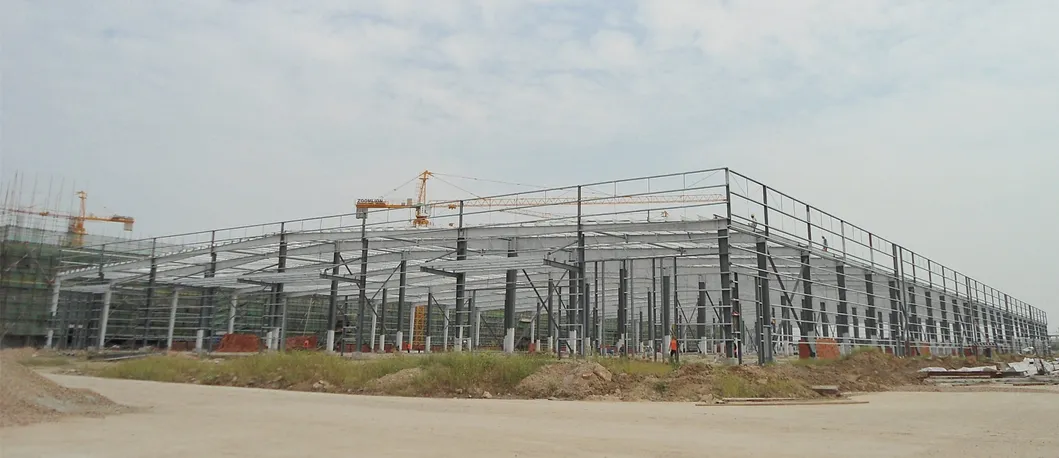

Project Exhibition

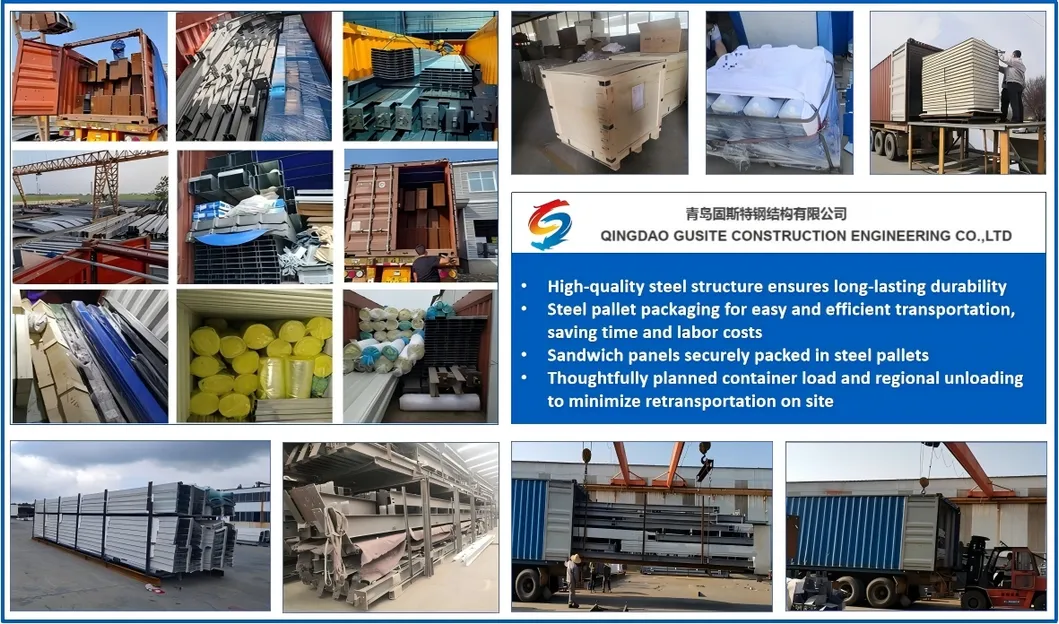

Packaging & Transportation
- All standard components are packed in plywood box.
- All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
- All steel structures are packed in steel pallets together into container, saving loading and unloading time and labor costs.
- All sandwich panels are packed in steel pallets.
- Material components will follow a detailed container load plan, as well as a regional unloading plan to avoid retransportation on site.
Production Capacity

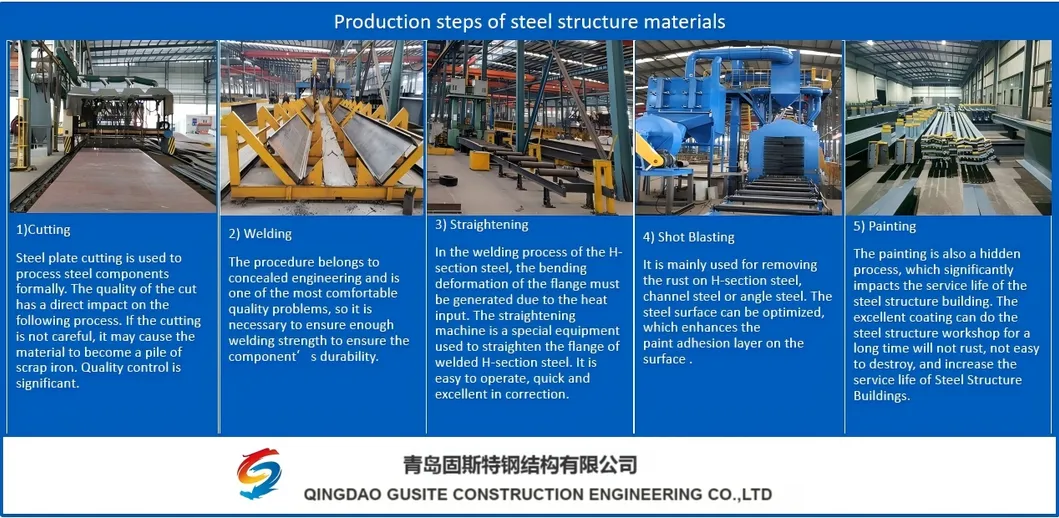

Our factory has multiple production lines, equipped with steel cutting, shot blasting, stamping, bending, welding, and forming equipment. The technology and equipment are advanced, ensuring that the steel structure is of good quality and highly durable.
We can produce more than 30 kinds of series products with different structures and specifications. Equipped with complete processing and manufacturing machinery and strong installation support, we supply full sets of steel structure materials alongside complete installation guidance and technical consultation.
| No. |
Production Line |
Annual Production Output |
| 1 | 2 composite board production lines | more than 1 million meters/year |
| 2 | 5 color steel plate production lines | 2 million meters/year |
| 3 | 2 H-type steel CNC production lines | 20,000 tons/year |
| 4 | 1 C-type steel production line | 2,500 tons/year |
| 5 | 1 Z-steel production line | 2,000 tons/year |
Certified with global export standards including CE certification [EN1090 certificate], ISO9001 certificate, and related foreign contracted project management qualifications.
Design and Management Ability
Our engineers are highly familiar with all aspects of steel structure design and detailed shop drawings. As an experienced and efficient team, they accurately map customer requirements to optimized structural designs, significantly saving our clients' time.

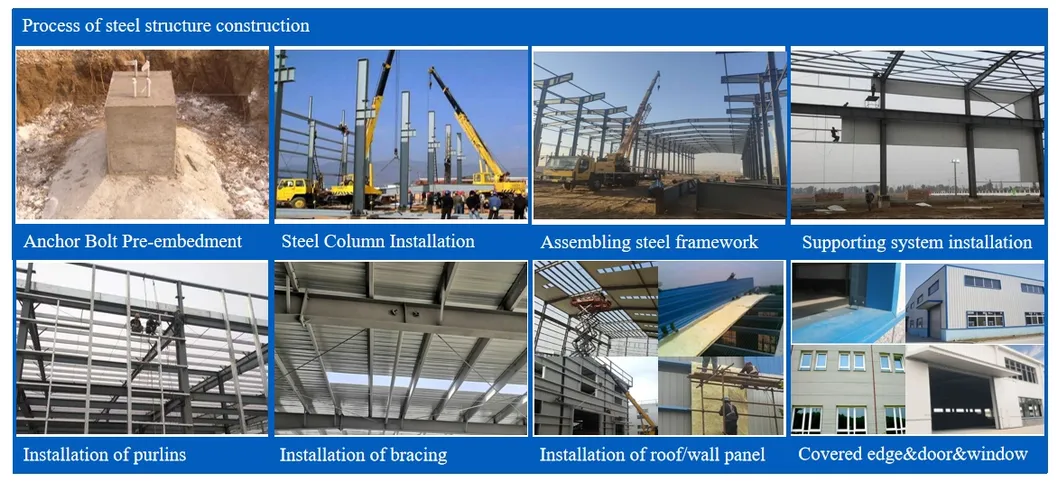

We also provide professional installation teams and can dispatch engineering experts to offer on-site installation guidance.
Customer Feedback
Request a Quotation
If you already have design drawings, feel free to share them with us. A precise quotation will be calculated based on your schematics. Alternatively, our design team can draft custom blueprints for your steel structure workshop or warehouse. Please provide the following details:
- Location: Proposed build site (Country and City)
- Size: Length × Width × Eave Height (in mm)
- Wind Load: Max wind speed (kn/m², km/h, or m/s)
- Snow Load: Max snow depth (kn/m² or mm) & local temperature range
- Earthquake Resistance: Seismic grade level
- Brick Wall: Requirement height (e.g., 1.2m, 1.5m, etc.)
- Thermal Insulation: Options suggest EPS, fiberglass wool, rockwool, PU sandwich panels, or simple metal steel sheets
- Doors: Type, quantity, and dimensions (Width × Height in mm)
- Windows: Type, quantity, and dimensions (Width × Height in mm)
- Crane: Requirement capacity (max lifting weight in tons & max lifting height in meters)
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer of steel structure buildings.
Do you accept container loading inspections?
You are welcome to send an inspector, not only for the container loading but at any point during the production process.
Do you offer designing services for us?

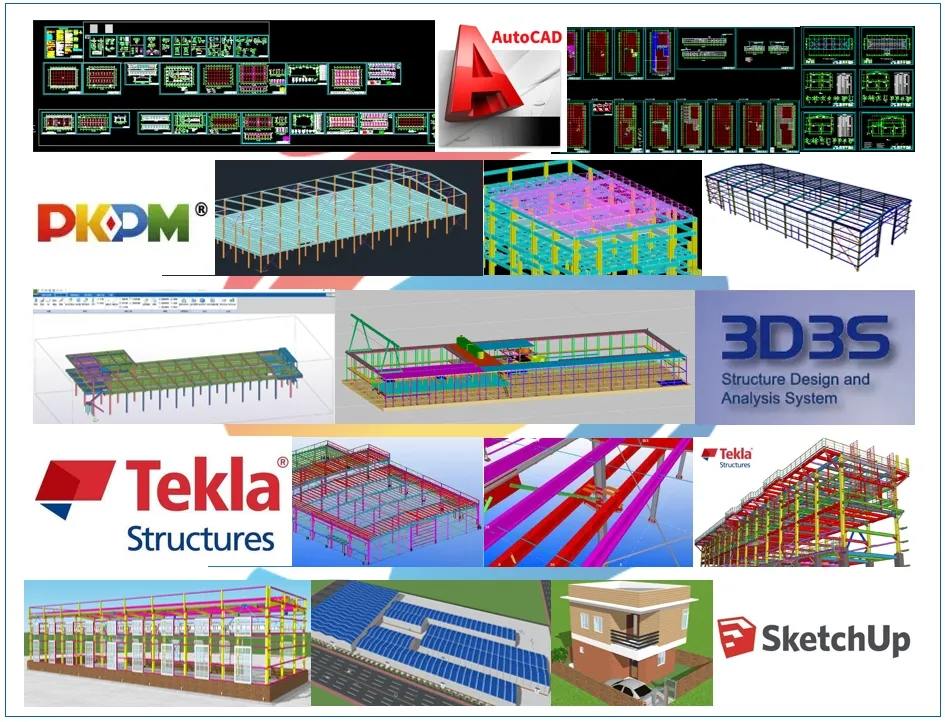

Yes, we can design full solution drawings to your requirements using industry-standard design software such as Auto CAD, PKPM, MTS, 3D3S, etc.
What is the estimated delivery time?
Delivery time depends on order quantities. In general, delivery to the nearest seaport in China is around 30 days after receiving the deposit payment.
How long can the space frame structure be used?
The useful life of the main structure meets the standard GB request of 50 to 100 years.
Can you send engineers or installation teams to set up the project?
We provide detailed installation drawings and instruction videos free of charge. Upon request, we can also dispatch installation directors or a dedicated engineering team to supervise the site erection.
