Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use

Product Description

Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use
Product Description
Steel Structure Building Description
Category Parameters Applications
Material Q235 / Q355 structural steel, H-beam, I-beam, C/Z purlin, steel plate, galvanized steel or EN standard (as your customized) Workshops, warehouses, prefabricated houses, commercial steel buildings
Surface Treatment Hot-dip galvanizing, painted coating, powder coating, anti-rust treatment Long-term use in coastal, industrial, and outdoor environments
Structure Type Portal frame, truss, space frame, welded steel frame Large-span halls, factories, sports centers, exhibition centers
Classification Light Steel Building / Heavy Steel Building / Large-span Steel Structure Low-rise prefab houses, heavy-duty factories, stadiums, hangars
Wall & Roof Panel EPS/PU/Rock wool sandwich panel, corrugated steel sheet, insulated cladding Energy-efficient workshops, cold storage, prefab houses
Connection Method High-strength bolts, welding joints, modular prefabricated assembly Fast installation, customizable modular buildings
Service Life 20–50 years (depending on material & treatment) Long-term industrial & commercial projects
Customization Size, span, height, cladding, windows, doors, mezzanine floors Tailor-made warehouses, modular houses, office buildings
Specification
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use
Material List (For example)
Project Steel Structure Building
Size According to Customer Need
Main Steel Structure Frame
Column Q235B, Q355B Welded H Section Steel
Beam Q235B, Q355B Welded H Section Steel
Secondary Steel Structure Frame
Purlin Q235B C and Z Type Steel
Knee Brace Q235B C and Z Type Steel
Tie Tube Q235B Circular Steel Pipe
Brace Q235B Round Bar
Vertical and Horizontal Support Q235B Angle Steel, Round Bar or Steel Pipe
Roof and Wall System
Roof Cladding Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool)
Wall Cladding Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool)
Door Sandwich Panel Sliding Door/Rolling Metal Door
Window Aluminium Alloy Window/PVC Panel Window

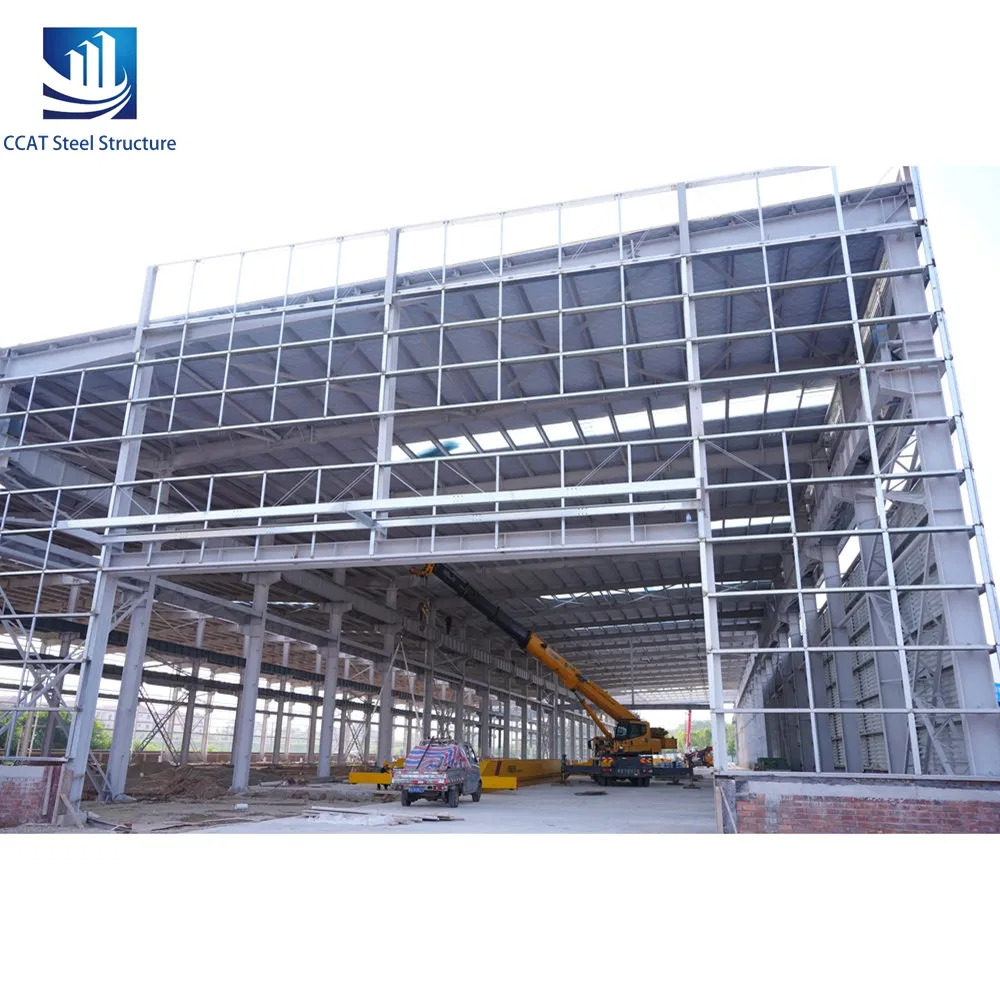

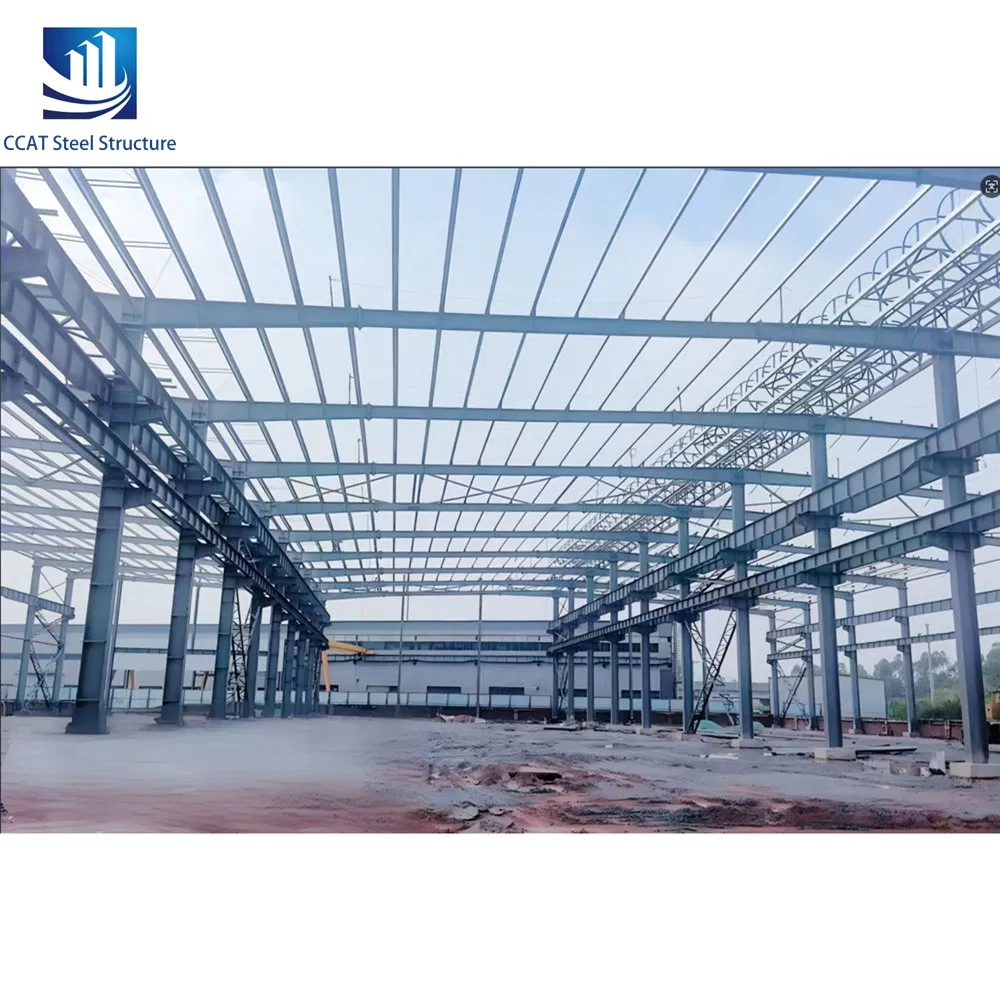

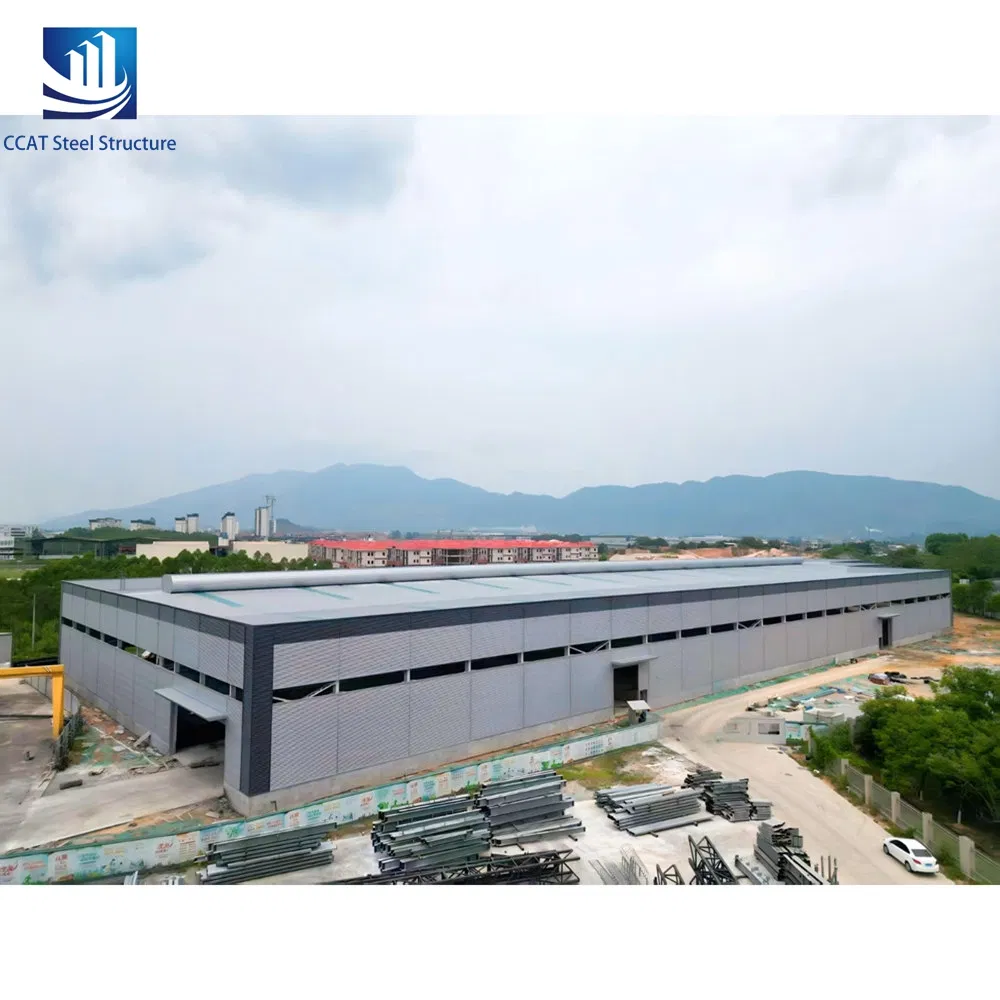

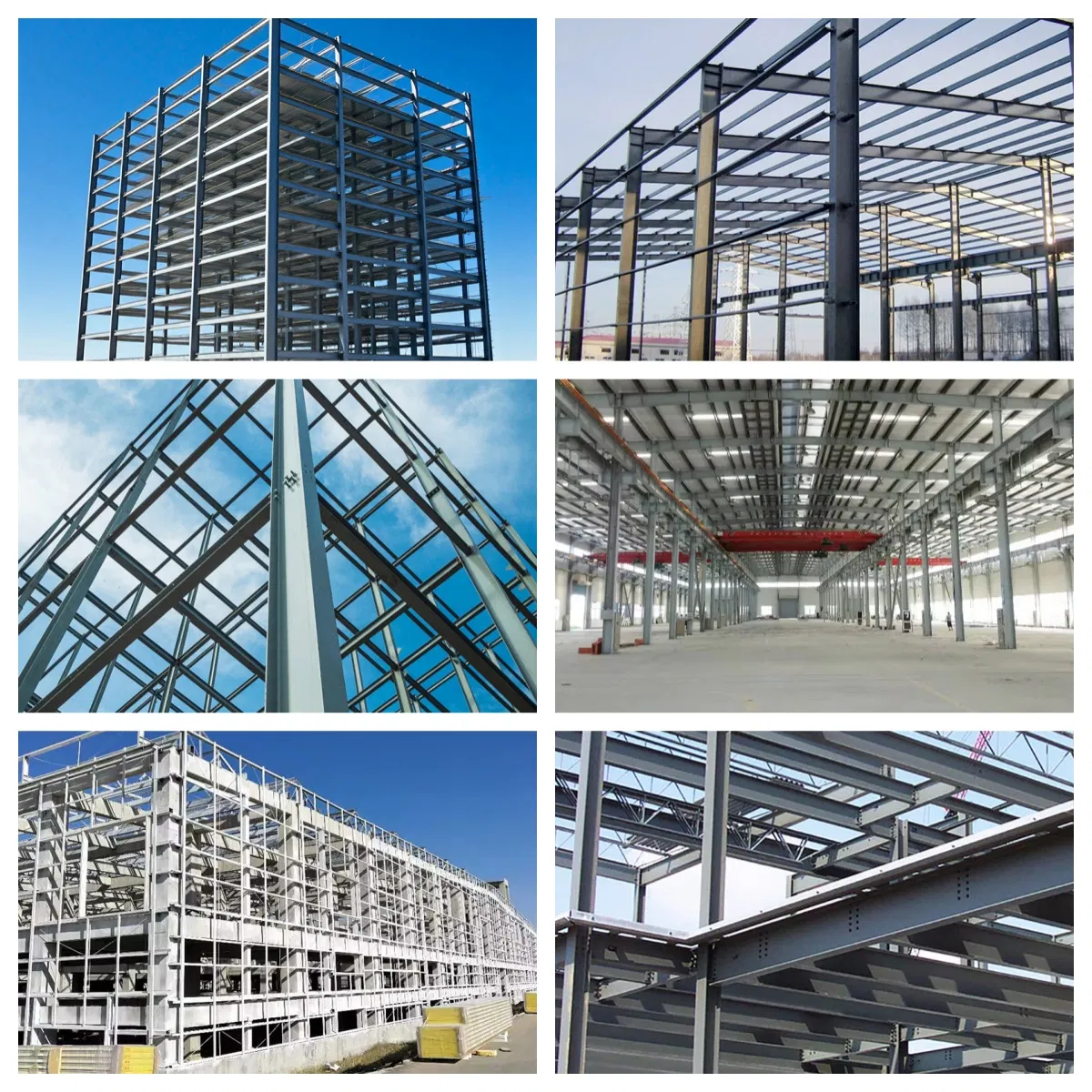

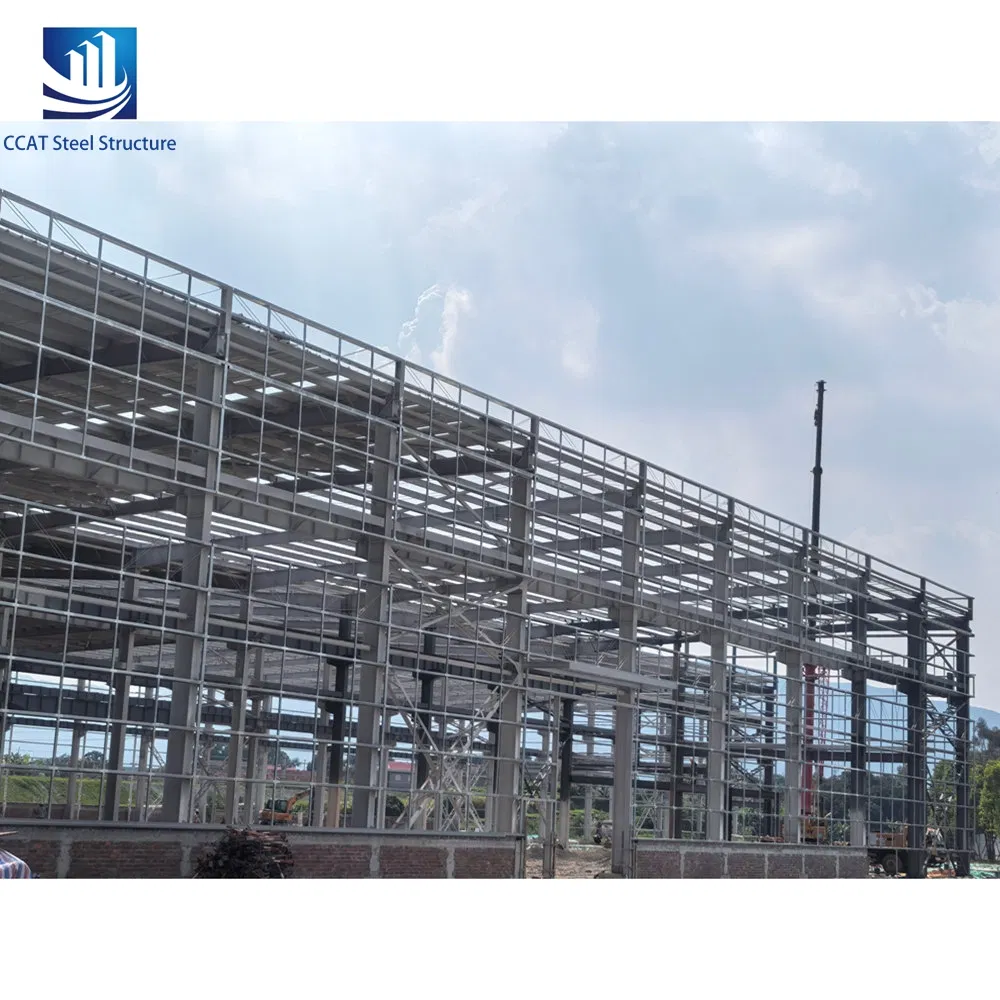

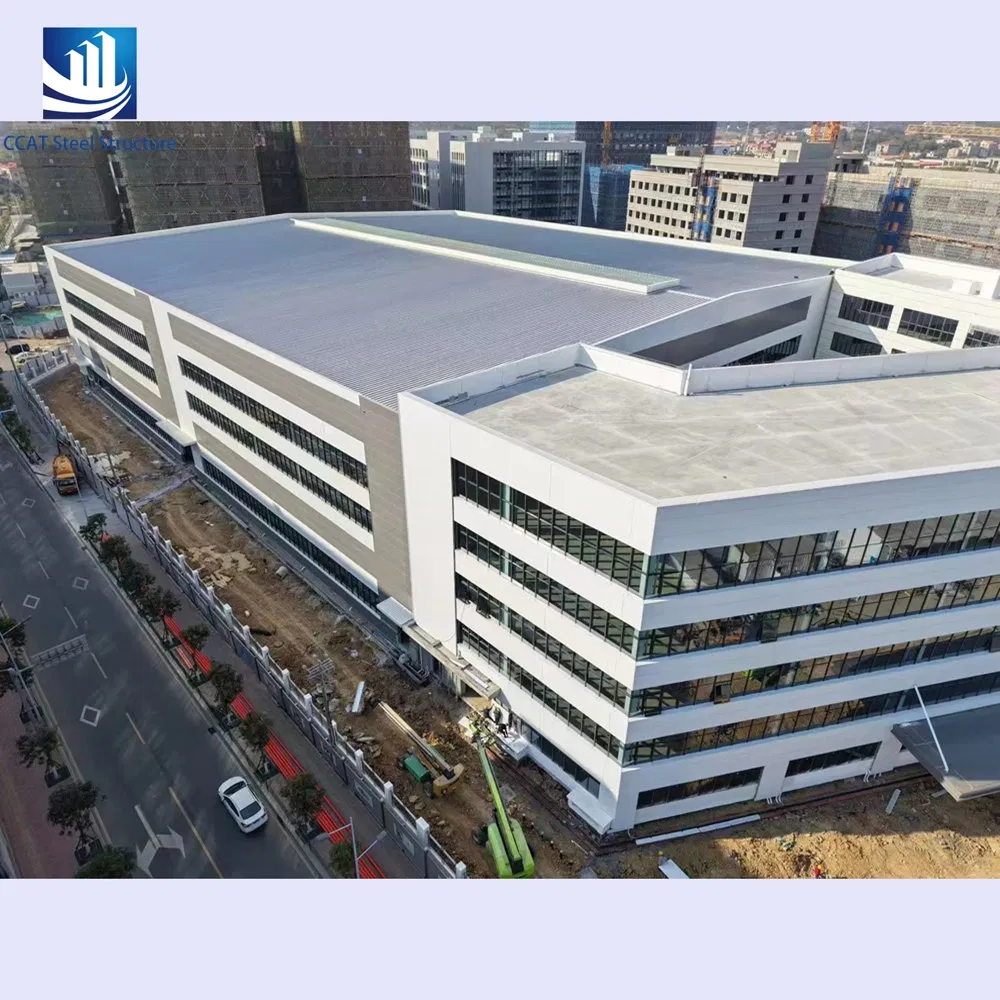

Product Display
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use

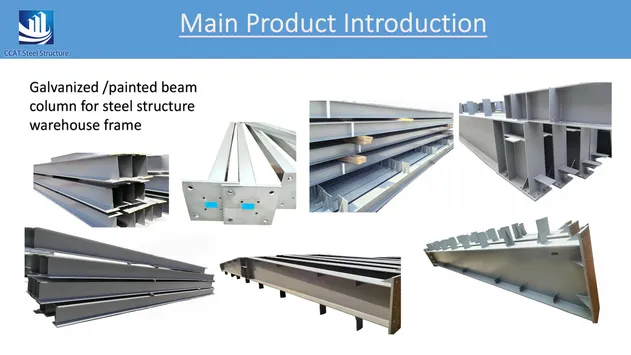

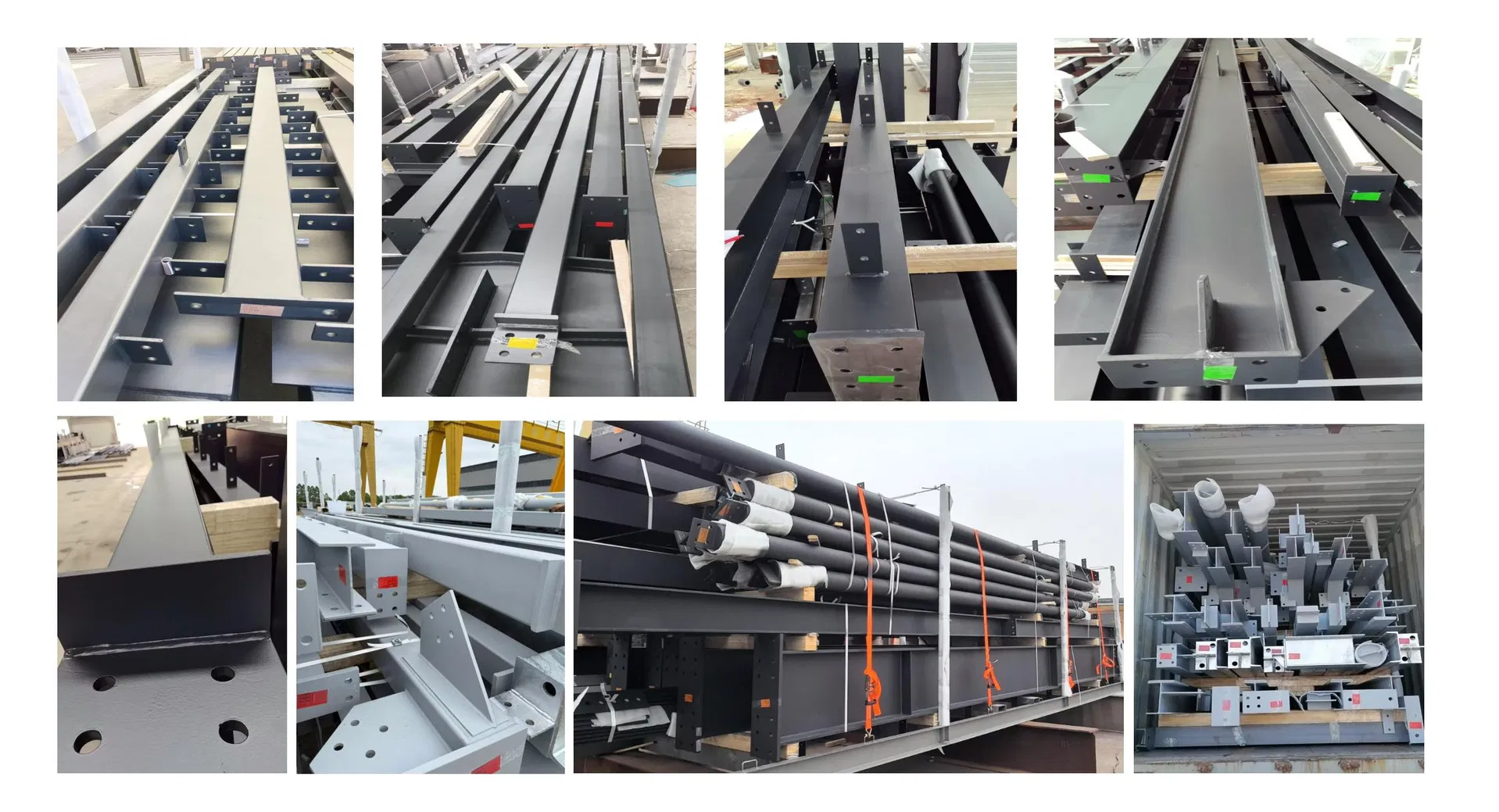

Main Product Introduction
Galvanized / painted beam-column for steel structure warehouse frame
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use

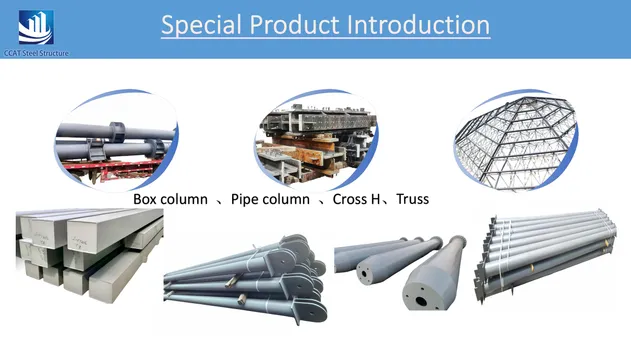

Special Product Introduction
Box column, Pipe column, Cross H, Truss
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use

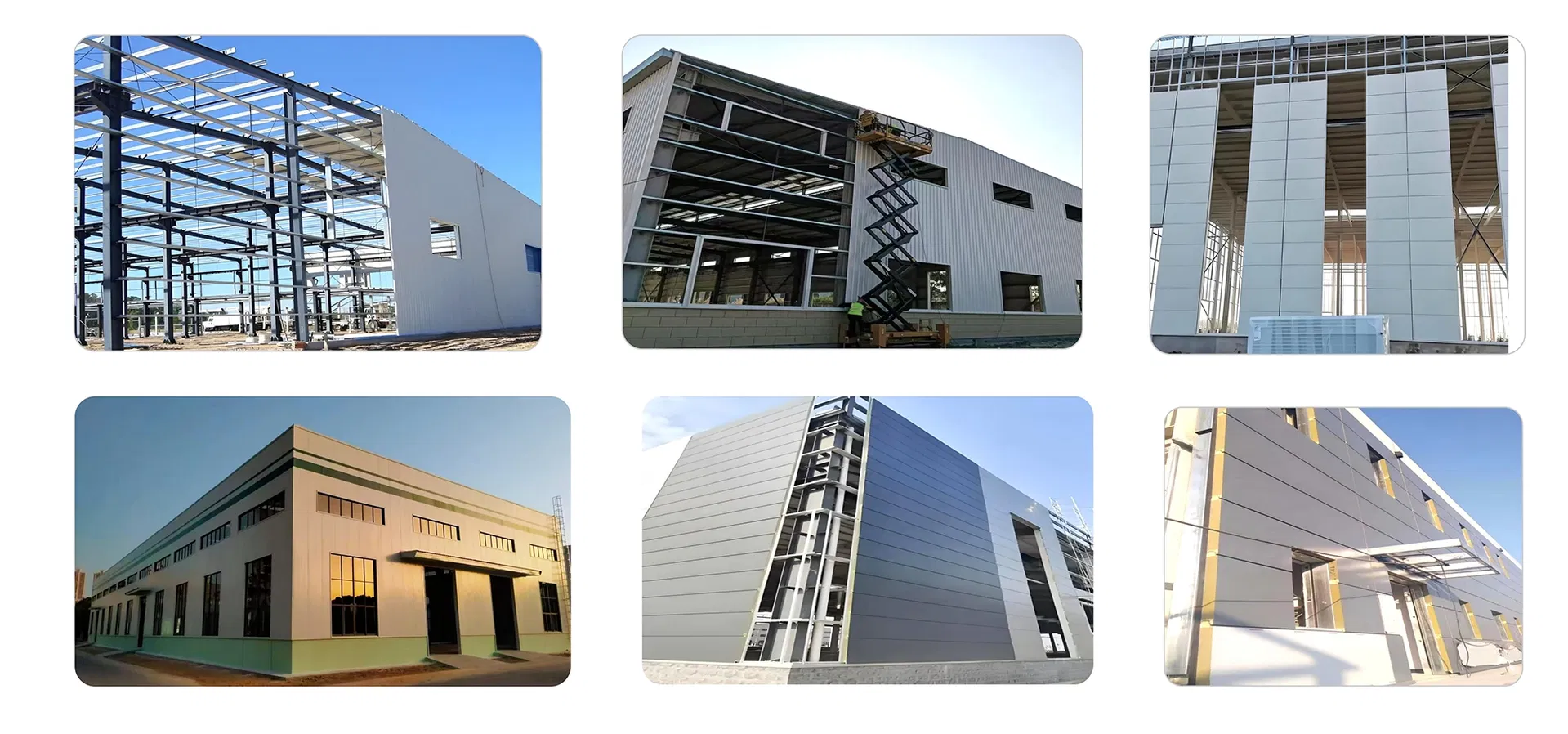

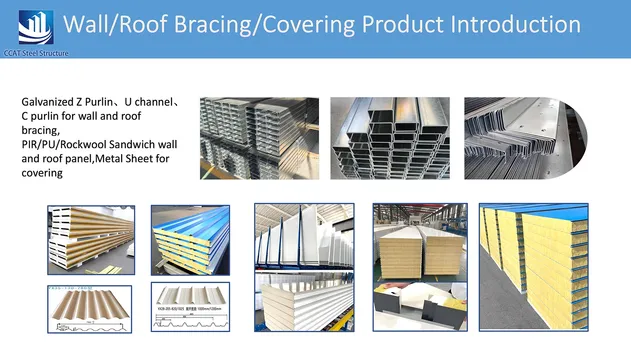

Wall/Roof Bracing/Covering Product Introduction
Galvanized Z Purlin, U channel, C purlin for wall and roof bracing, PIR/PU/Rockwool Sandwich wall and roof panel, Metal Sheet for covering
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use
Honorary Certificates & Certifications
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use

Certificates

  • High-tech Enterprise Certificate
  • ISO9001 Quality Management System Certificate
  • ISO24001 Environmental Management System Certificate
  • ISO45001 Occupational Health and Safety Management System Certificate
  • Steel Structure Business License Enterprise
  • Qualification Certificate - Grade 1 Quality Management System
Packaging & Shipping
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Packaging Details:

  • 1. Steel structure components will be in nude packaging with proper protection.
  • 2. Sandwich panels will be covered with plastic film.
  • 3. Bolts and other accessories will be loaded into wooden boxes.

All the structure components, panels, bolts and sorts of accessories will be well packed with standard package suitable for ocean transport and loaded into 40'HQ.

All the products are loaded at the loading site of our factory using cranes and forklifts by our skilled workers, who will prevent the goods from being damaged. We maintain good relationships with many vessel companies to make sure the transportation is smooth.

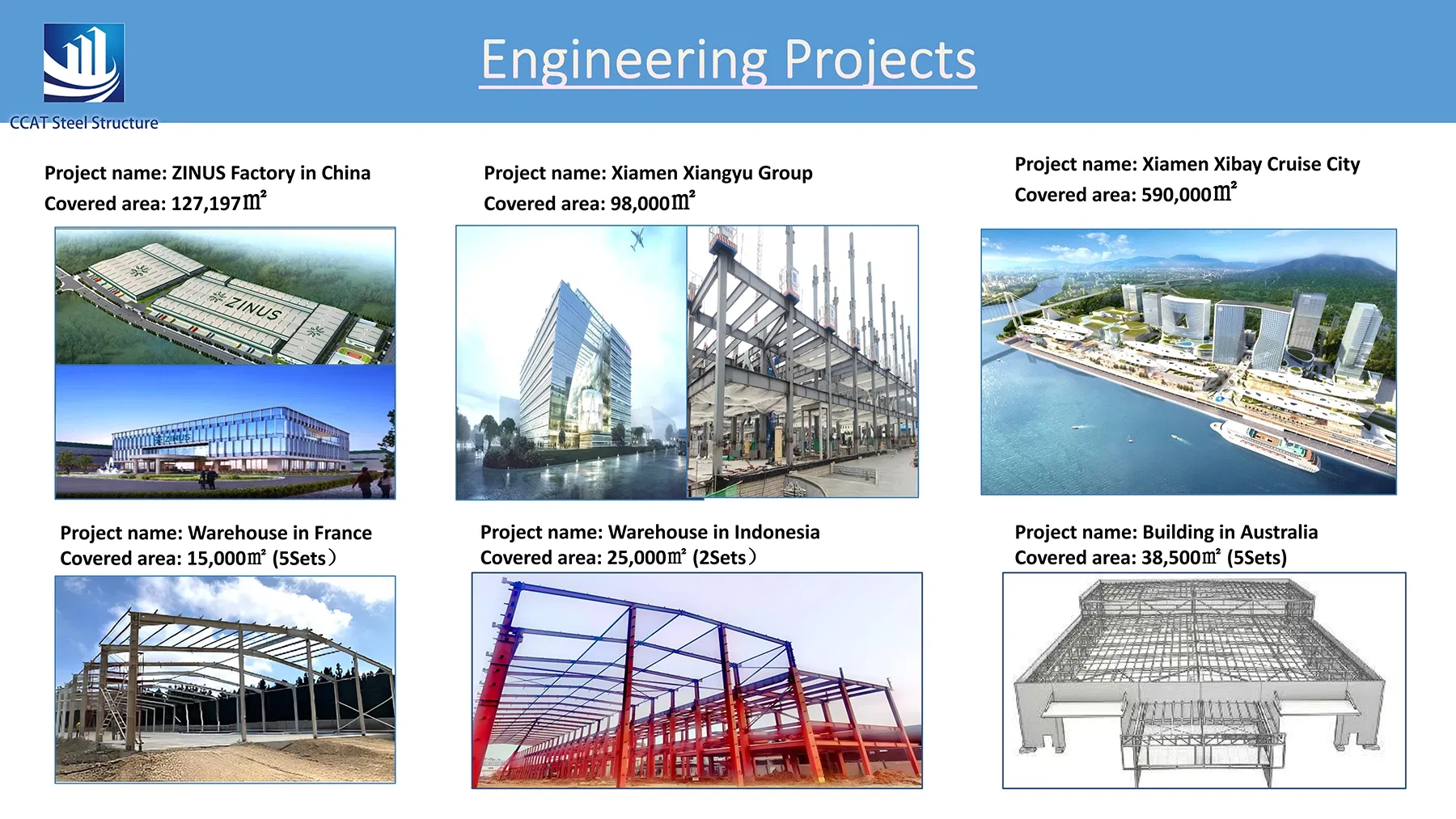

Engineering Projects
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use
  • Project name: Factory Project  |  Covered area: 127,197 square meters
  • Project name: Industrial Group Project  |  Covered area: 98,000 square meters
  • Project name: Cruise City Project  |  Covered area: 590,000 square meters
  • Project name: Warehouse in France  |  Covered area: 15,000 square meters (5 Sets)
  • Project name: Warehouse in Indonesia  |  Covered area: 25,000 square meters (2 Sets)
  • Project name: Building in Australia  |  Covered area: 38,500 square meters (5 Sets)

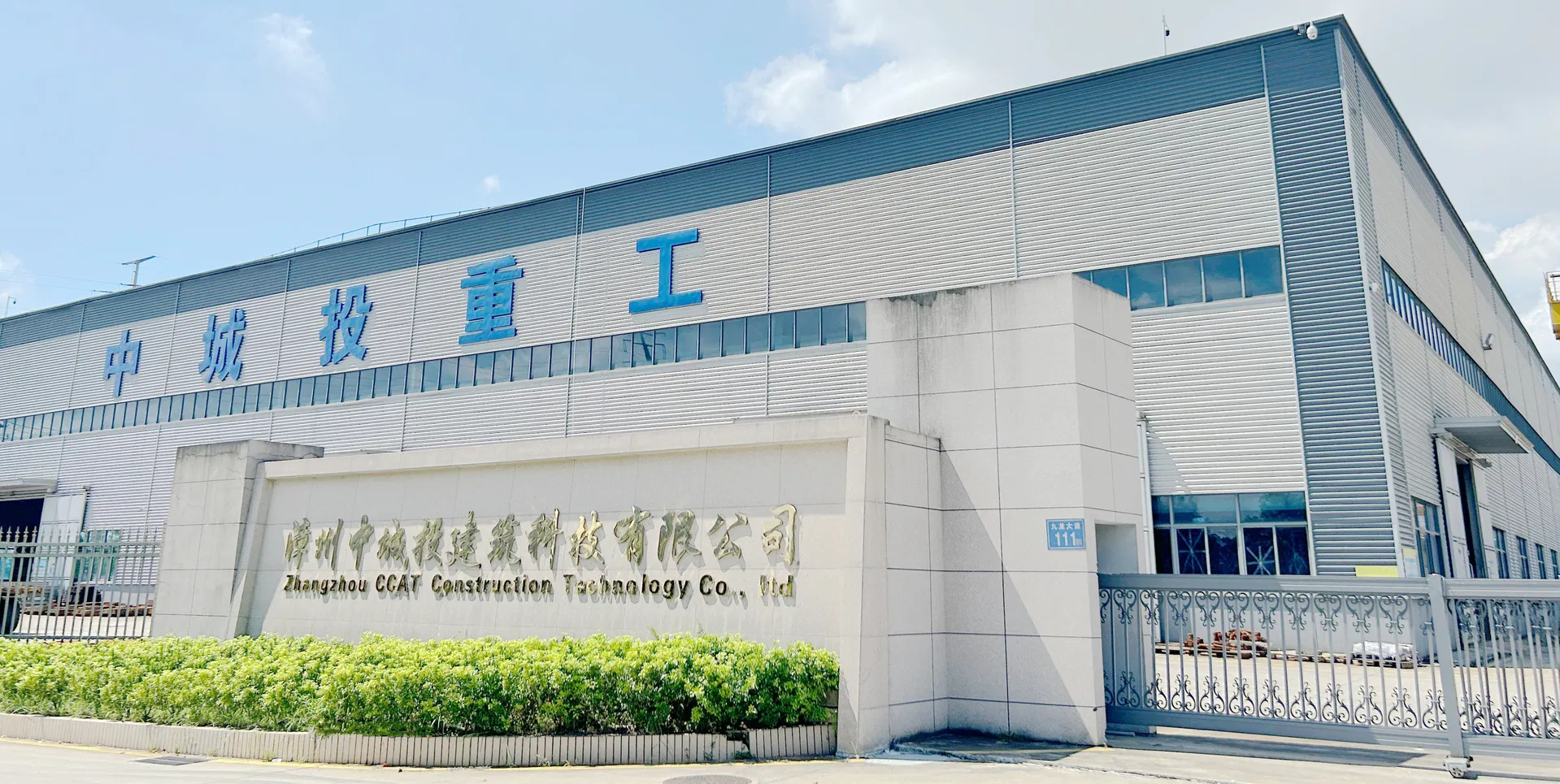

Company Profile
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use

Our construction technology facility was founded in June, 2018. The factory covers an area of over 76,000 m² with a production capacity of around 36,000 Tons/year. We are engaged in producing steel structure products. These are widely applied in projects such as factories, sheds, warehouses, steel structures, and high-rise buildings.

We are a leading manufacturer and supplier of high-quality steel structures. We specialize in the comprehensive design and fabrication of custom-engineered steel solutions for diverse industries worldwide.

Adherence to stringent quality standards (typically ISO 9001) is paramount. Our processes include rigorous material inspection, in-process QC, and final dimensional checks before dispatch.

Great work starts with collaboration.

We have focused on building relationships from the first contact through the completion of every prefabricated steel structure. Our priority has been, and always will be, our clients.

Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use

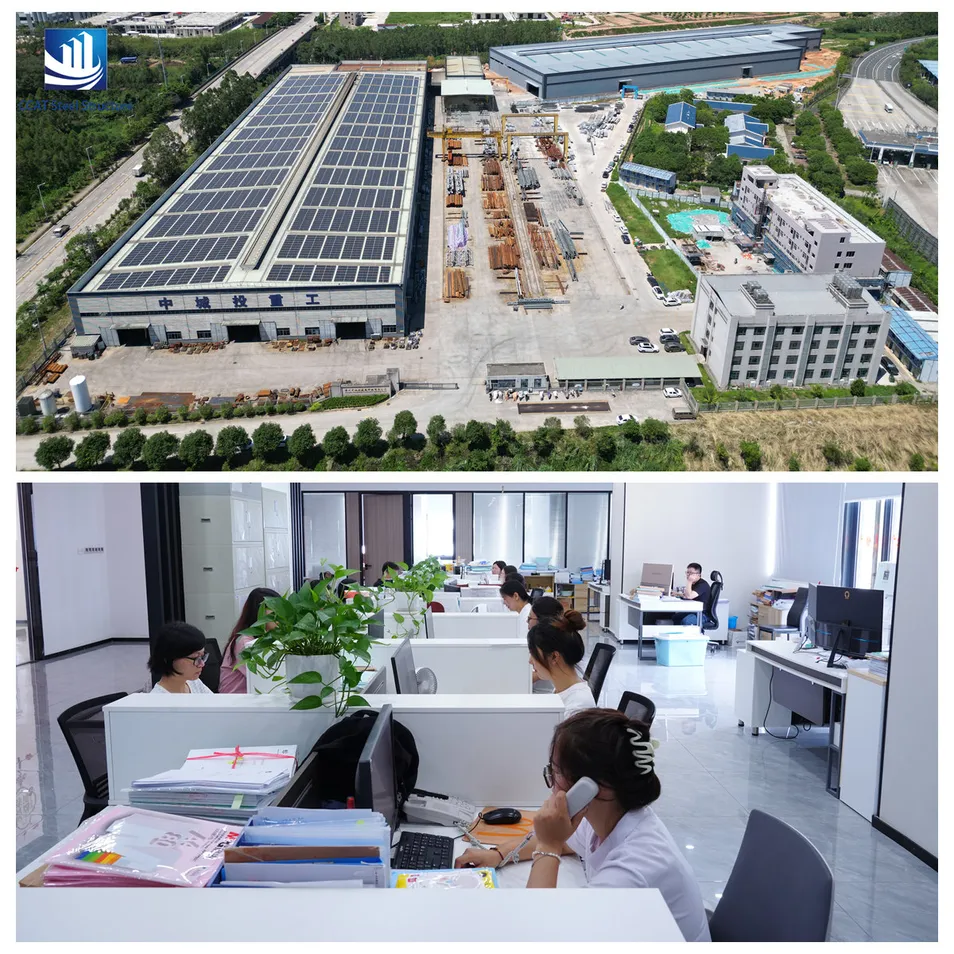

Our Office Environment
Pre-Engineered Metal Building Kits Steel Structure Building for Industrial Use
Customer Visit
Frequently Asked Questions
Q1. What products do you offer?
We mainly engage in the design, production, and construction of steel structures, prefabricated steel structures, light steel structures, steel truss floors, steel trusses, rock wool boards, sandwich panels, mobile houses, prefabricated houses, container houses, and other related products.
Q2. What is your payment term?
Our standard payment term is a 30% deposit, with the remaining balance to be paid before delivery.
Q3. What is your MOQ?
For standard products, we do not require a minimum order quantity (MOQ).
Q4. Do you accept container loading inspection?
Yes, you are welcome to send an inspector not only for container loading but also at any time during the production phase.
Q5. Do you provide design services for us?
Yes, we can design a complete plan according to your requirements, including design plans for office buildings, large factories, supermarkets, car dealerships, shopping malls, hotels, workshops, warehouses, and other complex industrial buildings.
Q6. When is the delivery time?
The delivery time depends on the order quantity. Generally, the delivery time to the nearest Chinese port is 30 days after the receipt of the deposit.
