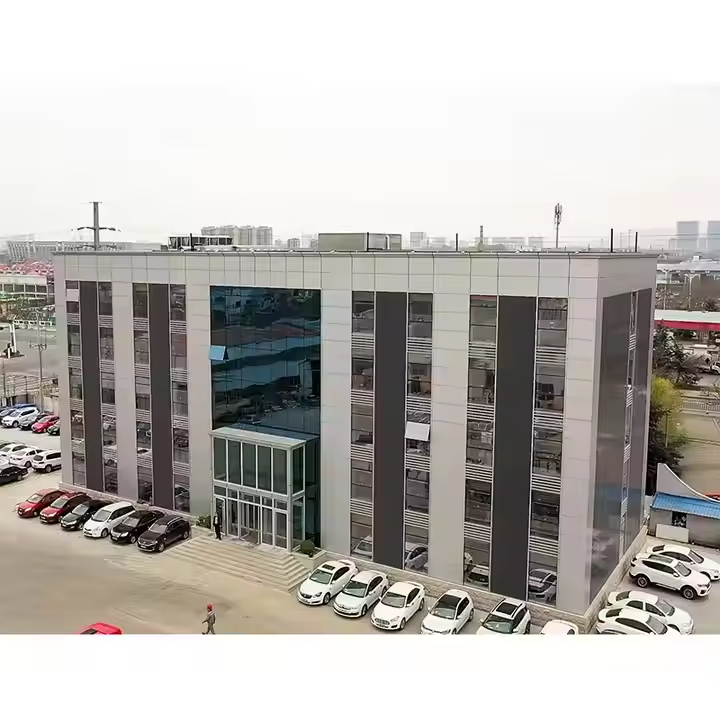

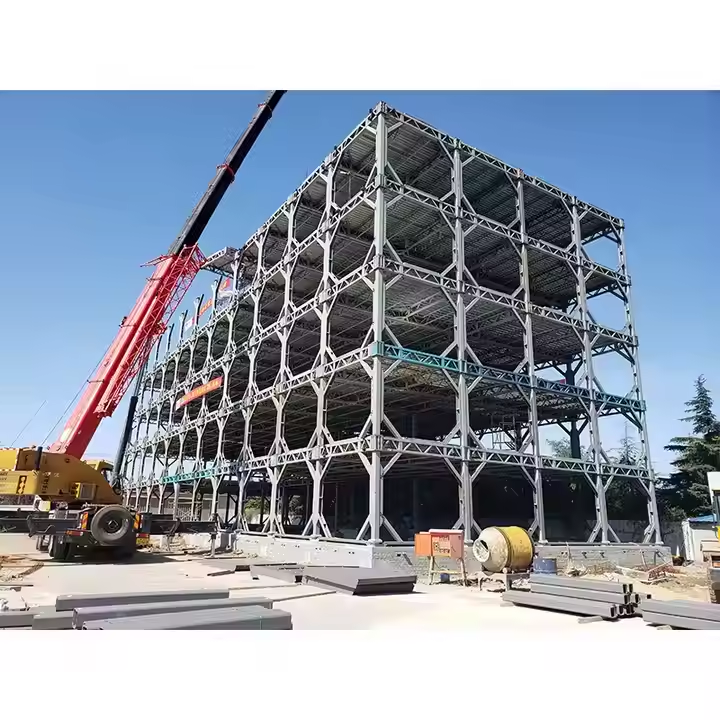

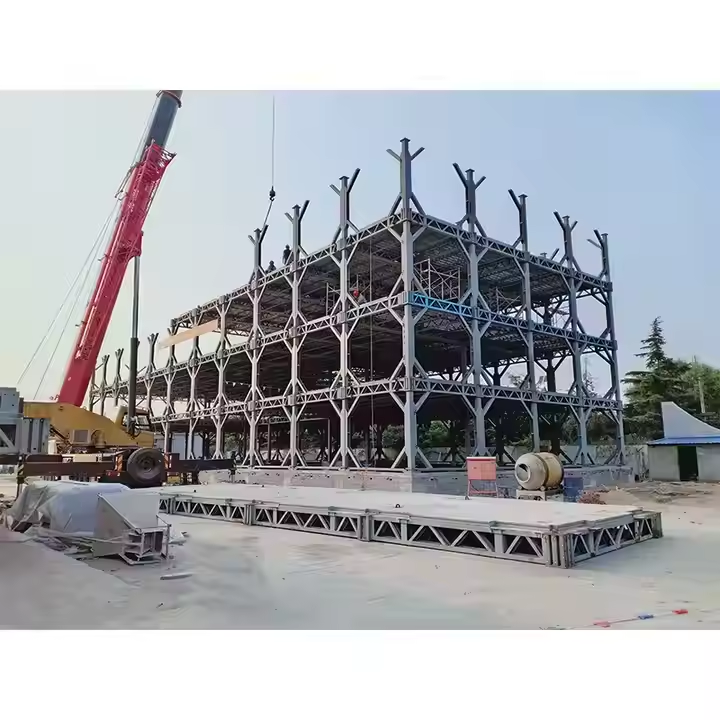

Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings
Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings
Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings
Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings
Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings
1 / 5
Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings
Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings
Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings
Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings
Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings

Self-Developed Assembly Light Steel Structure Modular Building Office Apartment Hospital Hotel Commercial Construction Buildings

Send Inquiry

Product Description

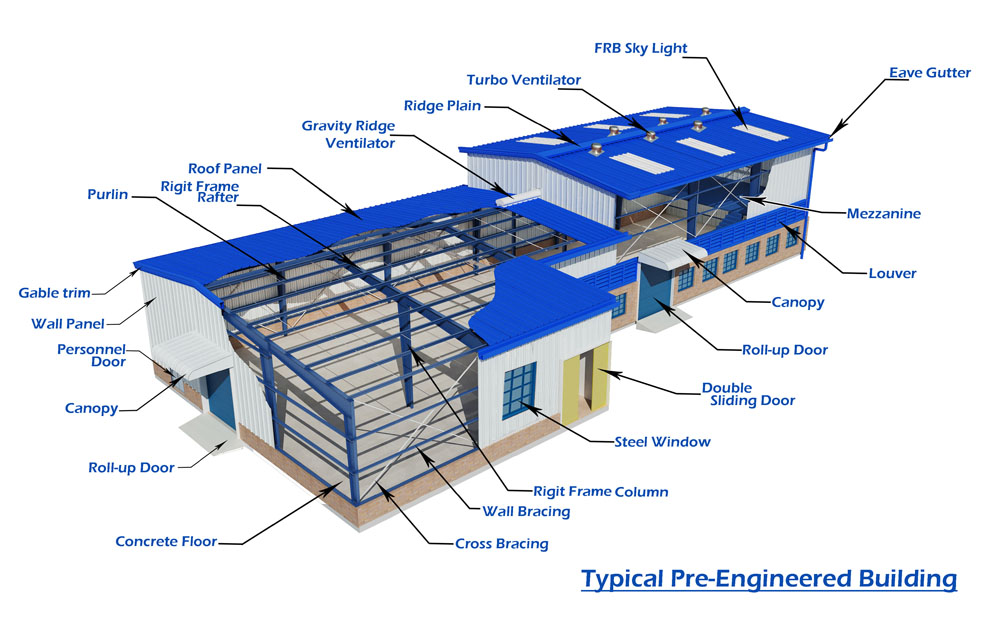

Steel Structure Design Industrial Steel Building Prefabricated Steel Frame
1) Size: MOQ is 100 sqm, width x length x eave height, roof slope
2) Span: 9-180m, type: single slope, double slope, multi slope; single span, double span, multi span; single floor, double floor, multi floors
3) Height: 3-10m
4) Slope: 1/20, 1/10, 1/5, 1/3
5) Column distance: 6-9m
6) Base: Cement and steel foundation bolts
7) Column and beam: Material Q345(S355JR) or Q235(S235JR) steel, all bolts connection. Straight cross-section or Variable
8) Bracing: X or V or other type bracing made from angle, round pipe, etc
9) C or Z purlin: Size from C120~C320, Z100~Z200
10) Roof and wall panel: Single colorful corrugated steel sheet 0.2~1.2mm thick, such as YX25-207-828 or sandwich panel: sandwich panel with EPS, ROCK WOOL, PU etc. insulation thickness around 50mm~150mm, YX40-320-960
11) Accessories: Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc

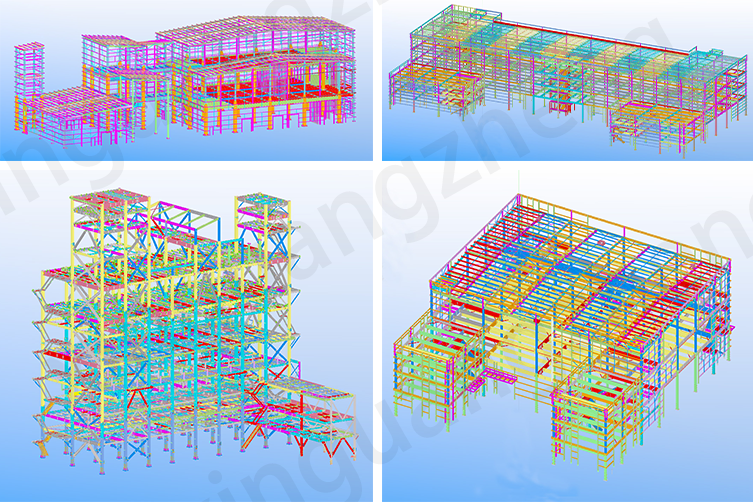

Technical Layout Profile Structural Frame Detail
Construction Development 1 Construction Development 2 Construction Development 3
Steel Framework Assembly Heavy Steel Structure Column
Our Manufacturing & Service Profile
  • Founded in 1997.
  • After more than 25 years of steady development, our operation has become a high-tech, diversified, export-oriented international steel structure building enterprise, integrating research & development, design, production, installation, construction and service.
  • To serve the global market, we have obtained CE certification (EN1090 certificate), International Ordinary Steel Structure High-grade Certificate and China Overseas Contract Project Operation Qualification Certificate.
  • We face global markets and actively seek international development paths.
  • Our international partners are from Germany, France, Brazil, England, America, Ethiopia, Algeria, etc., covering more than 130 countries worldwide.
Manufacturing Warehouse Automatic Production Line Factory Internal View Laser Cutting Machine Processing Base Assembled Components Ready for Shipping
Customers Visit
Overseas Client Inspection 1 Overseas Client Inspection 2 Business Meeting
Client Visit 1 Client Visit 2 Client Visit 3
Factors Required for Quote
  • 1 Live load on roof (KN/M2)
  • 2 Wind speed (KM/H)
  • 3 Snow load (KG/M2) if applicable
  • 4 Earthquake load if applicable
  • 5 Crane details if applicable (crane span, crane lift height, max lift capacity)
  • 6 Doors and windows: dimension, quantity, position
  • 7 The specific materials for the roof and the wall
  • 8 Other custom project requirements
  • 9 It is better if you have your own engineering drawings (please send them to us for assessment)
Quotation Draft Reference
Frequently Asked Questions
Are you a trading company or a manufacturer?
We have our own specialized steel structure, steel sheet, and sandwich panel manufacturing factories. You are welcome to visit our production plants to inspect our products and discuss your projects.
Can you provide on-site installation service?
We provide comprehensive installation guidance based on client requests. Detailed shop drawings, installation drawings, and instructions will be sent to help with structural erection. If required, our engineer can go to the job site to guide the installation.
What is the expected delivery time?
Delivery time depends on order quantities and project complexity. Generally, the delivery timeframe is within 25 to 60 days.
How can I obtain a quotation for my project?
You can reach out directly by sending a message or sending us an inquiry. We will review your details and respond to you as soon as possible with a customized quote.
Can you design the steel building for us?
Yes, we design custom architectural and engineering drawings based on your requirements. By using industry standard software such as AutoCAD, Tekla Structures, SAP2000, and STAAD Pro, we design functional warehouses, workshops, offices, schools, apartments, and exhibition halls.

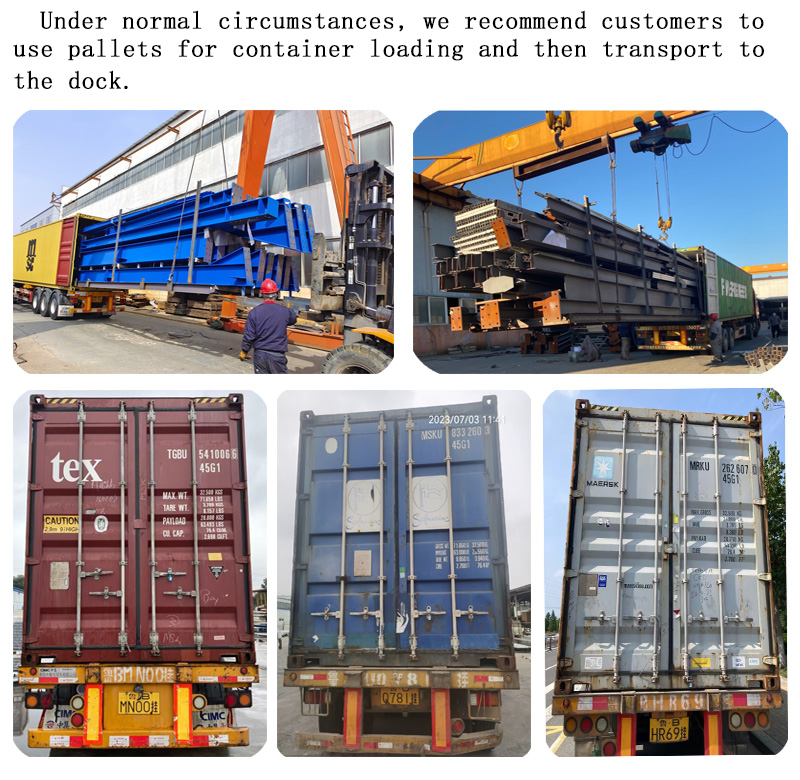

What is the packaging and shipping process?
All structural steel materials are securely packed onto steel pallets. After loading into containers, they are shipped directly to the port and transported by sea.
