Product Description

Modular Hospital Building Construction Prefab Hospital Architectural Plan
Modular Hospital Building Construction Prefab Hospital Architectural Plan

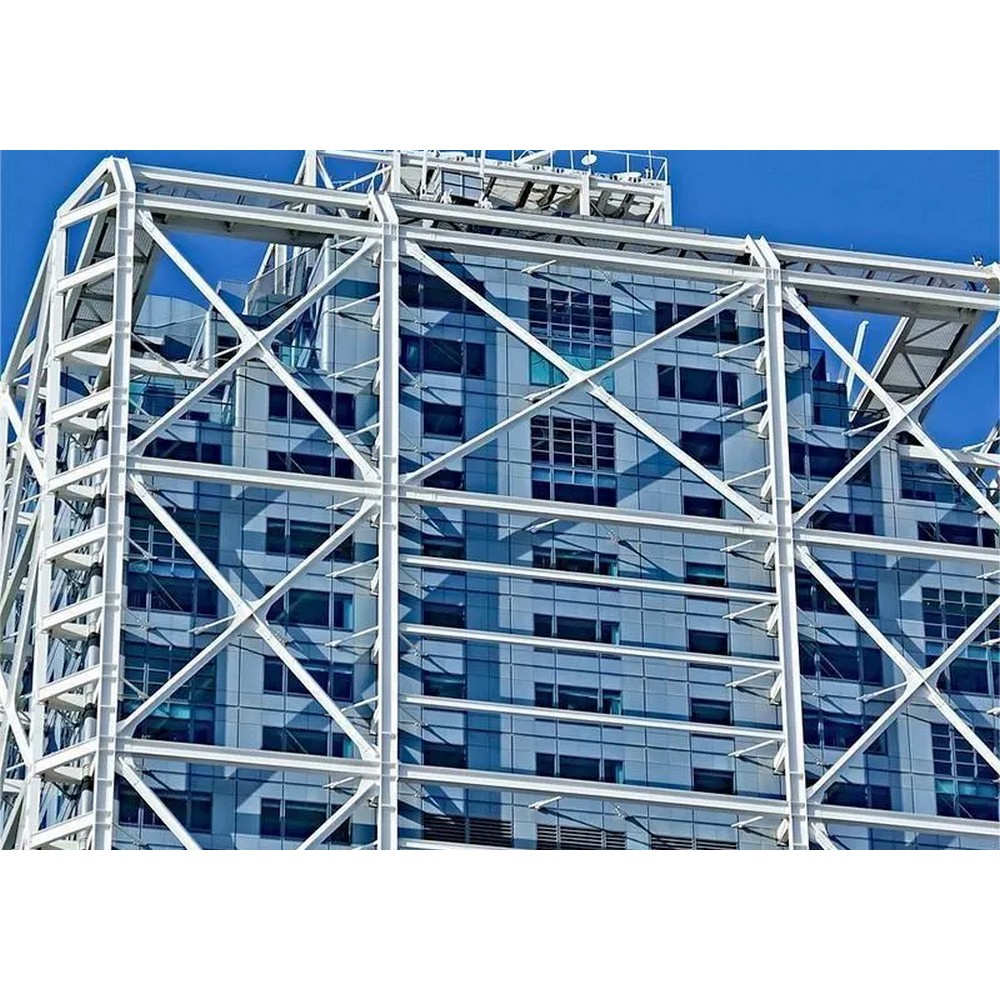

Steel structure is a structure composed of steel materials and is one of the main types of building structures. The structure is mainly composed of steel beams, steel columns, steel trusses and other components made of section steel and steel plates. The characteristics of steel are high strength, light weight, good overall rigidity, and strong resistance to deformation.
Item Steel structure commercial building
Specification Size-XXm*XXm*Xxm
Crane capacity 5/10/20t as requirement
Steel pillar/column/beam/Anti-wind column Hot-rolled Q235B(Q345B) welded Hsection with 6-25mm thickness
Surface finishing Three layer environmental friendly anti-rust painting
Bracing Φ12/20mm steel bar or Angle steel in Q235B with three layer environmental friendly anti-rust painted surface
Tie Bar Φ 89/102/114/121mm in Q235B welded circular steel tube with three layer environmental friendly painting
RoofWall Purline Cold galvanized C section steel
Casing Φ 32mm cold galvanized steel tube
Connection Bolt connection
Roof 0.3-0.7mm thickness single layer colorful sheet or with 50mm glass wool cotton insulation with aluminum foil or sandwich panel(50mm/75mm/100mm/150mm)
Wall 0.3-0.7mm thickness single layer colorful sheet or with 50mm glass wool cotton insulation with aluminum foil or sandwich panel(50mm/75mm/100mm/150mm)
Window Plastic steel or aluminum window with single layer glass
Door Sandwich panel sliding door or electronic rolling up door
Edge cover 0.3-0.7mm thickness single layer colorful sheet
Modular Hospital Building Construction Prefab Hospital Architectural Plan
Modular Hospital Building Construction Prefab Hospital Architectural Plan
Modular Hospital Building Construction Prefab Hospital Architectural Plan

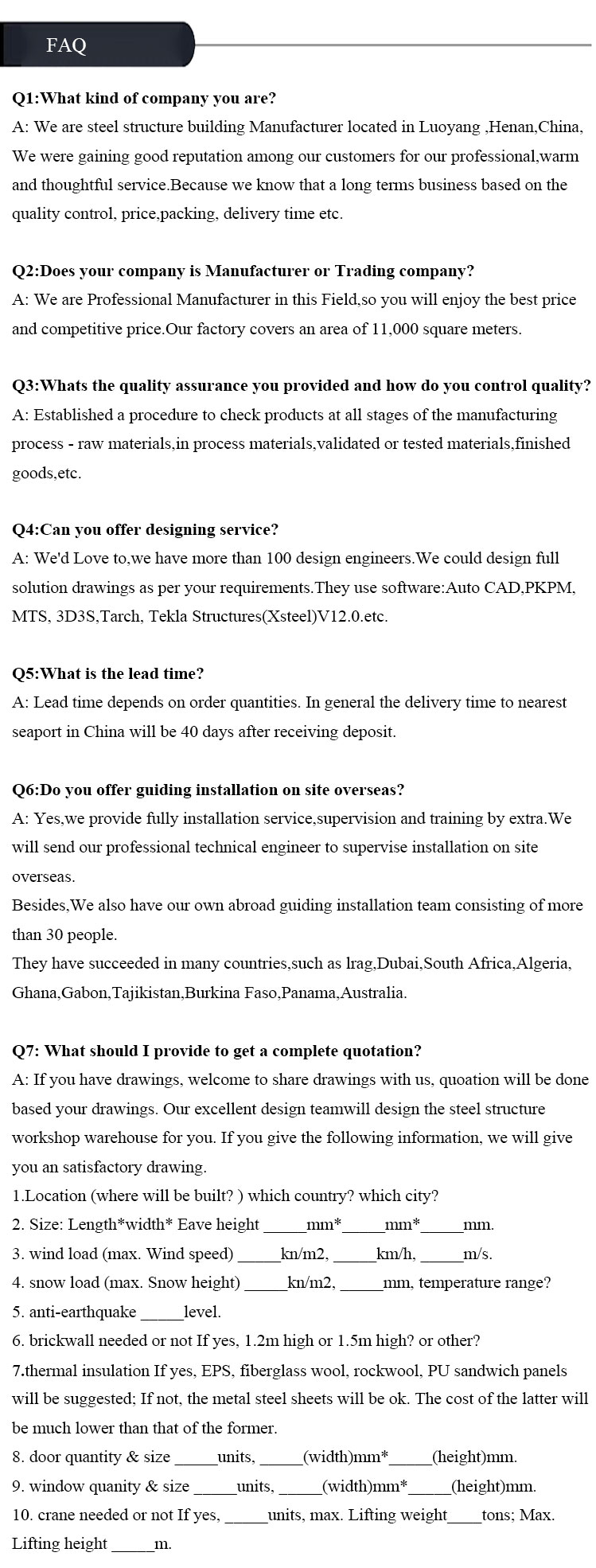

Frequently Asked Questions
What are the main characteristics of steel structure buildings?
Steel structures are highly valued for their high strength, light weight, excellent overall rigidity, and robust resistance to deformation, making them ideal for large-span and heavy-load constructions.
What specifications are available for these commercial buildings?
The size and specifications can be fully customized as needed (Size-XXm*XXm*Xxm) to suit specific layout requirements and functional demands.
What kind of anti-rust protection is applied to the steel components?
All primary structural components, including pillars, columns, and bracing, receive a three-layer environmental friendly anti-rust painting to ensure long-term durability.
Can these structures support industrial overhead cranes?
Yes, the structures can be designed to accommodate crane capacities of 5t, 10t, 20t, or custom capacities depending on your project requirements.
What options are available for wall and roof insulation?
Options include 0.3-0.7mm single layer colorful sheets, sheets with 50mm glass wool insulation (with aluminum foil), or sandwich panels ranging from 50mm to 150mm in thickness.
How are the structural steel components connected during installation?
The components are designed for high-strength bolt connections, which ensures a fast, secure, and precise assembly process on site.
