| project | Material Specifications |

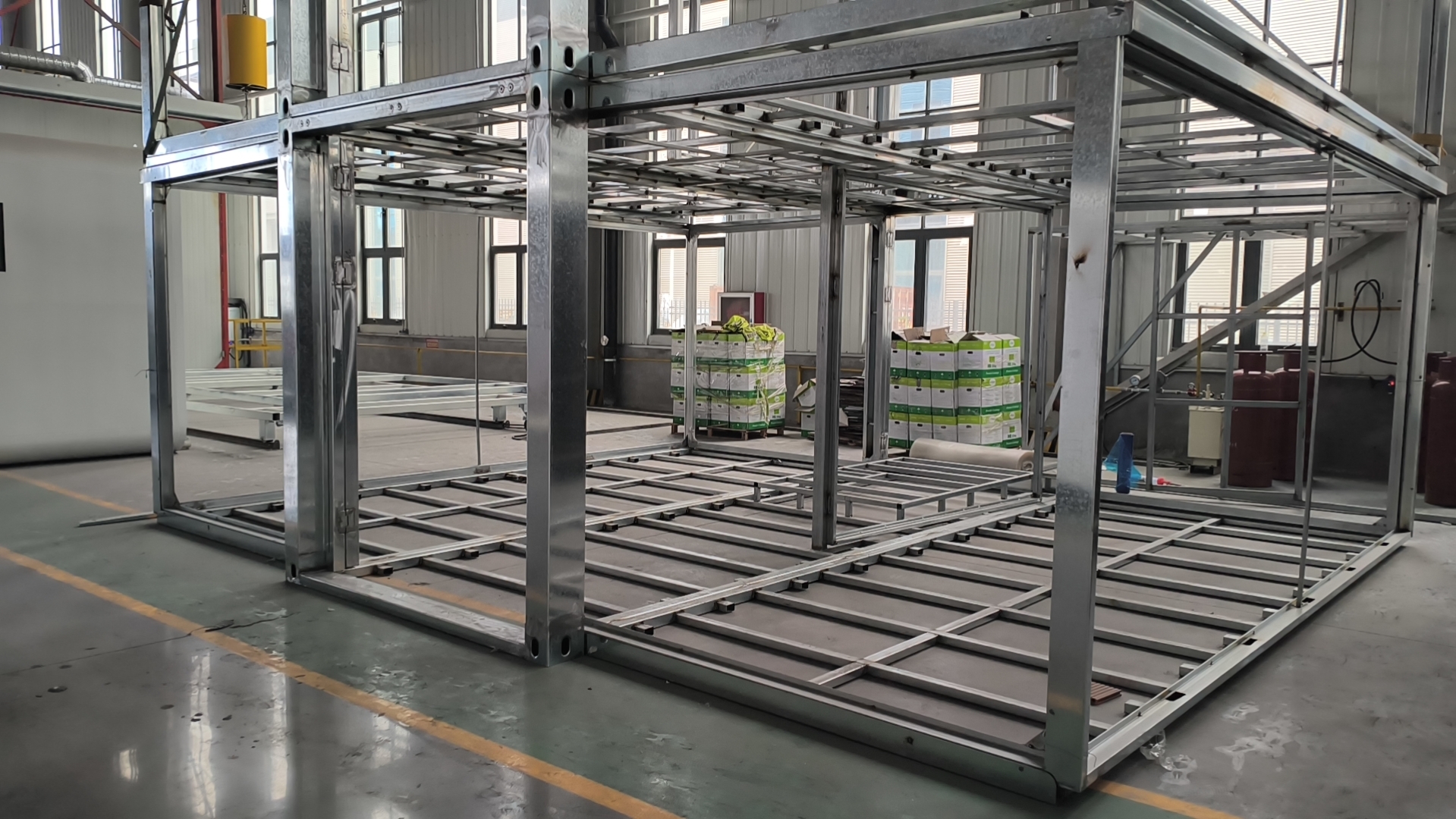

| Base frame |
(1) 2 galvanized crossbeams 5630 * 160 * 2.2mm, 2 galvanized crossbeams 2685 * 160 * 2.2mm, galvanized 80g/㎡; 4 bottom corner pieces(patented galvanized corner pieces) (2) Bottom beam: patented trapezoidal steel 120 * 60 * 40 * 1.2mm, Q550 material, 100g/㎡ aluminum zinc plating (9 layers) (3) 18mm thick cement board (4) 1.6mm thick floor leather (equivalent to 1.6mm thick plastic floor grade B) |
| top frame |
(1) 2 galvanized crossbeams 5630 * 180 * 2.2mm, 2 galvanized crossbeams 2685 * 180 * 2.2mm, galvanized 80g/㎡; 4 top corner pieces (patented galvanized corner pieces) (2) Top secondary beam C80 * 40 * 1.2mm (3) 50 glass wool insulation+tin foil paper (4) 2 pieces of 20 * 20 * 1.0 galvanized square tubes, 2 pieces of 30 * 30 * 1.0 galvanized square tubes (5) 0.45mm color steel skin panel (6) 831 * 0.35mm color steel integrated ceiling (7) Ceiling components |
| column | 2526 * 210 * 150 * 2.2mm galvanized column, 4 pieces, galvanized 80g/㎡ |
| auxiliary materials |
(1) 50mm diameter PVC downpipe (thickened type) (2) 50 floodwater tank (3) Column package (05 thick) (4) Self tapping wire, rivets, hexagon socket bolts, adhesives, etc |
| National standard Delixi Electric Distribution | Industrial socket box+industrial socket 32A, distribution box (1 leakage protection, 1 circuit breaker) 3 ordinary sockets, 1 air conditioning socket, 2 sets of LED three proof lights, two core wires |
| Steel Security Doors | Ordinary steel anti-theft door with 50 panels, 0.4mm thickness, size 970 * 1970, European standard fireproof lock |
| window | Box room special plastic steel sliding window 930 * 1130, double glass, including screen window, anti-theft window, plug-in window (Dehe) |

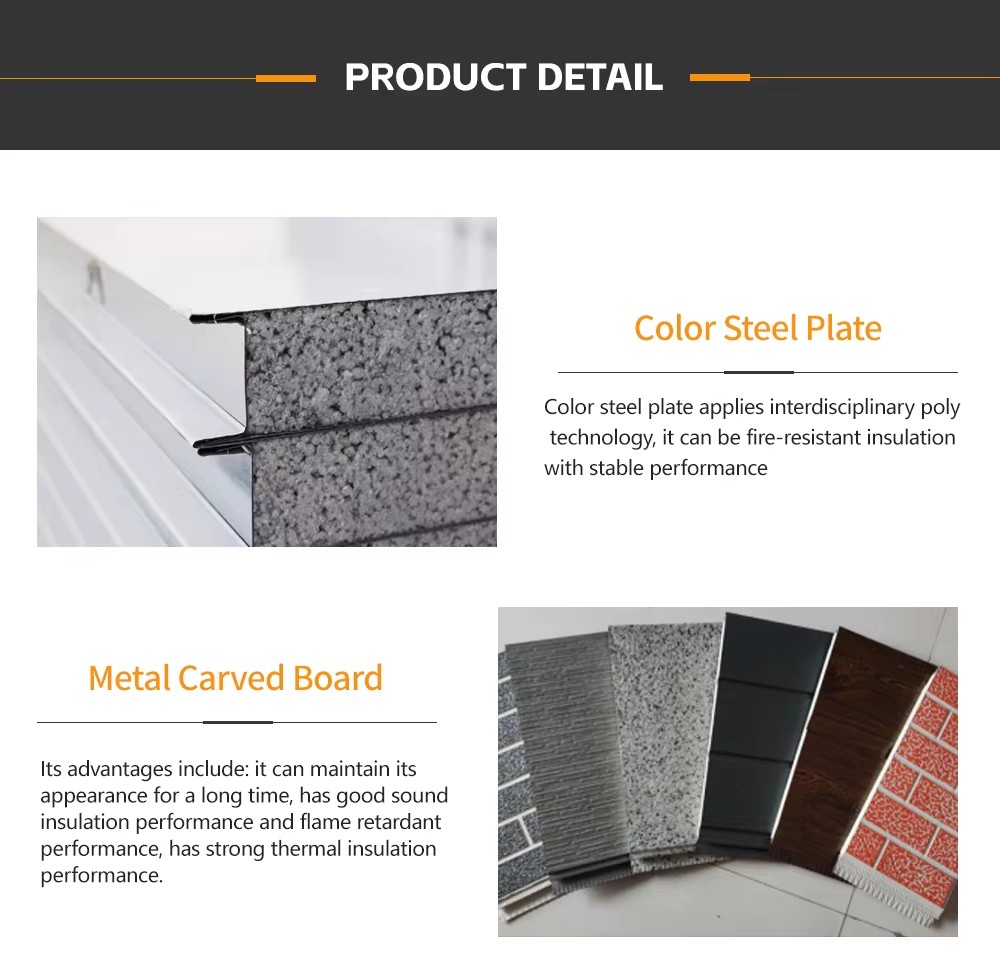

| wall panel | 950 type 50mm rock wool composite board, double-sided iron sheet 0.3mm, bulk density 80KG/m³, double-sided orange peel pattern, double-sided film coating |
