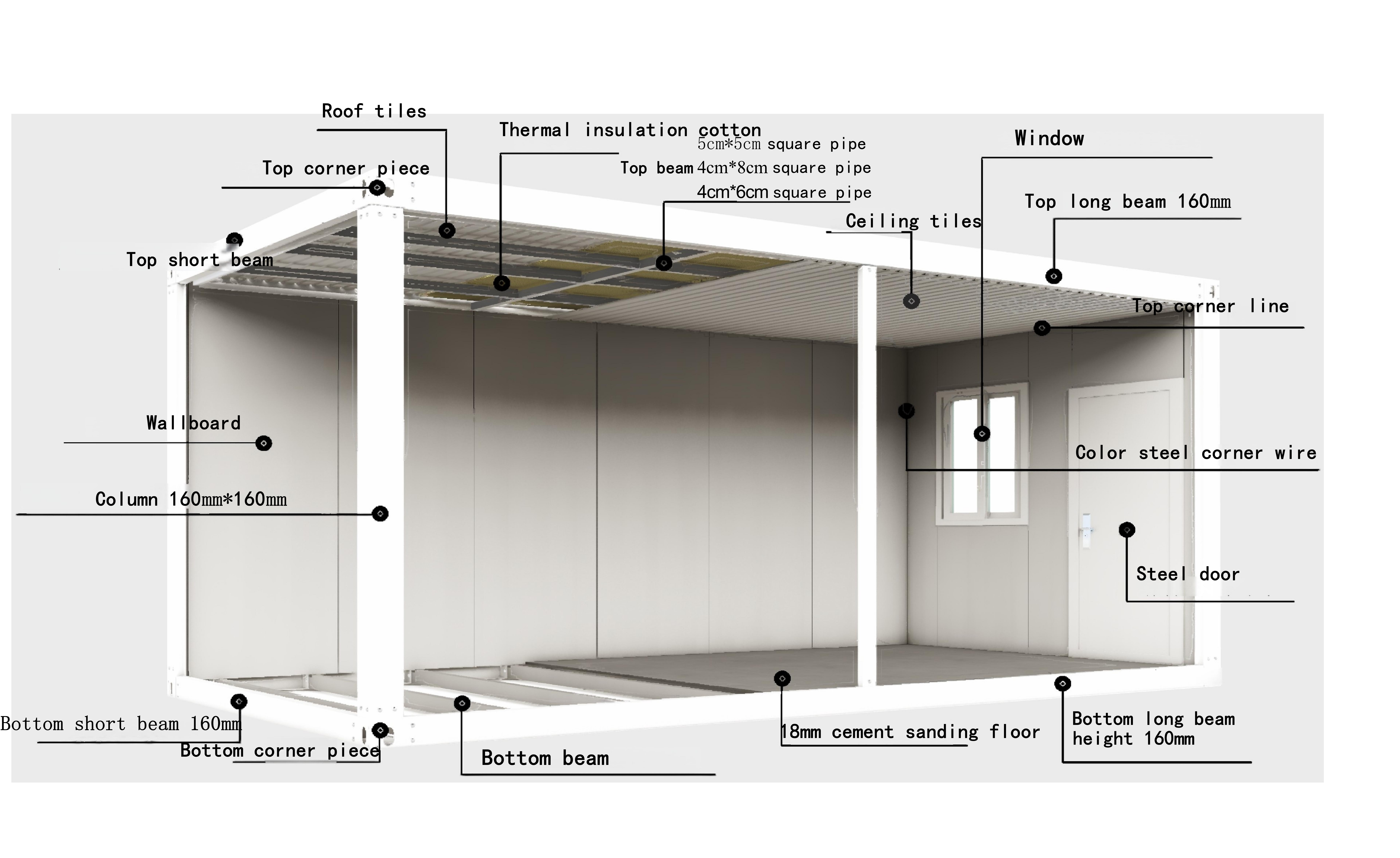

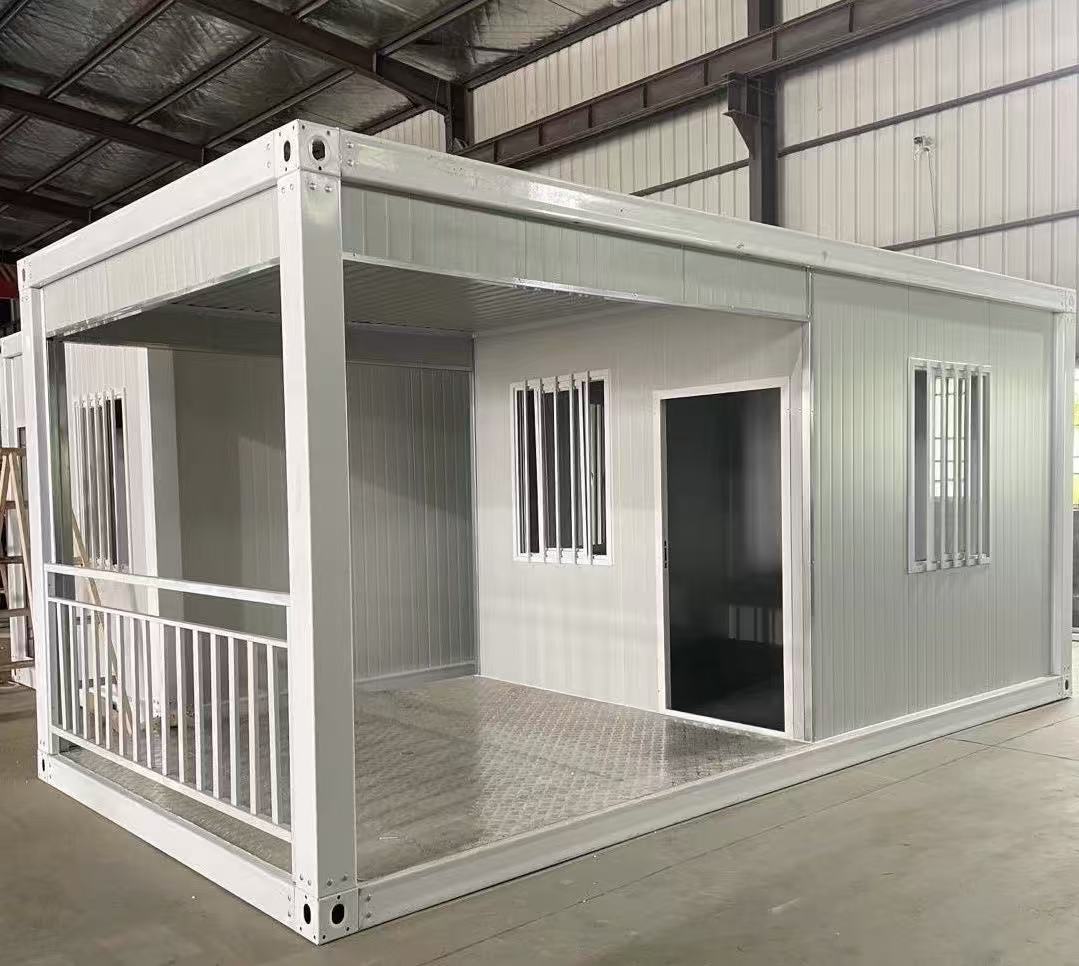

| Integrated House Parameters | |
|---|---|

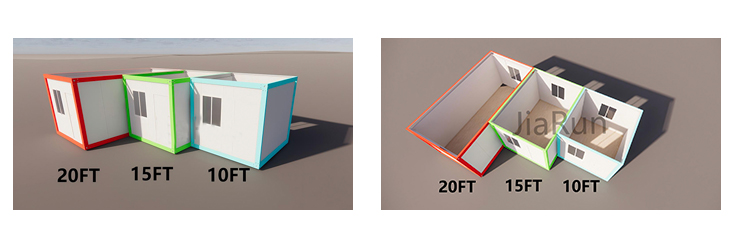

| Size | 10FT/20FT/40FT Customized |
| Parameter Indicators |
Fire resistance: Class A Wind resistance performance: 0.50kN/m² Life: Over 35 years Seismic performance: Level 8 |
| Main Frame |
Galvanized formed beam, Electrostatic spray paint treatment, traffic white, thickness ≥ 80 μm Bare steel Actual Thickness: 2.5mm/2.25mm/1.95mm/1.75mm(±0.01) Top frame: Long beam & Short beam: Galvanized beam, width 160mm Bottom frame: Long beam & Short beam: Galvanized beam, width 160mm Steel column: Column: Galvanized column, width 160mm x160mm; Bolt: High strength carriage bolt Turning accessories: 160mm*160mm, Actual Thickness: 3.5mm/3.0mm(±0.01) |
| Square Tube |
Chassis purlin: 50*100 galvanized square tube, Actual Thickness: 1.2mm/1.1mm/1.0mm(±0.01); 20*40 galvanized square tube, Actual Thickness: 1.0mm/0.7mm(±0.01) Top purlin: 50*50 galvanized square tube, Actual Thickness: 1.4mm/1.2mm(±0.01); 40*60 galvanized square tube, Actual Thickness: 1.0mm/0.8mm(±0.01); 40*40 galvanized square tube, Actual Thickness: 1.0mm/0.8mm(±0.01) Door frame pillar: 20*40 galvanized square tube, Actual Thickness: 1.0mm/0.7mm(±0.01) |
| Pressure Plate Groove | Irregular parts, Actual Thickness: 1.0mm/0.7mm(±0.01) |

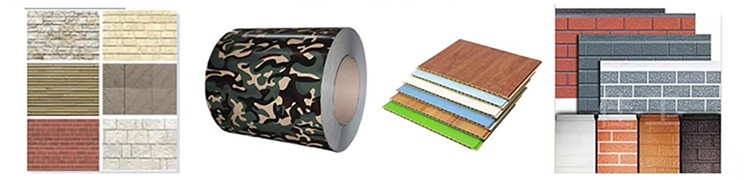

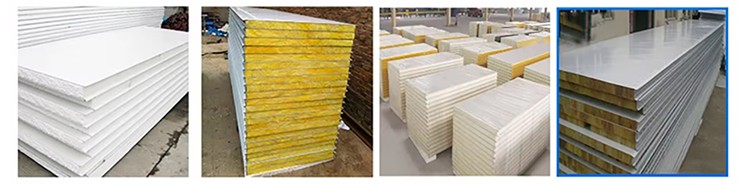

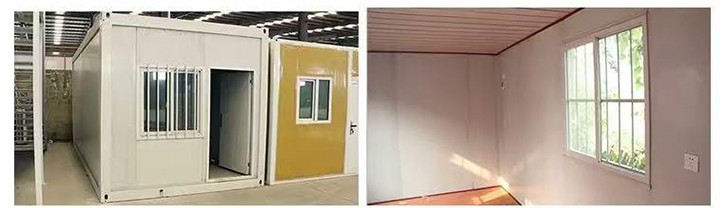

| Wallboard | 50mm/75mm/100mm foam board, rock wool, silicon rock board, 0.25mm/0.30mm/0.4mm steel plate |

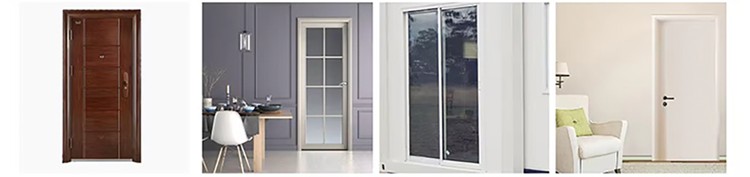

| Door | Steel door, W930mm x H2035mm, 0.3mm/0.25mm steel plate(±0.01) |
| Window | Sliding window, W925mm x H1200mm, single glass |

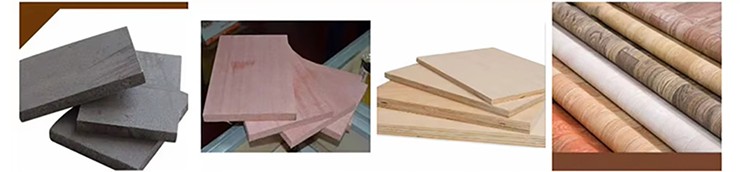

| Floor | 18mm fireproof fiberglass board |
| Roof Tiles | Thickness ≥0.40mm |
| Ceiling Tiles | Thickness ≥0.20mm |
| Thermal Insulation Cotton | 50mm glass fiber insulation cotton |
| Auxiliary Materials | The standard includes all screws, structural adhesives, etc. |
| Circuit | Adapt power supply according to different countries and regions |
