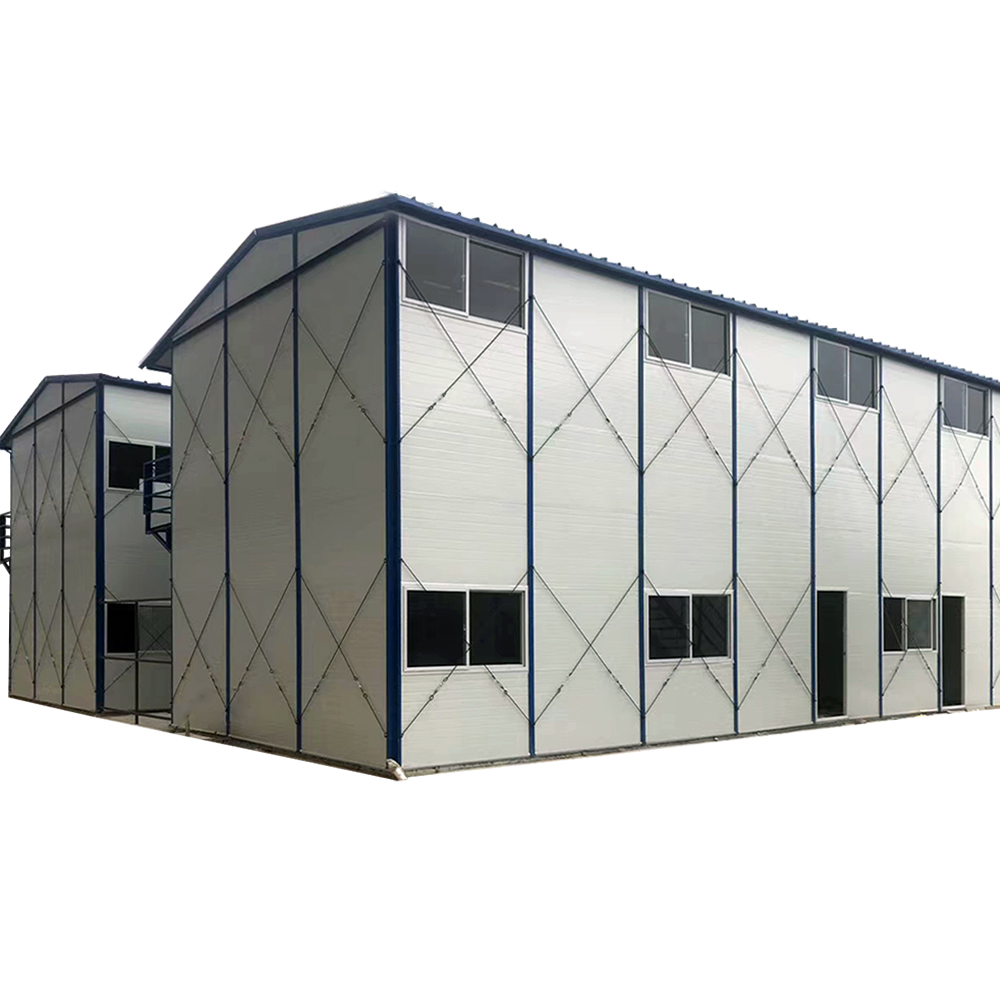

Factory Priced K-Type Prefabricated Modular House Site Office Accommodation Temporary Offices Construction

Product Description

📋 Product Description

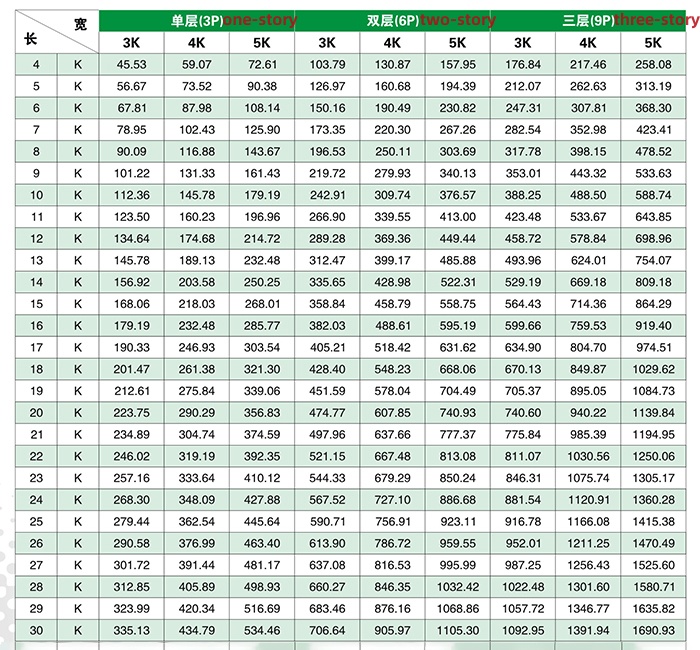

K House Area computation:

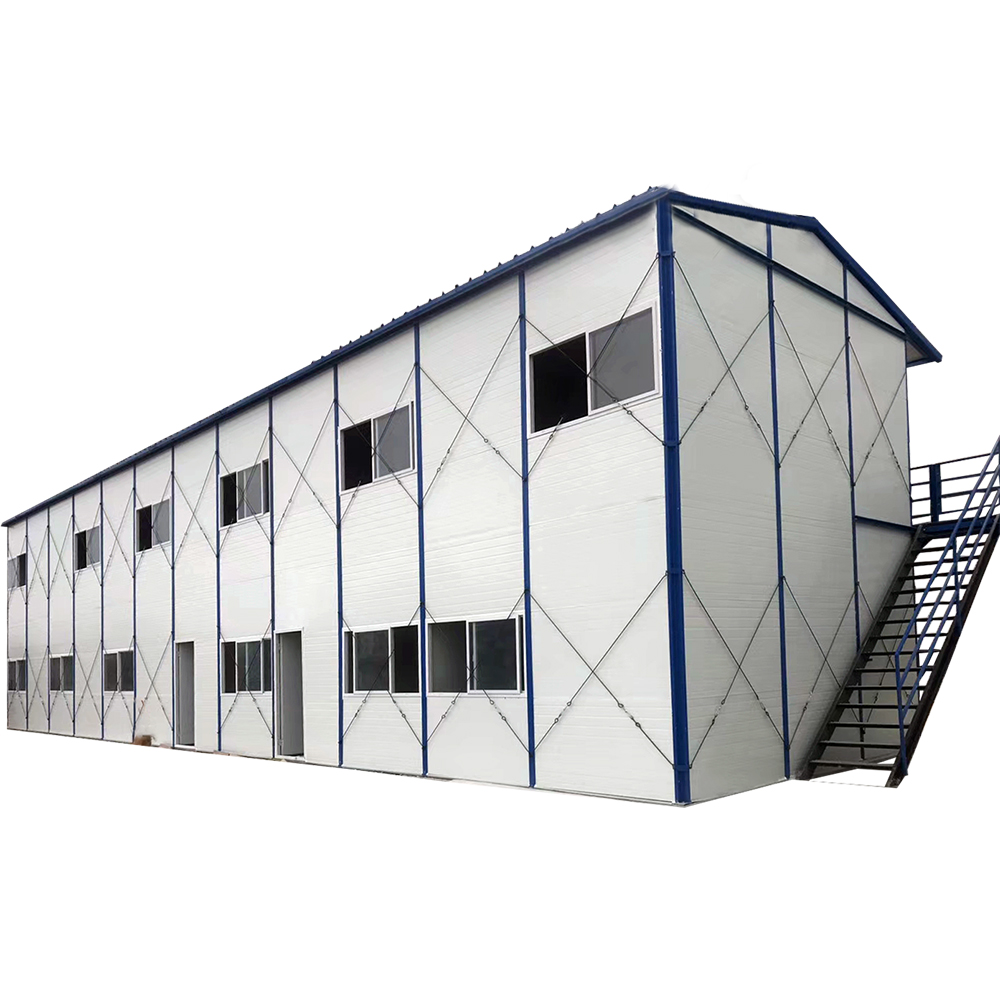

Pay attention to: Standard Two Floor prefabricated house with 2 staircase, one on the left side and the other one on the right side. Each standard staircase is 4.5㎡, corner staircase is 16㎡, and it's usually for Three Floor prefabricated house. When increase and decrease staircase, according to this amount.

Area computation rule:

1. Prefabricated house area = Length of exterior wall * Width of exterior wall * number of plies.
2. Standard staircase is 4.5㎡ and corner staircase is 16㎡.
3. Rain cover is half of projected area.
4. Walkway board is according to projected area.
5. Awning panel blow out of wall in the range of 200mm, not calculating area.
6. Totally Area = (1) + (2) + (3) + (4)
7. Project quantity computation rule according to above-mentioned formula for cost settlement expect special explanation.

Instruction: Above computation area rule also applies to flat roof prefab house.

⚙️ Specification
Size: width, length(K): 1K = 1.82 meter
height: P, P = 0.95 meter
Floor loads: 150kg/square meter
Roof loads: 35kg/square meter
Wind pressure resistant 100km/hour
Window PVC sliding window
Door Sandwich panel door
📦 Packing & Delivery

Professional loading team:

We have a professional loading team and cranes, which can complete the loading quickly and meticulously. We have strict enforcement standards when it comes to protecting our products.

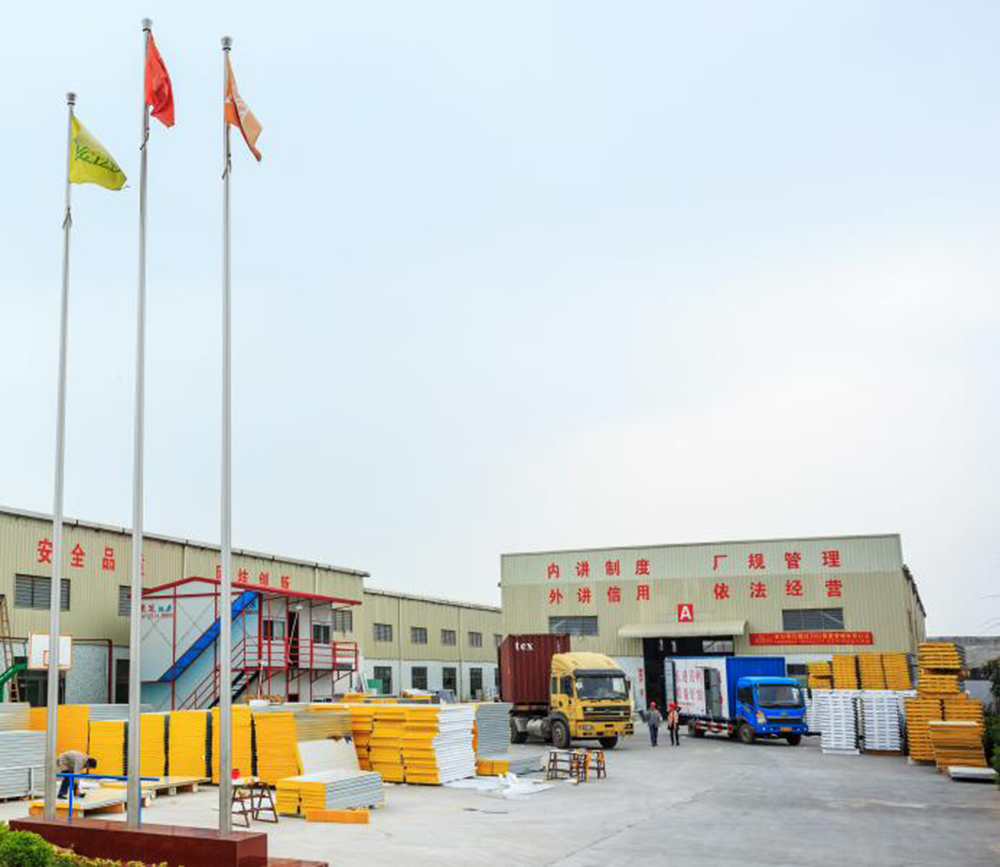

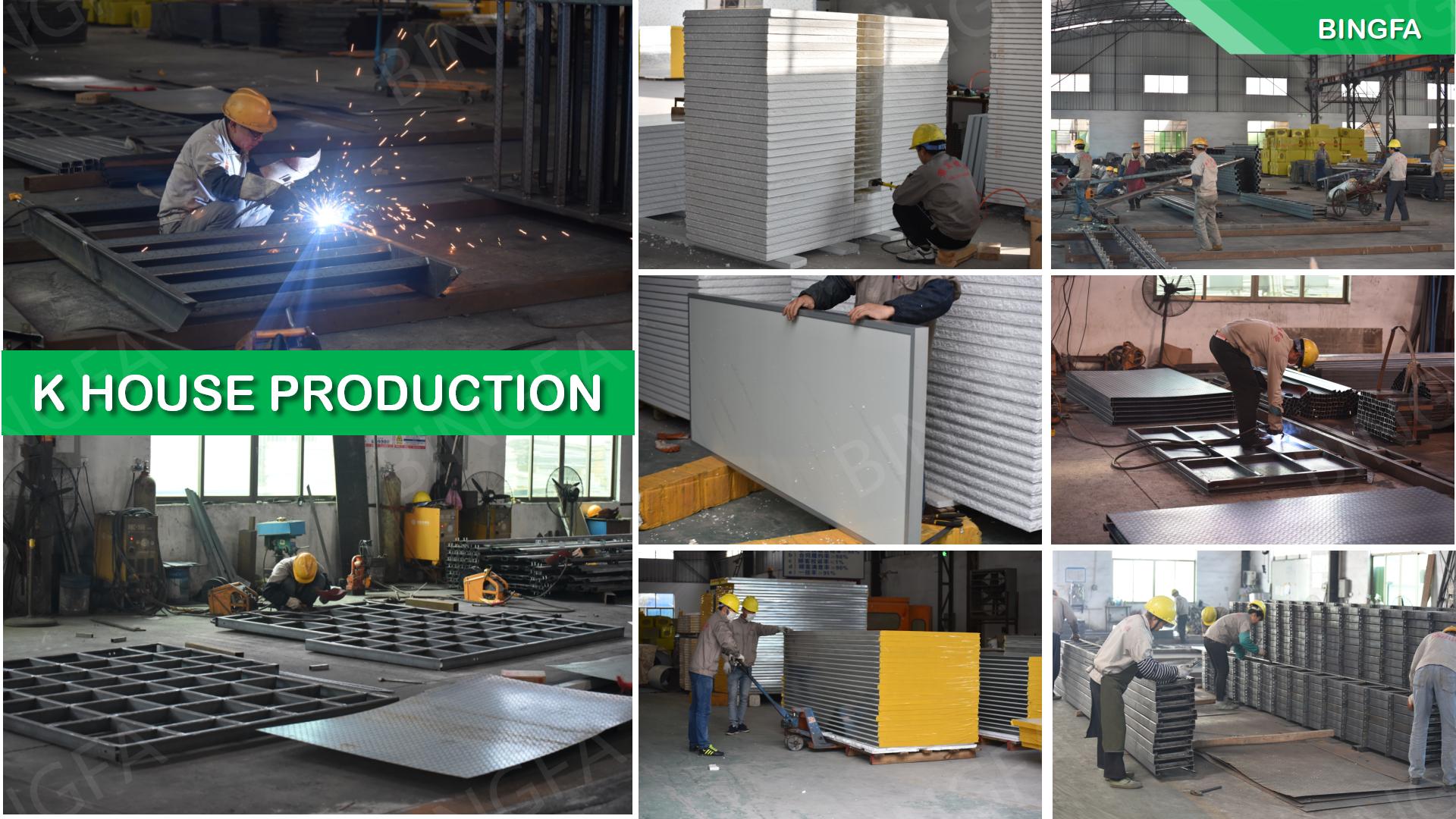

🏢 Production Capabilities

As a professional manufacturer of prefabricated houses, container houses, light steel villas, steel structures and sandwich panels. Our facility is closely connected with highway, railway and port facilities. Within 10 years, our products have occupied a certain market share and have been highly praised by domestic and foreign customers.

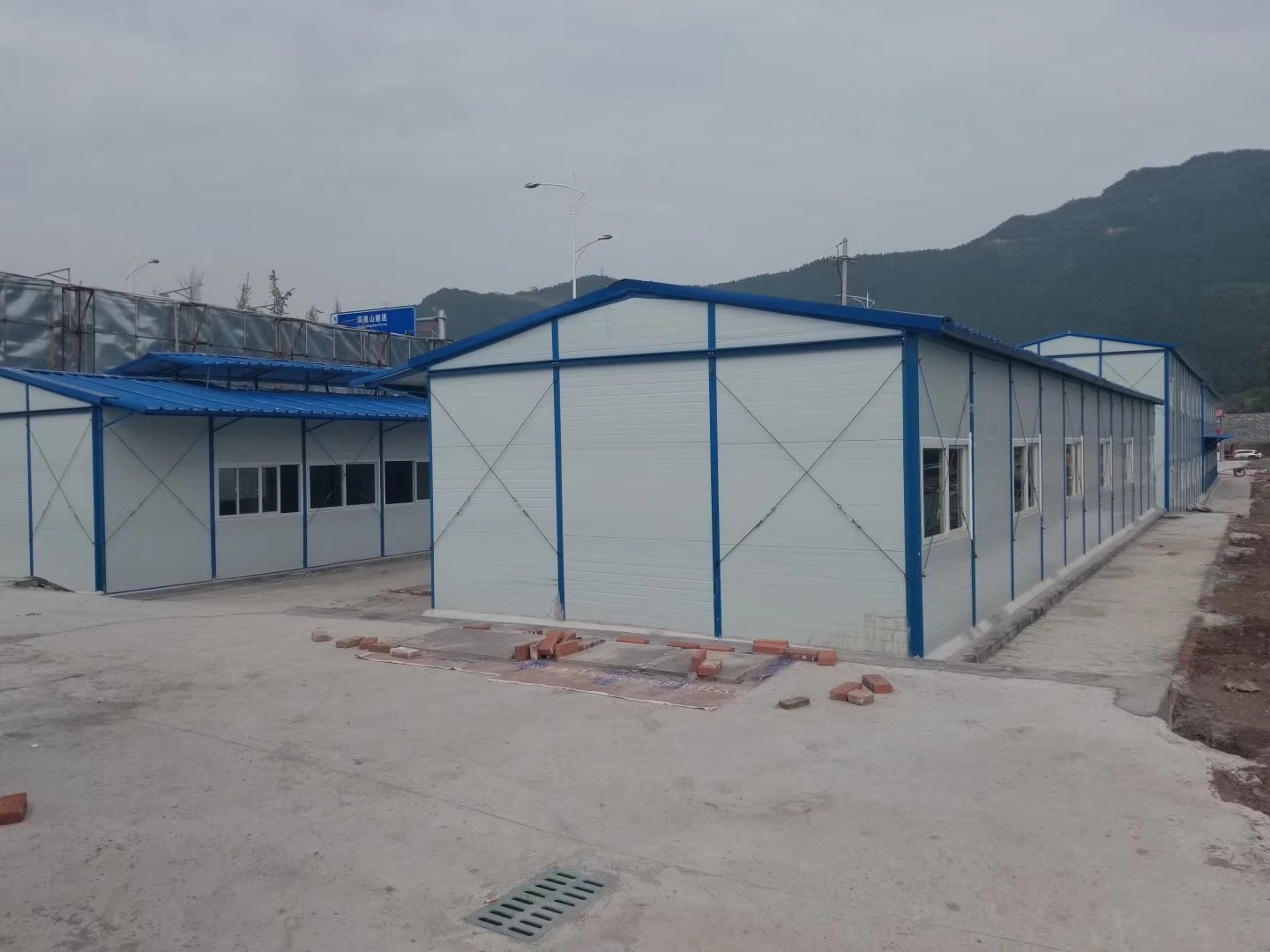

Our products are widely used in construction site offices, labor camps, workers' accommodation, canteens, laboratory buildings, storage rooms, warehouses, workshops, kitchens, lounges, toilets, taverns, etc. The annual output of the product is as follows:

  • Steel structure: 10,000 tons
  • Container house: 6,000 units
  • Prefabricated house: 360,000 square meters
  • Light steel villa: 200,000 square meters
  • Sandwich panel: 2,000,000 square meters

We always enhance our application abilities of prefab house and promote the new-green type house under the work of our strong technical team, strict QC team, talent R&D team, rich experienced Sales Team, and skilled production team.

FAQ
1. How is the total area of a K-type prefabricated house calculated? The total area is the sum of the exterior wall area (Length * Width * Plies), staircases, rain covers (half area), and walkway boards.
2. What is the wind resistance of these structures? Our prefabricated houses are designed to be wind pressure resistant up to 100km/hour.
3. What kind of load can the floors and roof handle? The floor load capacity is 150kg per square meter, and the roof load capacity is 35kg per square meter.
4. What materials are used for the doors and windows? We typically use PVC sliding windows and high-quality sandwich panel doors for durability and insulation.
5. Are your products suitable for extreme construction environments? Yes, our structures are widely used for site offices, labor camps, and warehouses in various climates and locations worldwide.
6. How is the loading and shipping handled? We use a professional loading team and cranes to ensure products are handled meticulously and loaded quickly into containers.
