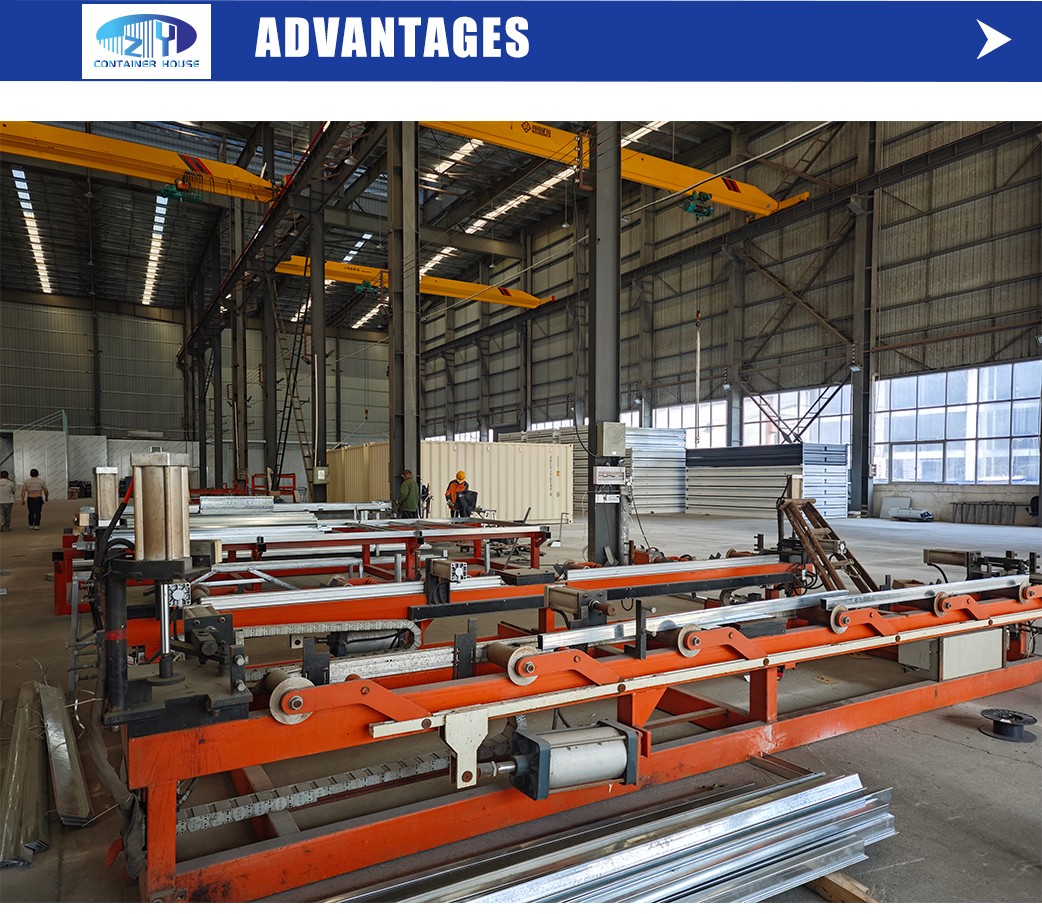

We utilize automatic robot welding technology to ensure high precision, eliminate dimensional errors, strengthen joints, and produce aesthetically clean solder points.

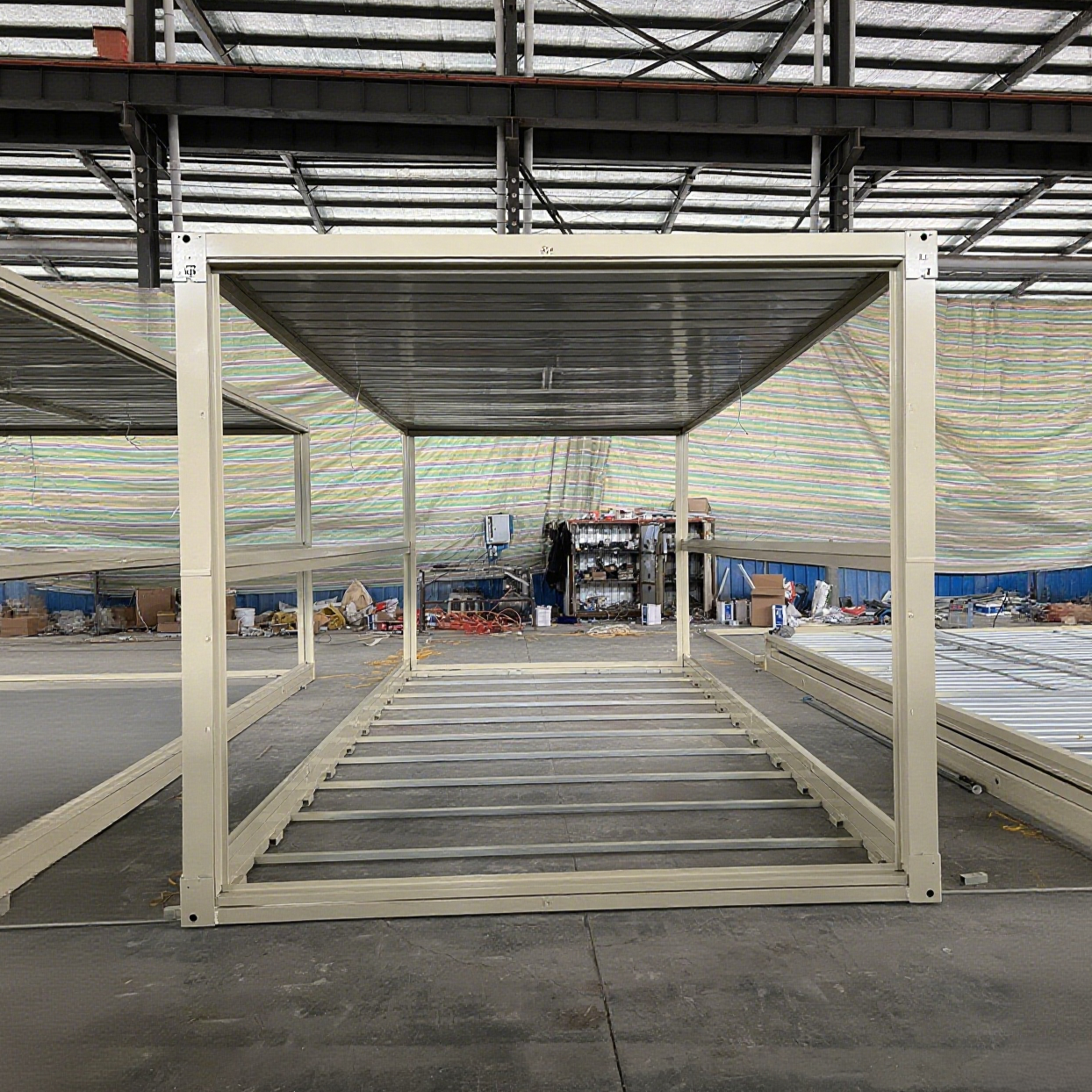

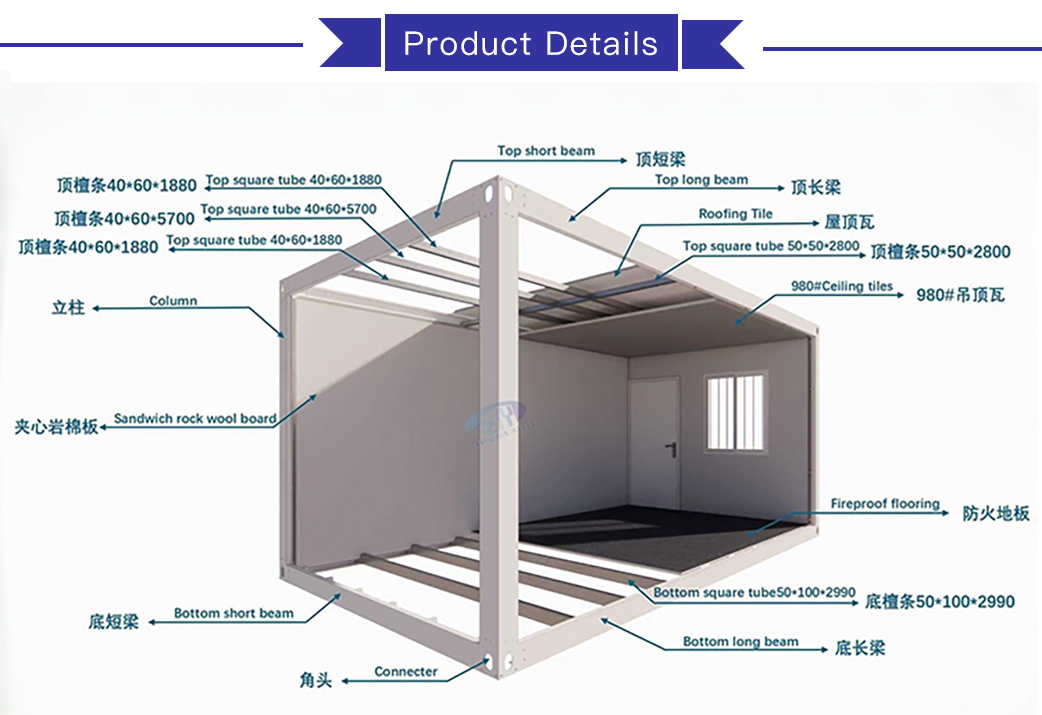

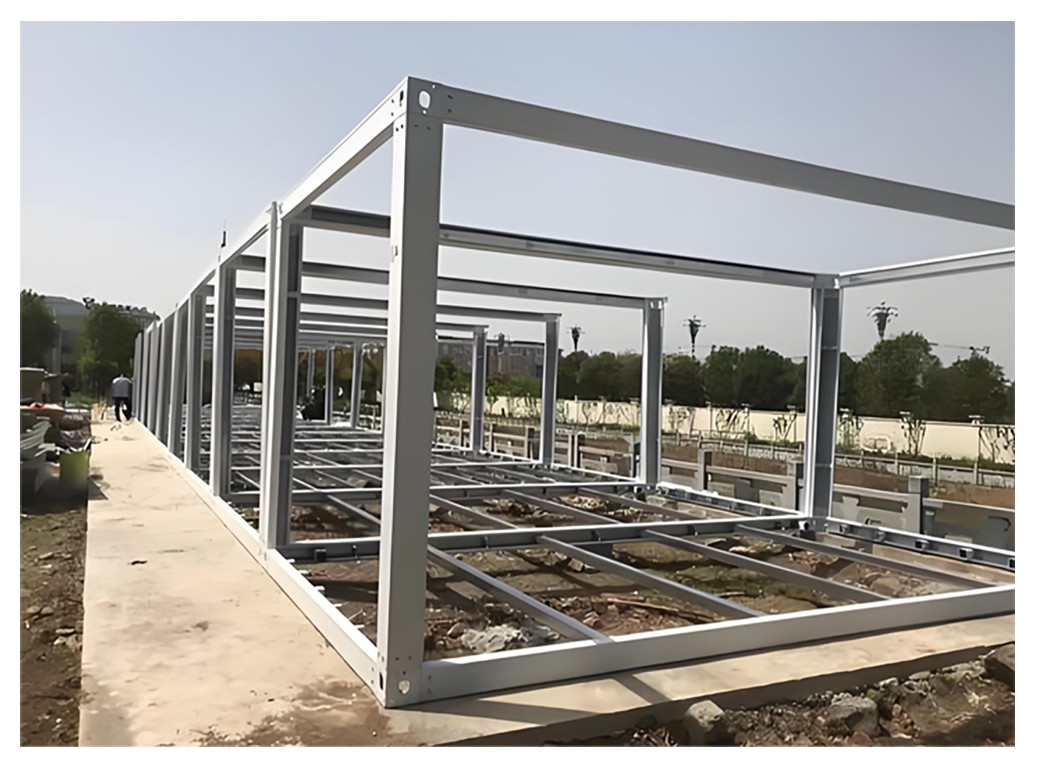

A. All beams, columns, and purlins are constructed from hot-dip galvanized Q235 steel, offering superior protection against rust compared to common black steel or electrolytic plates.
B. Standard models utilize 2.5mm galvanized steel, preventing structural deformation during hoisting and transportation (unlike factories utilizing 2.3mm steel post-painting).

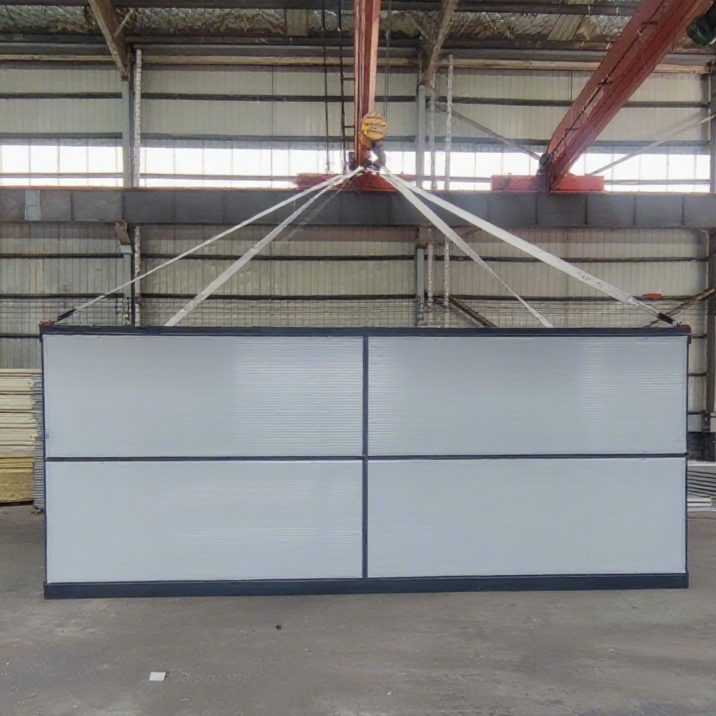

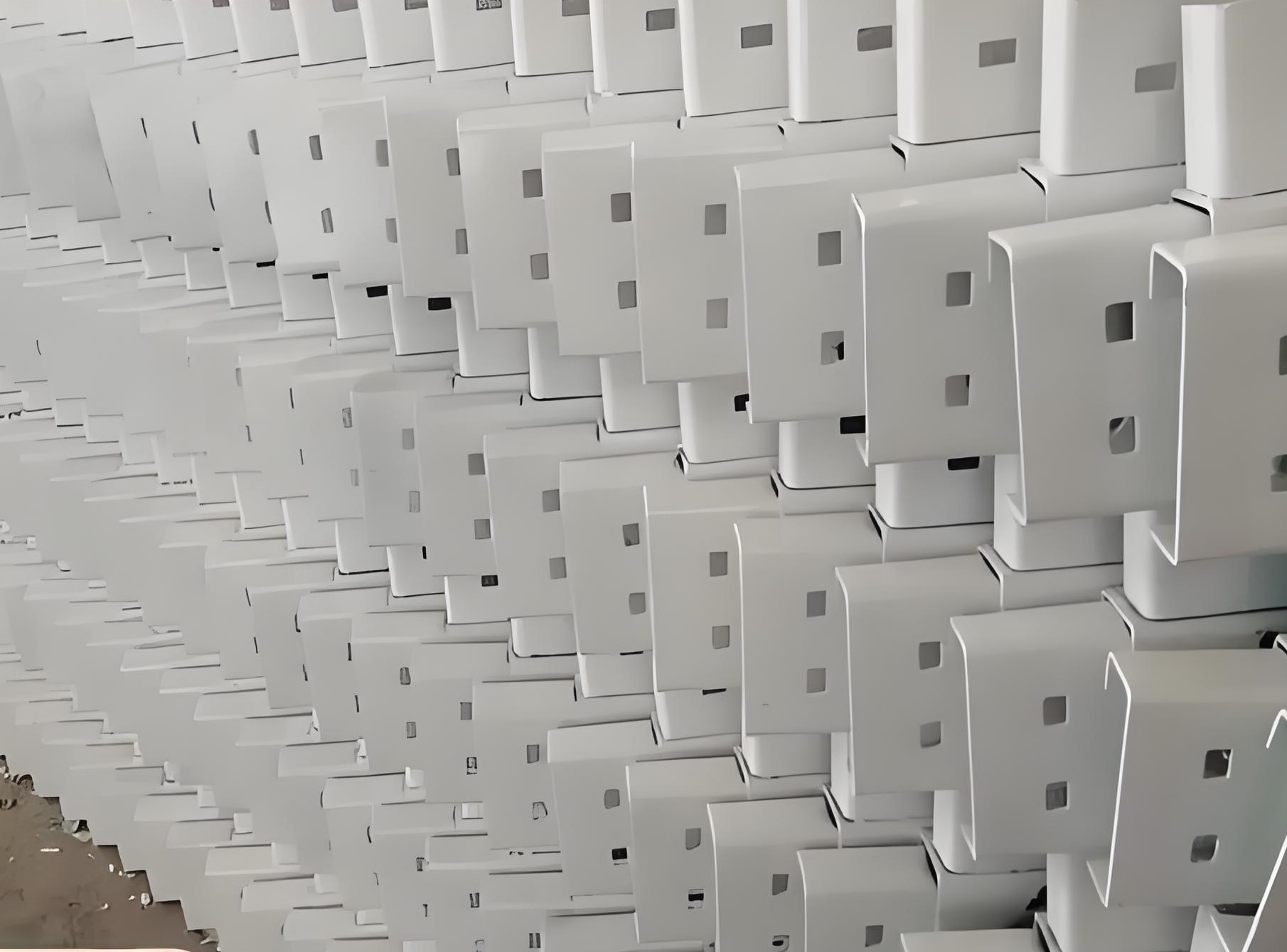

Constructed with 3.5mm powder-coated galvanized steel. Connects beams, stringers, and columns, enabling completed houses to be safely lifted via corner holes.

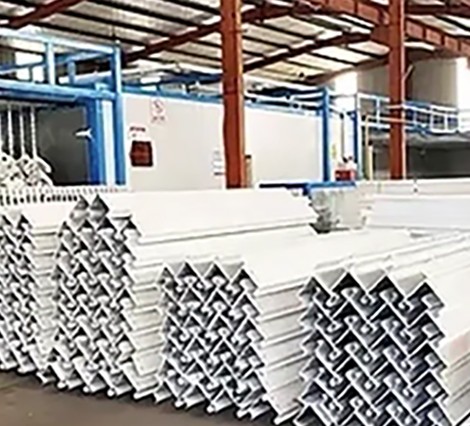

Made of Q235 galvanized steel strip with pre-drilled connection holes at each end. Allows secure assembly of columns and corner fittings. Customizable column height.

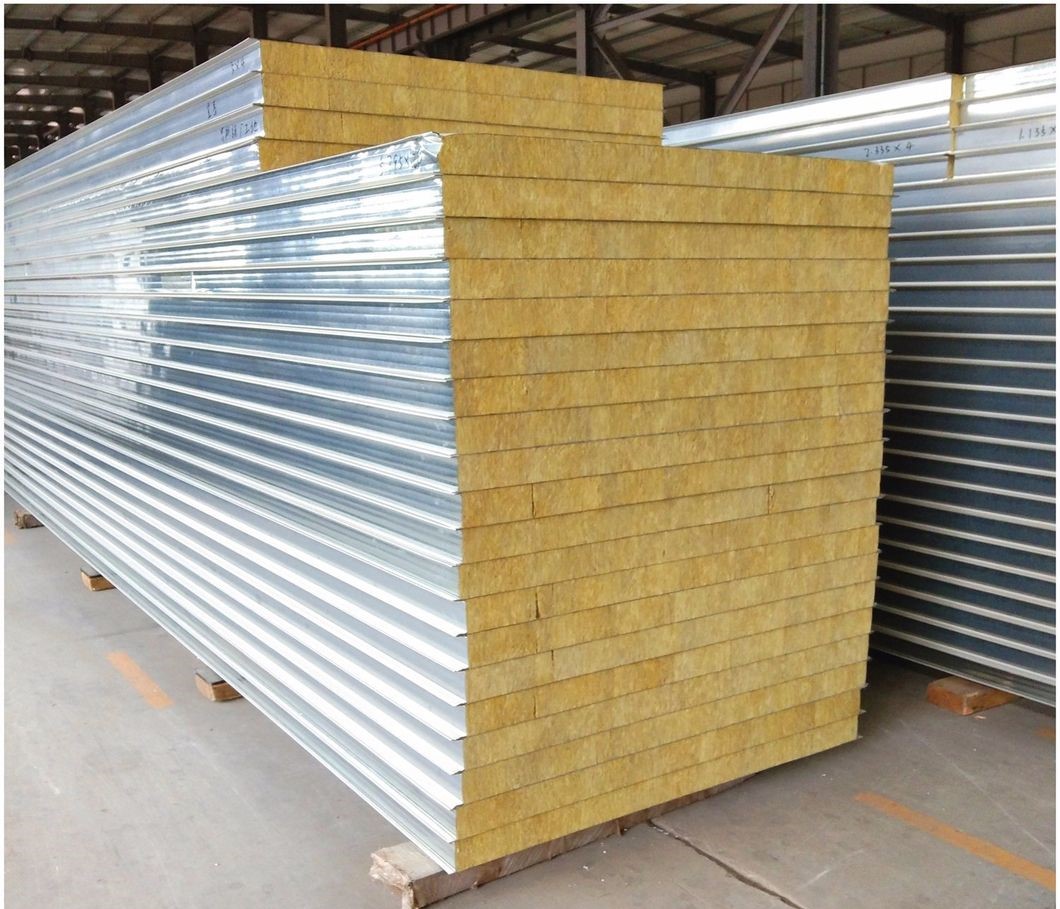

Features rock wool or EPS sandwich panels. Steel sheet thickness, insulation density, and panel thicknesses (50mm / 75mm / 100mm / 150mm / 200mm) can be configured to requirements.

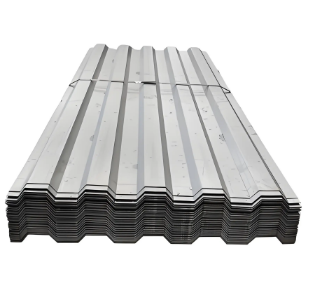

Roof and ceiling tiles use painted galvanized steel for reliable rust resistance. The corrugated tile structure ensures complete waterproof performance.
| Type | Component Name | Specification details |
|---|---|---|
| Material | Wall | EPS, rock wool, glass fiber, or PU sandwich panels. Available in thicknesses of 50mm, 75mm, 100mm, or 150mm. |
| Roof | Steel frame, steel board, warm-proof fiberglass, and decorative board. External: 0.3mm galvanized steel sheet; Insulation: glass wool. Support: 16mm cement board; Interior floor decoration: 2mm rubber plastic flooring. | |
| Base | Permitted loading: 3.0kN/m² | |
| Door | Sandwich panel, steel, or wooden doors. | |
| Window | Aluminum alloy shutter window or plastic-steel window, single or double glass. | |
| Floor | PVC, plywood, or customized choice. | |
| Technical Parameter | Resistant Temperature | -20°C to 50°C |
| Wind Resistance | Grade 11 | |
| Earthquake Resistance | Grade 8 |

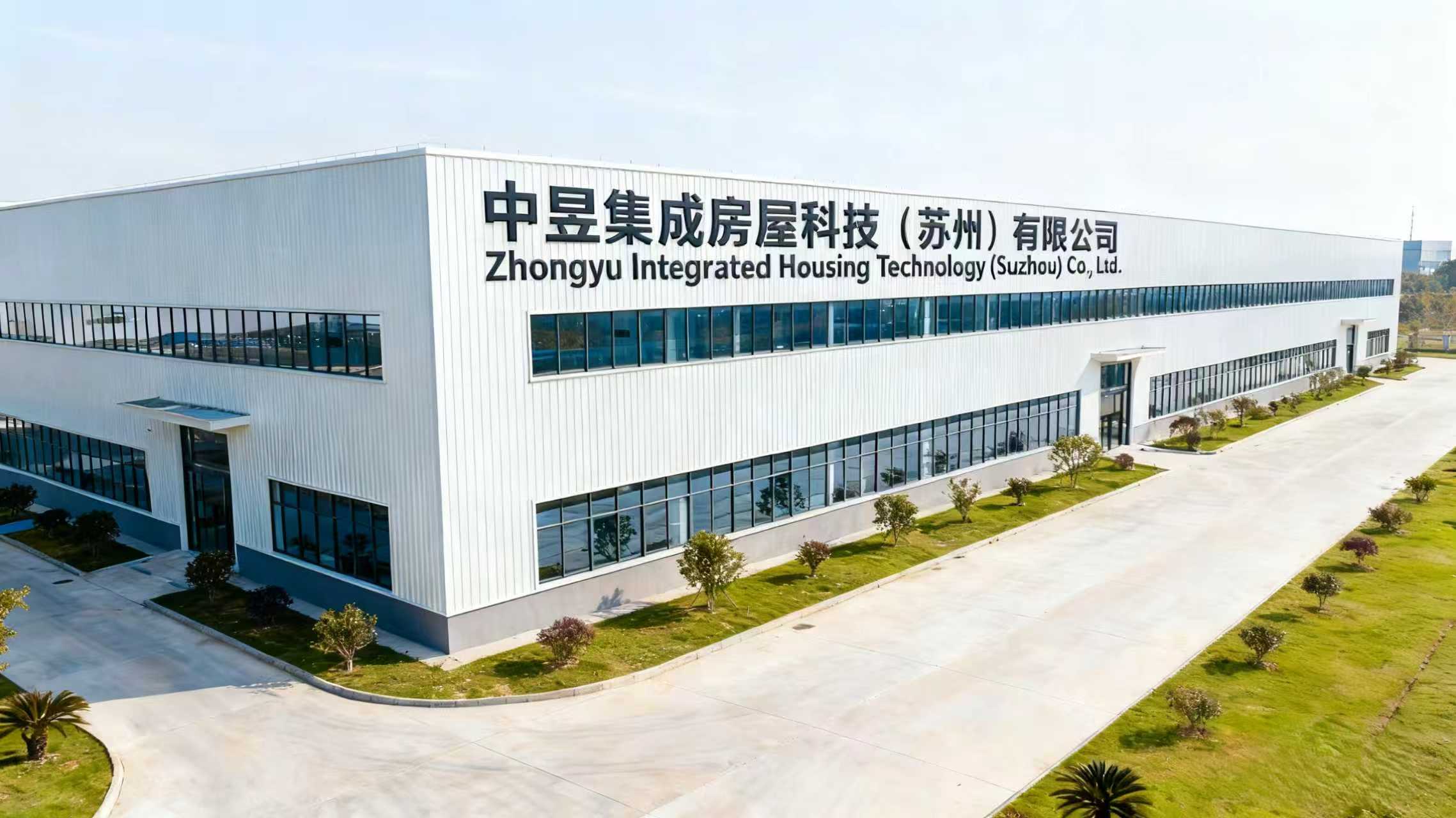

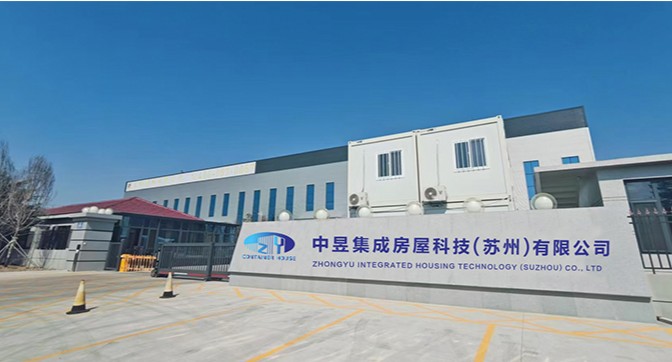

We are an integrated housing technology enterprise combining research, development, production, sales, and installation with over 15 years of industry experience.
We specialize in developing and manufacturing prefabricated modular container houses for office, accommodation, conference, warehousing, and exhibition purposes. Operating modern production equipment, we achieve a capacity of over 200 house units daily. Our structures are exported to over 160 countries and regions. We focus on innovative design, providing clients with environmentally sustainable modular building layouts, high-quality products, and support services.
We provide detailed installation instruction drawings and videos for every project. For large projects, we can arrange installation workers and supervisors on site. The fee for on-site services is negotiated with clients.
Normally, delivery time is 15 days after deposit received. For large orders, the delivery time is subject to negotiation.
a. Design Quality: We identify possible problems in advance and deliver a high-quality design solution.
b. Raw Material Quality: We select certified and qualified raw materials.
c. Production Quality: We employ precise manufacturing techniques, experienced labor, and strict quality inspection.
The warranty is 2 years. Within the warranty period, we will be responsible for all quality problems caused by our production.
Under standard climate and environment conditions, the service life of the container house steel frame is 20 years.
- Strong wind regions: We improve the wind-resisting ability of the internal structure.
- Cold regions: We increase the thickness of the walls, or use superior insulation material to improve anti-pressure capabilities.
- High corrosion regions: We use corrosion-resistant materials or apply specialized anti-corrosive coatings.
