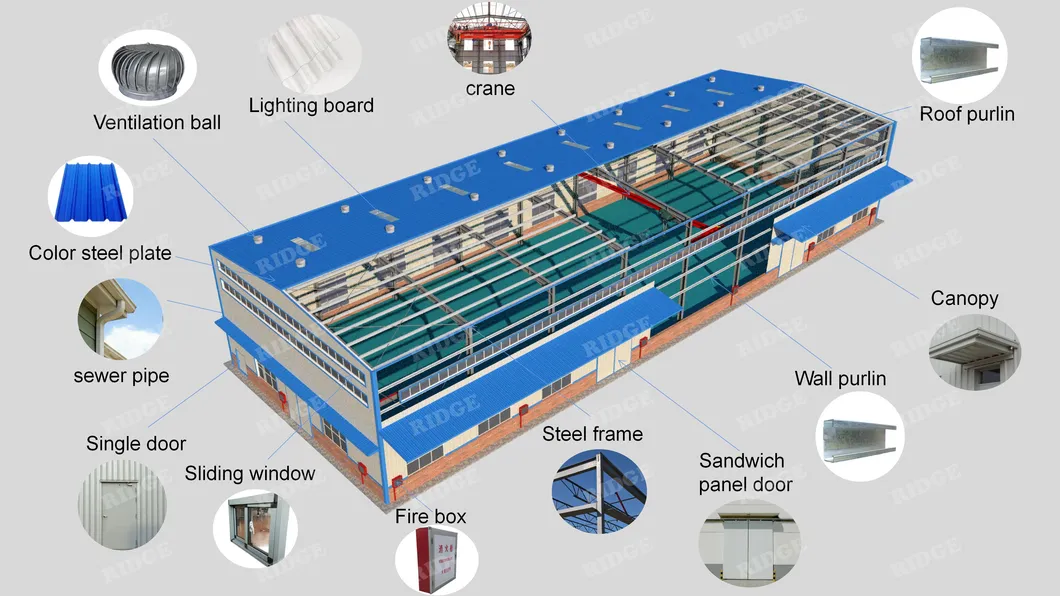

| Technical Specifications | |
|---|---|
| 1) Size (m): | Width * Length * Height; |

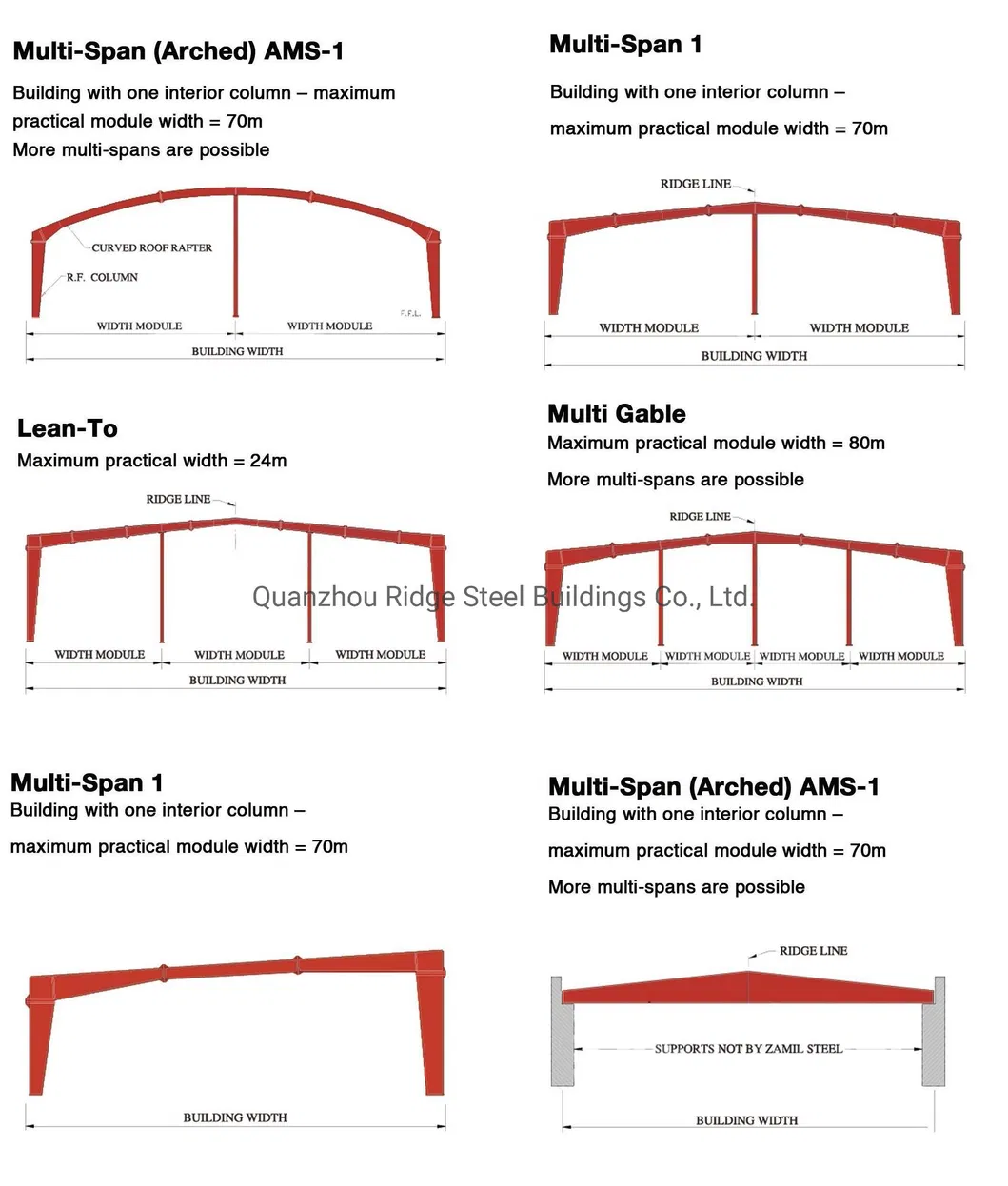

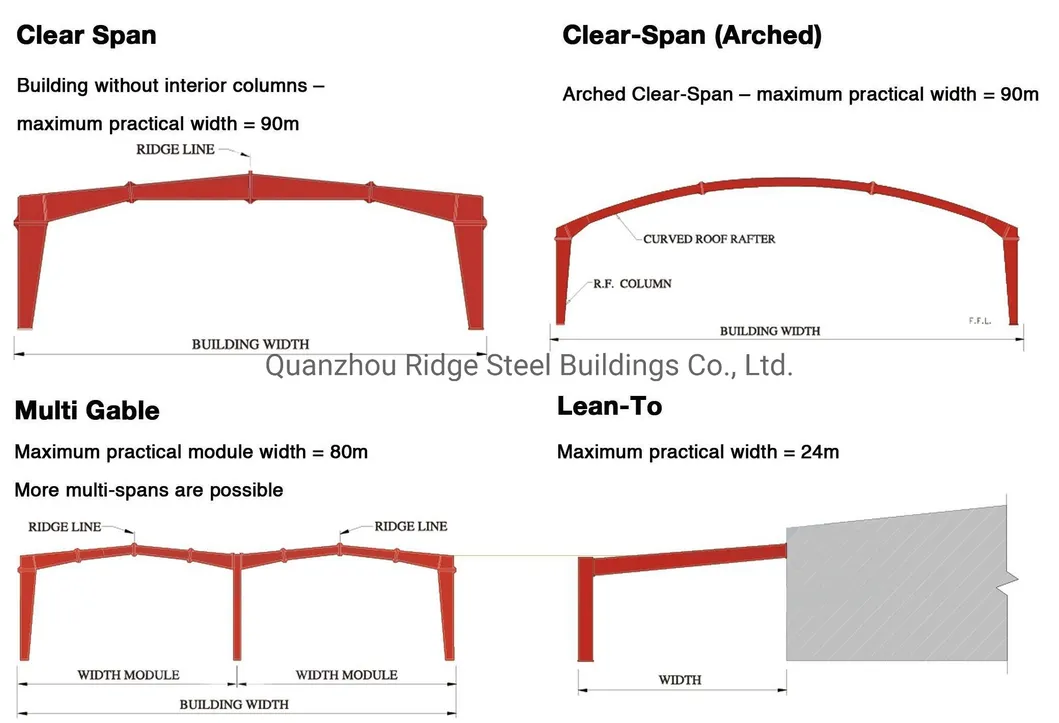

| 2) Type: | Single slope, double slope, Multi-slope; Single span, double-span, Multi-span; Single floor, double-floor, Multi-floor; |
| 3) Base: | Steel foundation bolts |

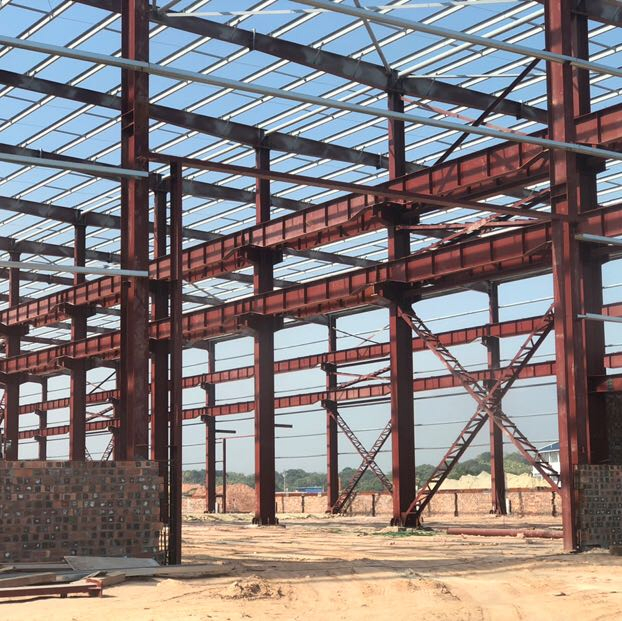

| 4) Steel frame: | Material Q345(S355JR)(Gr50) or Q235(S235JR) steel; Straight cross-section or Variable cross-section; Steel welded H section painted or galvanized. |
| 5) Bracing: | X-type or V-type or other type bracing made from angle, round bar, etc; |
| 6) Wall & Roof Purlin: | C section channel or Z section channel, Size from C80~C300; Z100~Z300; |
| 7) Roof & Wall Cladding: | Single color corrugated steel sheet 0.326~0.7mm thickness; Sandwich panel with EPS, ROCK WOOL, GLASS WOOL, PU etc insulation (50mm-200mm); Coating: PVDF, SMP, HDP, PE |
| 8) Window: | UPVC/PVC or Aluminum Alloy window frame with glass. |
| 9) Door: | Exterior: Sliding or Roller shutter door; Internal: 50mm EPS sandwich panel with aluminum alloy frame. |
| 10) Gutter: | Color steel sheet, galvanized steel or stainless steel; |
| 11) Rainspout: | PVC pipe |
| 12) Connection: | High strength bolts, intensive bolt, self-drilling screws. |
| 13) Accessories: | Skylight panel, Ventilation, Fasteners etc. |
| 14) Surface process: | Shot blasting Sa2.5; Two layers of Anti-rust Painting or galvanized. |
| Item | Popular Size | Popular Height |
|---|---|---|

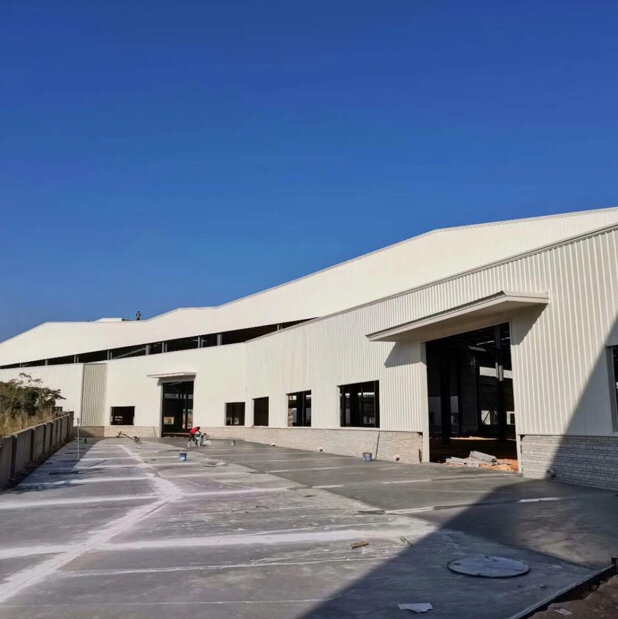

| Steel Warehouse | 30x50m | 5m |
| Steel Workshop | 40x60m | 7m |
| Storage Shed | 16x36m | 4m |
