Customization: Available
After-sales Service: Full Drawing, Install Guide or Training
Characteristics Of Goods: Floating Warehouse
Send Inquiry

Product Description

Basic Information
Model NO.
GY-SW037
Type
Bonded Warehouse
Structure Frame
Portal Frame
Software
Auto CAD, Pkpm, Tekla
Steel Code
Q355 & Q235
H Steel Type
Hot Rolled H-Beam or Welded H Beam
Wind Loading
80km/H-120km/H
Seismic Grade
7 Grade
Connection
Bolts Connection
Warranty
30-50 Years Service Life
Capacity
2000 Tons Per Month
HS Code
9406000090
Advantages of Steel Structure Building
  • Flexible layout for various industrial needs
  • High seismic and wind resistance with excellent ductility
  • Rapid construction process with a long service lifespan
  • Lightweight materials providing high quality at low cost
  • 100% recyclable and environmentally friendly materials
Main Steel Frame Specifications

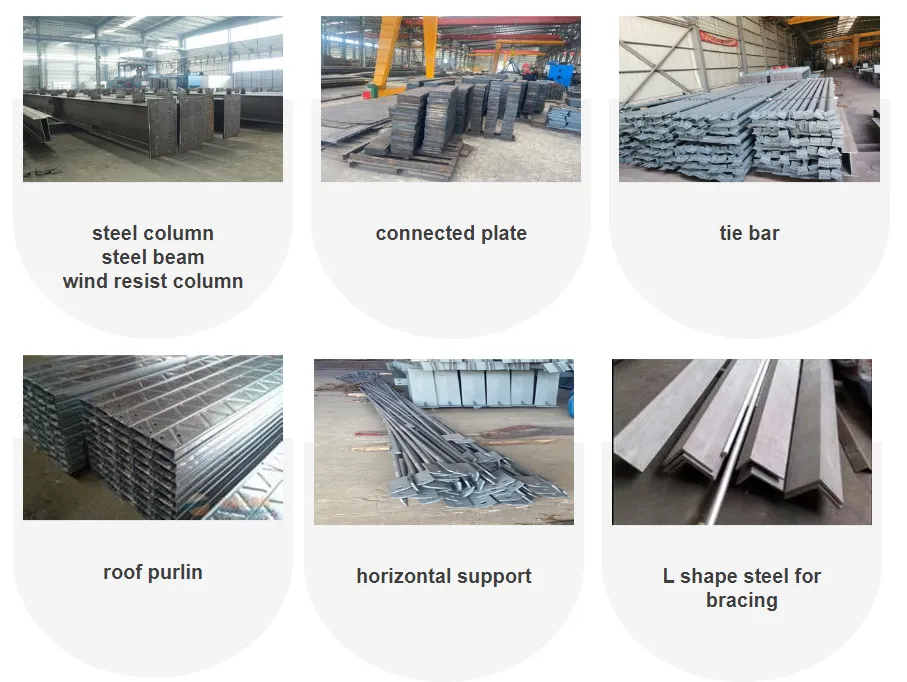

Steel Frame Structure
Component Description Material/Standard

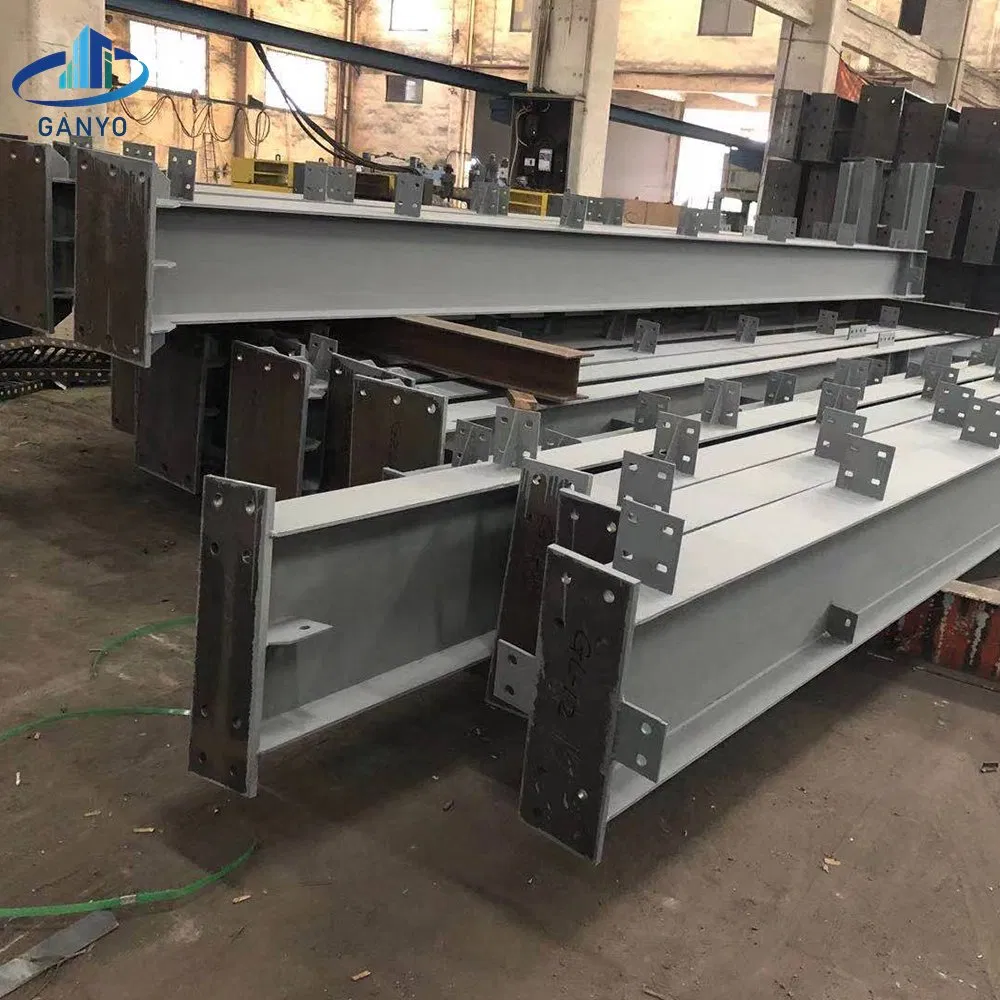

Steel Column & Beam Hot rolled H-beam or welded H beam Q355B
Connected Plate Thickness calculated by building size Q355B
Tie Bar ¢89*3 Q235B
Horizontal Support ¢20 round steel Q235B
Roof & Wall Purlin C160*50*20*2.0 or customized Q235B Galvanized
Surface Treatment Any color painting or hot-dip galvanize
Roof and Wall Project System

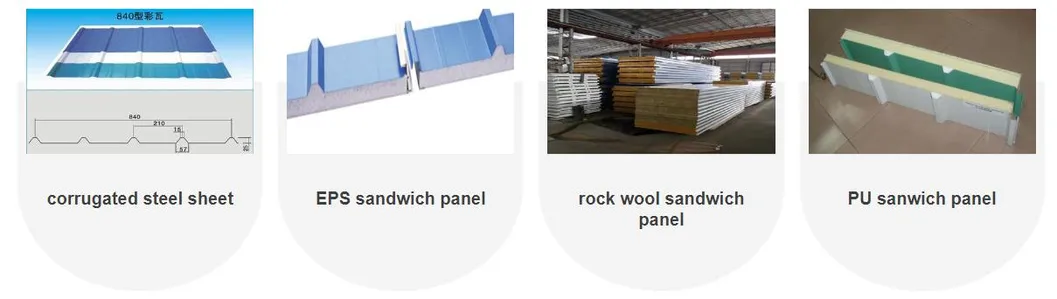

Roof and Wall System
Cladding Type Material Details Specifications
Steel Sheet Corrugated steel sheet 0.426mm, 0.476mm or customized
EPS Sandwich Panel Expanded Polystyrene core 50mm/75mm/100mm thickness
Rock Wool Panel Fireproof Mineral Wool 960/950mm width, various thickness
PU Sandwich Panel Polyurethane core High thermal insulation performance

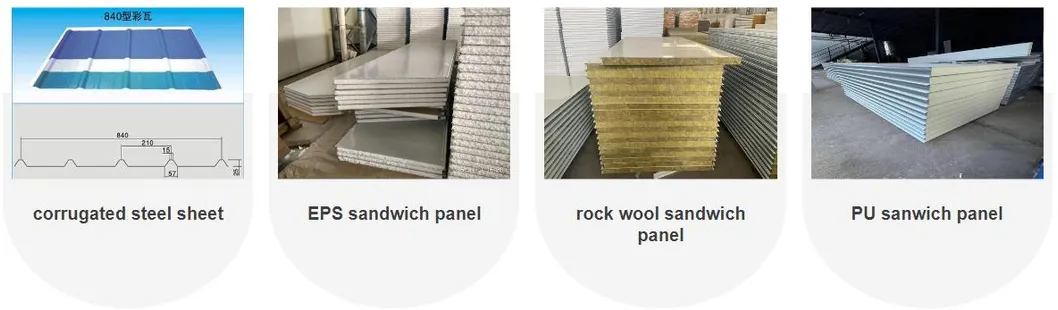

Wall Cladding Details
Accessories & Other Materials

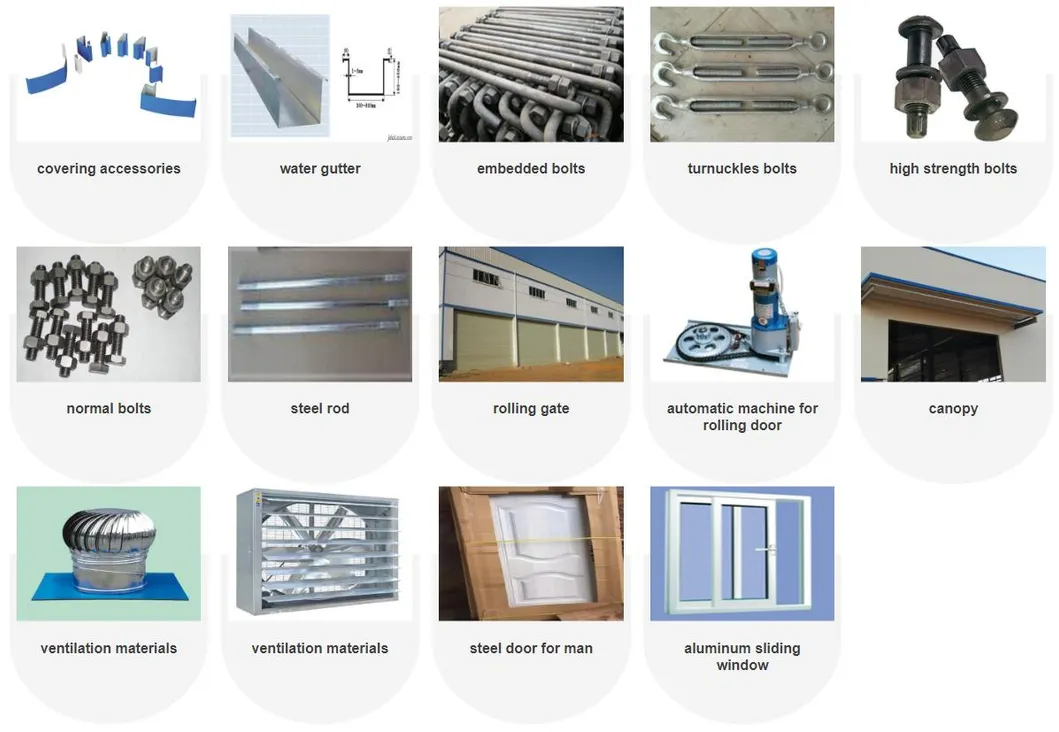

Building Accessories
Water Gutter0.8mm stainless steelWater PipeD110 or D160
Embedded BoltsM24 or customizedHigh Strength BoltsM20*80

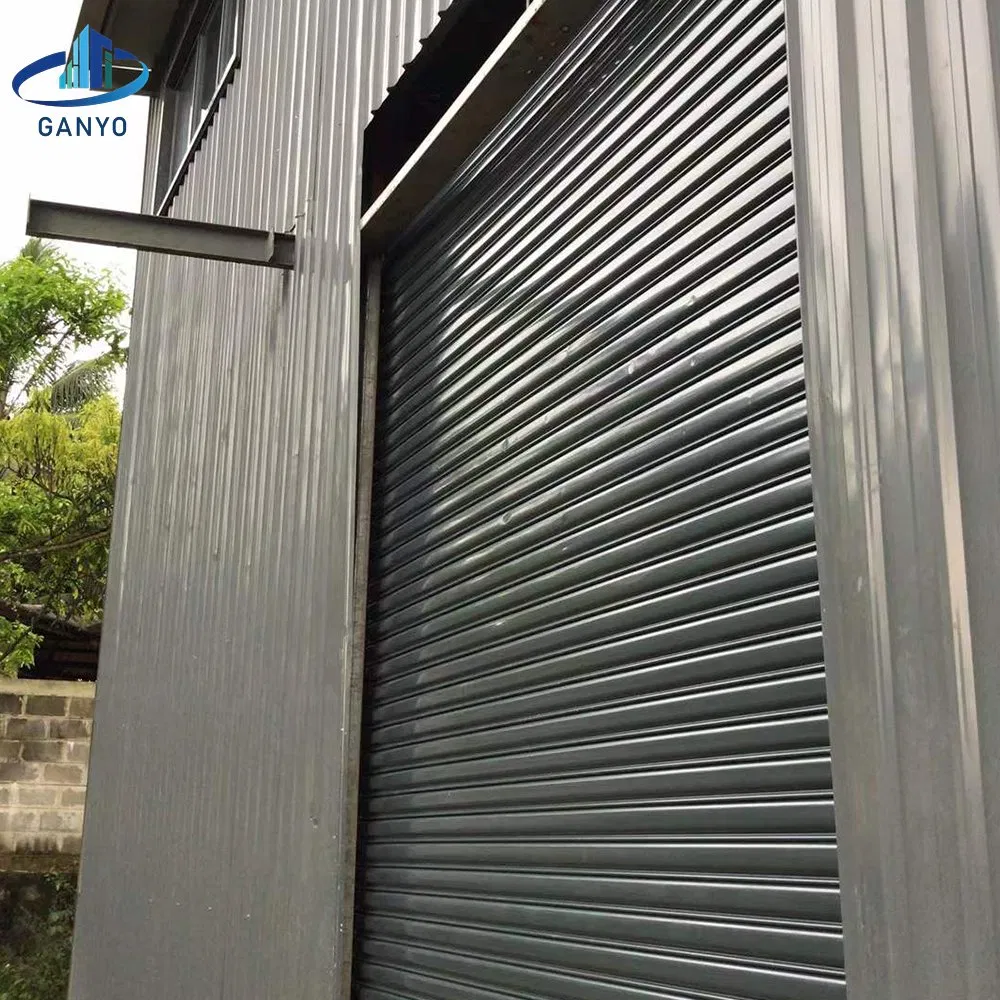

Rolling Gate4000mm*5000mmSteel Door880W*2050H
WindowsAluminum slidingVentilationNatural balls or industrial fans
Global Projects Showcase

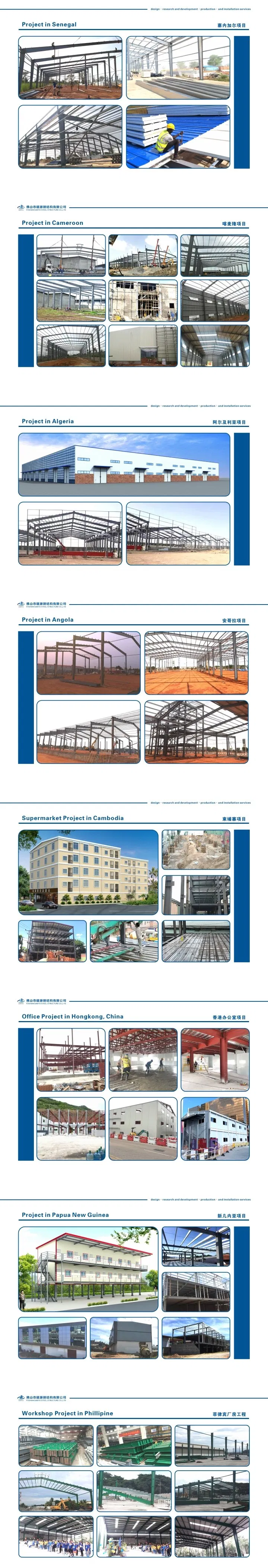

Project Display
Production & Shipping

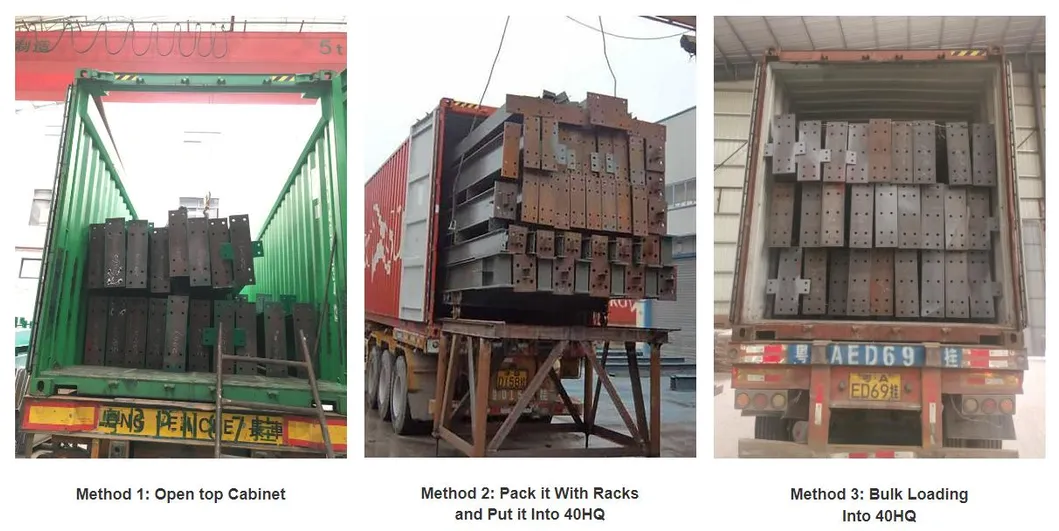

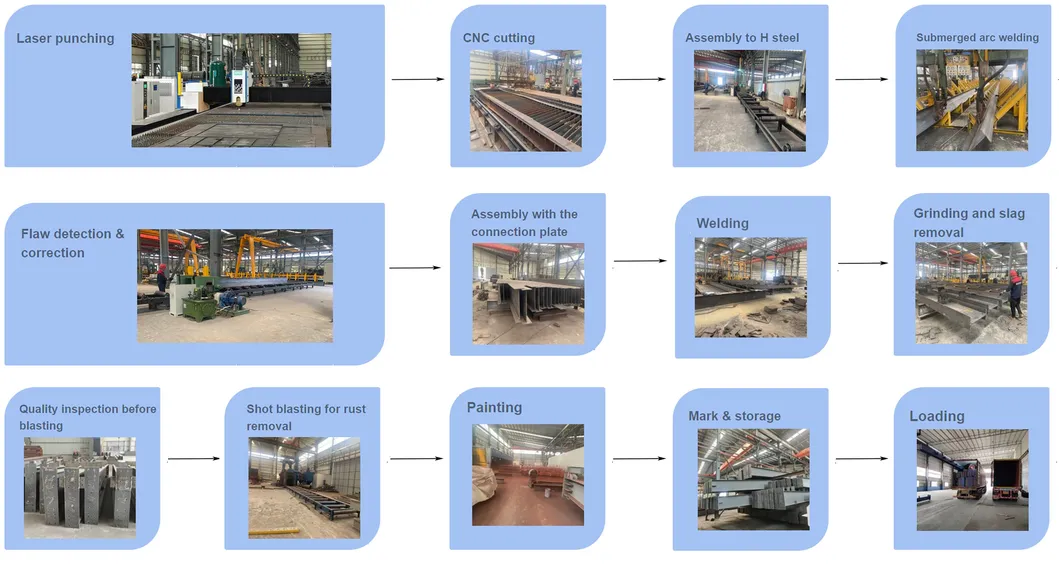

Production Process Packing and Shipping
Installation & Support

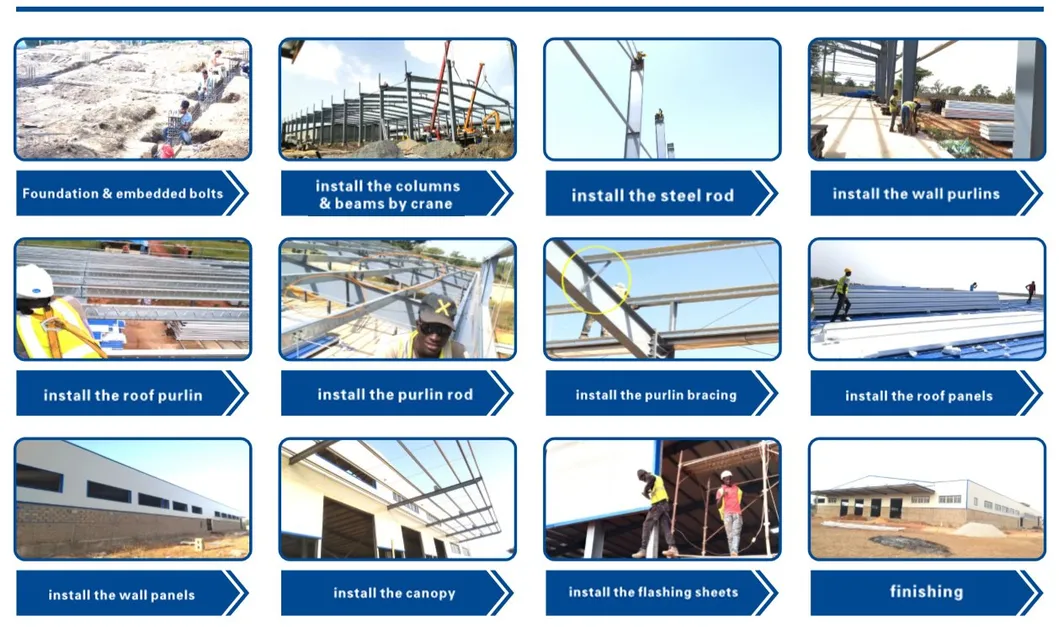

Installation Instructions
Professional Services
Design & Engineering: Full solution house design based on specific requirements.
Procurement: High-quality material sourcing under ISO standards.
Site Management: On-site installation supervision and technical guidance.

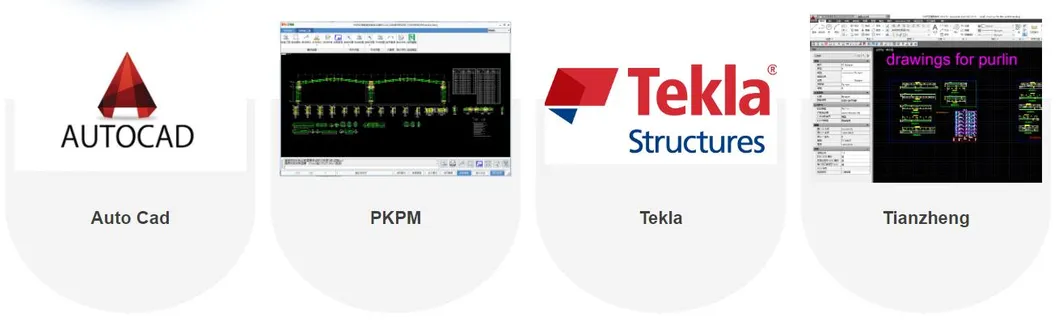

Design Software
Frequently Asked Questions
Q: Are you a professional manufacturing factory? A: Yes, we are a manufacturing factory. We maintain a strict quality control flow throughout the manufacturing process to ensure high-quality output and competitive pricing.
Q: How do you ensure the quality of the steel structures? A: We check products at all stages, including raw materials, in-process goods, and finished products. Third-party testing like SGS and BV is also available.
Q: Can you provide customized design services for my project? A: Yes, our design team can create full solution drawings including architectural and structural designs according to your specific requirements.
Q: Do you provide installation support for overseas clients? A: We provide detailed installation drawings and videos. We can also send engineers for on-site supervision and training if required.
Q: What factors are needed for a precise customization quote? A: We need information on local weather (wind speed, snow load, seismic rating), building size (L*W*H), and the intended purpose of the building.
Q: What is the expected service life of your steel buildings? A: Our steel structures are designed for durability, offering a service life typically ranging from 30 to 50 years depending on the environment and maintenance.
